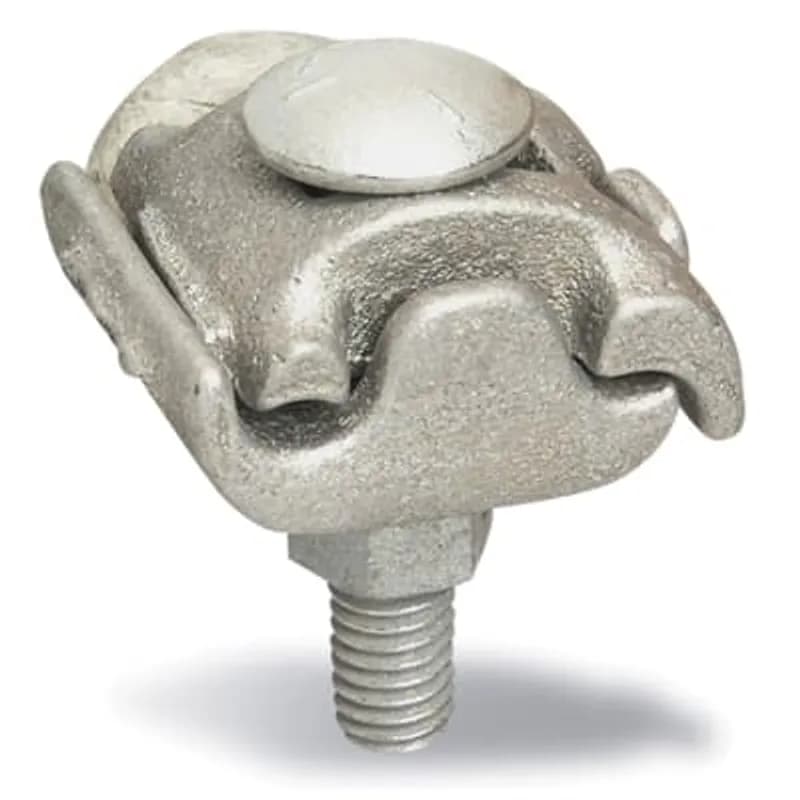

ABB - Installation Products PAA4-B1-5 - Aluminum Type PAA - One Bolt Aluminum Parallel Groove Clamp for Wire Range Main: 1/0-#6 ASCR 1/0 Str.-#6 Sol. AL/CU, Tap: 1/0-#6 ASCR 1/0 Str.-#6 Sol. ALCU

ABB Installation Products PAA4-B1-5 Aluminum Type PAA - One Bolt Aluminum Parallel Groove Clamp for Wire Range Main: 1/0-#6…

UPC: 783786070589

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Installation Products PAA4-B1-5 is a one-bolt aluminum parallel groove clamp designed for reliable electrical connections. Constructed from high-grade aluminum, this clamp ensures excellent conductivity and corrosion resistance, crucial for long-term performance in electrical infrastructure. The PAA4-B1-5 is engineered to accommodate a wide range of conductor sizes, making it a versatile solution for various applications. The main conductor range accepts ASCR from 1/0 AWG to #6 AWG, and stranded or solid aluminum or copper conductors from 1/0 AWG to #6 AWG. Similarly, the tap conductor range is specified for ASCR from 1/0 AWG to #6 AWG, and stranded or solid aluminum or copper conductors from 1/0 AWG to #6 AWG. This broad compatibility simplifies inventory and installation processes. The single-bolt design facilitates quick and secure installation, minimizing labor time and ensuring a consistent connection pressure. The PAA4 series, to which this clamp belongs, is recognized for its robust construction and dependable performance in overhead distribution and transmission systems, as well as industrial power applications. Its aluminum construction is specifically chosen for its compatibility with aluminum and copper conductors, preventing galvanic corrosion and maintaining electrical integrity. The SKU PAA4-B1-5 signifies a specific configuration within the PAA4 series, optimized for the specified wire ranges. This clamp is an essential component for ensuring the safety and efficiency of electrical networks, providing a secure and low-resistance connection point for power distribution. Its material composition and design are critical for maintaining signal integrity and preventing power loss over time. The UNSPSC code 39121449 further categorizes this product under electrical connectors and fittings, highlighting its role in electrical system assembly.
  • One-bolt aluminum parallel groove clamp
  • Main conductor range: 1/0-#6 ASCR, 1/0 Str.-#6 Sol. AL/CU
  • Tap conductor range: 1/0-#6 ASCR, 1/0 Str.-#6 Sol. AL/CU
  • Durable aluminum construction for corrosion resistance
  • ABB Installation Products PAA4 series

Specifications

Application
Securing Conductors
Conductor Range
Main: 4/0 to #2 ACSR , 4/0 STR , #2 SOL AL/CU. Tap: 4/0 to #2 ACSR , 4/0 STR , #2 SOL ALCU
Connection
Bolted
Environmental Conditions
All Seasons / Conditions
Insulation
None
Material
Aluminum
Mounting
None
Number Of Conductors
2
Size
Bolt Head 9/16 inch, Bolt Size 3/8 inch, Height 2-7/32 X Length 1-3/16 X Width 1-1/2 inch
Special Features
High-Strength, Heat-Treated Cast Aluminum Alloy provides Secure Connections. Galvanized Steel Carriage Bolt, Nut and Lockwasher included. Dual-Rated for use on Aluminum, ACSR and Copper Conductors
Type
Parallel-Groove Clamp
Package Dimensions (L x W x H)
5.25 IN x 4 IN x 0.01 IN
Package Dimensions (L x W x H)
13.335 cm x 10.16 cm x 0.0254 cm
Package Weight (Imperial)
0.1700 L
Package Weight (Metric)
0.0770 kg
The CCALTR2932-X Aluminum Trefoil Cable Cleat is ideal for medium to high short circuit faults in less corrosive environments. The cable cleat is certified to IEC 61914:2015, tested up to 114kA peak fault current and retains cables in the event of a short circuit fault. Compatible with cable diameter of 29-32mm and installs direct to the cable tray rung via fixing hole and user-supplied M8 bolt. Insulating spacers and washers sold separately for protection against galvanic corrosion.

CCALTR2932-X

The CCALTR2932-X Aluminum Trefoil Cable Cleat is ideal for medium to high short circuit faults in less corrosive environments. The cable cleat is certified to IEC 61914:2015, tested up to 114kA peak fault current and retains cables in the event of a short circuit fault. Compatible with cable diameter of 29-32mm and installs direct to the cable tray rung via fixing hole and user-supplied M8 bolt. Insulating spacers and washers sold separately for protection against galvanic corrosion.
All Purpose Split Bolt Connector 750 MCM All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.

N-750SP

All Purpose Split Bolt Connector 750 MCM All Purpose Split Bolt Connectors are used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. They have an electro-tinned body. UL listed for copper and copperweld wires only. Includes nut, spacer and pressure pad.
Insulated plastic cable staples for 2 and 3 wire NM cable up to #12, 2 wire UF cable up to #12, and other cable up to 1/2" wide. The staple is made of steel and plastic with molded plastic insulation. It is a nail-in construction and is white/silver as listed on the sheet.

IPS50BFG

Insulated plastic cable staples for 2 and 3 wire NM cable up to #12, 2 wire UF cable up to #12, and other cable up to 1/2" wide. The staple is made of steel and plastic with molded plastic insulation. It is a nail-in construction and is white/silver as listed on the sheet.
Clamp, Cable Insulator, Hole Diameter 2-3/8 Inch, Height 4-3/4 Inches, Width 4-1/4, White-Glaze Porcelain

C 755 5A

Clamp, Cable Insulator, Hole Diameter 2-3/8 Inch, Height 4-3/4 Inches, Width 4-1/4, White-Glaze Porcelain
Clamp, Cable Insulator, Hole Diameter 2-7/8 Inch, Height 4-3/4 Inches, Width 4-1/4, White-Glaze Porcelain

C 755 6A

Clamp, Cable Insulator, Hole Diameter 2-7/8 Inch, Height 4-3/4 Inches, Width 4-1/4, White-Glaze Porcelain
Clamp, Cable Insulator, Hole Diameter 1-3/8 Inch, Height 3-1/8 Inches, Width 2-5/8, White-Glaze Porcelain

C 755 3A

Clamp, Cable Insulator, Hole Diameter 1-3/8 Inch, Height 3-1/8 Inches, Width 2-5/8, White-Glaze Porcelain
Clamp, Cable Insulator, Hole Diameter 1-3/4 Inch, Clamp Size 2-5/8 Inch, Thermoplastic Elastomer with Electro-Galvanized Steel Clamp

C755 4TP

Clamp, Cable Insulator, Hole Diameter 1-3/4 Inch, Clamp Size 2-5/8 Inch, Thermoplastic Elastomer with Electro-Galvanized Steel Clamp
Clamp, Cable Insulator, Hole Diameter 2 Inch, Clamp Size 2-5/8 Inch, Thermoplastic Elastomer with Electro-Galvanized Steel Clamp

C755 4BTP

Clamp, Cable Insulator, Hole Diameter 2 Inch, Clamp Size 2-5/8 Inch, Thermoplastic Elastomer with Electro-Galvanized Steel Clamp
