ABB - Installation Products PAA339 - Aluminum Type PAA - One Bolt Aluminum Parallel Groove Clamp for Wire Range Main: 2-6 ASCR 1/0 Str.-6 Sol. AL/CU, Tap: 2-6 ASCR 1/0 Str.-6 Sol. ALCU
ABB - Installation Products

PAA339

UPC: 783786330072

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 250

Multiplier: 250

*Contact for lower quantities*

Overview

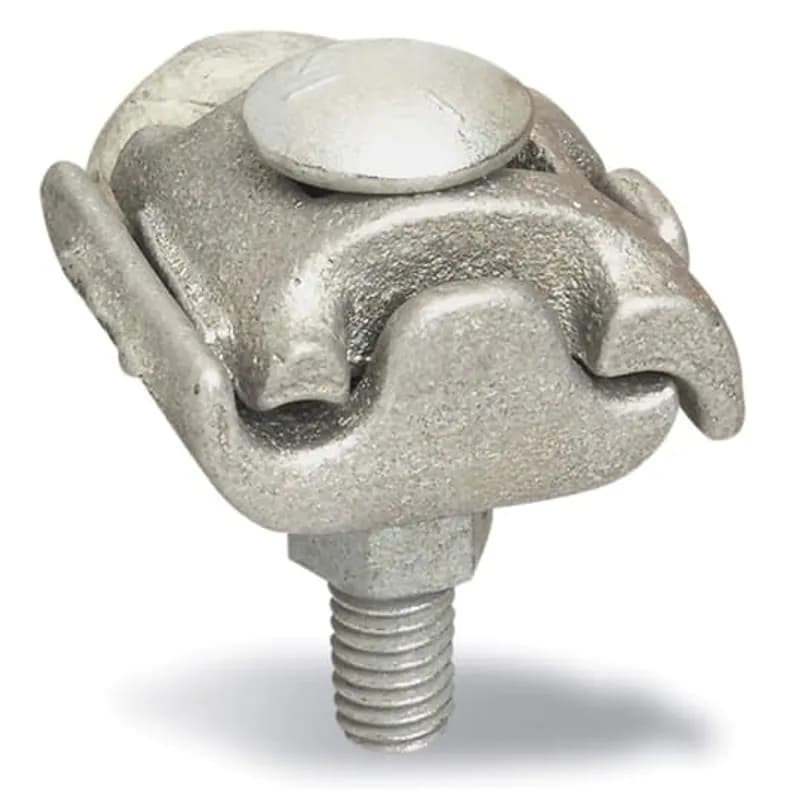

The ABB Installation Products PAA339 is a one-bolt aluminum parallel groove clamp engineered for secure, long-lasting electrical connections in overhead and underground power distribution systems. This clamp is specifically designed to accommodate a wide range of conductor sizes, supporting main conductors from 1/0 to 6 AWG stranded aluminum/copper (AL/CU) and tap conductors from 1/0 to 6 AWG solid aluminum/copper. The PAA339 is dual-rated for use with aluminum, ACSR (Aluminum Conductor Steel Reinforced), and copper conductors, making it a versatile solution for utility and industrial applications. Constructed from high-strength, heat-treated cast aluminum alloy, the PAA339 offers exceptional corrosion resistance and conductivity. Its pressure-cast aluminum body effectively seals out moisture, reducing the risk of galvanic corrosion between dissimilar metals. The clamp’s design separates conductors to minimize contact resistance, ensuring a stable and reliable electrical connection over time. The included galvanized steel carriage bolt, nut, and lockwasher provide secure clamping force, while the single-bolt installation simplifies assembly and maintenance. The PAA339 is ideal for splicing and terminating conductors in power distribution networks, substations, and industrial facilities. Its compact dimensions (9/16" bolt size, 1 9/16" height, 1 1/4" width, 1 1/2" length) make it suitable for tight spaces, and its robust construction ensures durability in harsh environmental conditions. For enhanced protection against oxidation in copper-to-aluminum connections, the PAA339 is available prefilled with oxide inhibitor. This product is part of ABB’s Blackburn series, a trusted name in electrical connectors and grounding solutions.
  • One-bolt design for easy installation and secure clamping
  • Dual-rated for aluminum, ACSR, and copper conductors
  • High-strength cast aluminum alloy resists corrosion and moisture
  • Supports main conductors: 1/0-6 AWG stranded AL/CU, tap conductors: 1/0-6 AWG solid AL/CU
  • Includes galvanized steel bolt, nut, and lockwasher

Specifications

Application
Securing Conductors
Conductor Range
Main: #2 to #6 ACSR , 1/0 STR , #6 SOL AL/CU. Tap: #2 to #6 ACSR , 1/0 STR , #6 SOL ALCU
Connection
Bolted
Environmental Conditions
All Seasons / Conditions
Insulation
None
Material
Aluminum
Mounting
None
Number Of Conductors
2
Size
Bolt Head 9/16 inch, Bolt Size 3/8 inch, Height 1-9/16 X Length 1-1/4 X Width 1-1/2 inch
Special Features
High-Strength, Heat-Treated Cast Aluminum Alloy provides Secure Connections. Galvanized Steel Carriage Bolt, Nut and Lockwasher included. Dual-Rated for use on Aluminum, ACSR and Copper Conductors
Type
Parallel-Groove Clamp
Package Dimensions (L x W x H)
7.5 IN x 4.19 IN x 5.4 IN
Package Dimensions (L x W x H)
19.05 cm x 10.6426 cm x 13.716 cm
Package Weight (Imperial)
0.1500 L
Package Weight (Metric)
0.0680 kg
Aluminum Type PAE - Parallel Groove Clamp, Extruded Type for Wire Range Main: 1000 kcmil-397.5, ACSR 336.4-2/ AR Tap: 1000 kcmil-397.5, ACSR 336.4-2/0 AR

PAE9999-9

Aluminum Type PAE - Parallel Groove Clamp, Extruded Type for Wire Range Main: 1000 kcmil-397.5, ACSR 336.4-2/ AR Tap: 1000 kcmil-397.5, ACSR 336.4-2/0 AR
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.

AS-K1-H6

Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
Aluminum splice, type SA, tin plated, 500 kcmil.

SA500-2

Aluminum splice, type SA, tin plated, 500 kcmil.
Aluminum Parallel Groove Clamp - One Bolt - Conductor material ACSR 1/0 AWG - ACSR/Copper/Aluminum 6 AWG

PAA1093

Aluminum Parallel Groove Clamp - One Bolt - Conductor material ACSR 1/0 AWG - ACSR/Copper/Aluminum 6 AWG
Aluminum Type PAA - One Bolt Aluminum Parallel Groove Clamp for Wire Range Main: 336.4-1/0, 1/0-6 AR ASCR 400-1/0 Str., 1/0-6 AR AL/CU, Tap: 1/0-8 ASCR 1/0 Str.-8 Sol. ALCU, Prefilled with Oxide Inhibitor.

PAA109

Aluminum Type PAA - One Bolt Aluminum Parallel Groove Clamp for Wire Range Main: 336.4-1/0, 1/0-6 AR ASCR 400-1/0 Str., 1/0-6 AR AL/CU, Tap: 1/0-8 ASCR 1/0 Str.-8 Sol. ALCU, Prefilled with Oxide Inhibitor.
Aluminum Type PAA - Two Bolt Aluminum Parallel Groove Clamp for Wire Range Main: 336.4-1/0, 1/0-6 AR ASCR 400-1/0 Str., 1/0-6 AR AL/CU, Tap: 336.4-1/0 ASCR 400-1/0 Str. ALCU

PAA400

Aluminum Type PAA - Two Bolt Aluminum Parallel Groove Clamp for Wire Range Main: 336.4-1/0, 1/0-6 AR ASCR 400-1/0 Str., 1/0-6 AR AL/CU, Tap: 336.4-1/0 ASCR 400-1/0 Str. ALCU
Aluminum Type PAA - Two Bolt Aluminum Parallel Groove Clamp for Wire Range Main: 336.4-1/0, 1/0-6 AR ASCR 400-1/0 Str., 1/0-6 AR AL/CU, Tap: 336.4-1/0 ASCR 400-1/0 Str. ALCU, Prefilled with Oxide Inhibitor.

PAA4009

Aluminum Type PAA - Two Bolt Aluminum Parallel Groove Clamp for Wire Range Main: 336.4-1/0, 1/0-6 AR ASCR 400-1/0 Str., 1/0-6 AR AL/CU, Tap: 336.4-1/0 ASCR 400-1/0 Str. ALCU, Prefilled with Oxide Inhibitor.
Aluminum Type PAA - One Bolt Aluminum Parallel Groove Clamp for Wire Range Main: 1/0-8 ASCR 2/0 Str.-8 Sol. AL/CU, Tap: 1/0-8 ASCR 2/0 Str.-8 Sol. ALCU, Prefilled with Oxide Inhibitor.

PAA69

Aluminum Type PAA - One Bolt Aluminum Parallel Groove Clamp for Wire Range Main: 1/0-8 ASCR 2/0 Str.-8 Sol. AL/CU, Tap: 1/0-8 ASCR 2/0 Str.-8 Sol. ALCU, Prefilled with Oxide Inhibitor.

Frequently Asked Questions

What is the bolt size for the PAA339 clamp?

The PAA339 clamp uses a 3/8 in bolt.

What conductor types are compatible with PAA339?

The PAA339 clamp is dual-rated for use on aluminum, ACSR, and copper conductors.

What is the conductor range for the PAA339 clamp?

The PAA339 clamp accommodates ACSR and AL/CU conductors from 1/0 to #6 (stranded or solid).

What are the min and max conductor diameters for PAA339?

The PAA339 clamp accepts conductors with a maximum diameter of 0.398 in and a minimum diameter of 0.162 in.

Does the PAA339 clamp include installation hardware?

Yes, the PAA339 clamp includes a galvanized steel carriage bolt, nut, and lockwasher.

What are the physical dimensions of the PAA339 clamp?

The PAA339 clamp has dimensions of F: 9/16 in, H: 1 9/16 in, L: 1 1/4 in, and W: 1 1/2 in.

What material is the PAA339 clamp made from?

The PAA339 clamp is made from high-strength, heat-treated cast aluminum alloy.

What is the bolt size for the PAA339 clamp?

The PAA339 clamp uses a 3/8 in bolt.

What are the physical dimensions of the PAA339 clamp?

The PAA339 clamp has dimensions of F: 9/16 in, H: 1 9/16 in, L: 1 1/4 in, and W: 1 1/2 in.

Does the PAA339 clamp include installation hardware?

Yes, the PAA339 clamp includes a galvanized steel carriage bolt, nut, and lockwasher.
