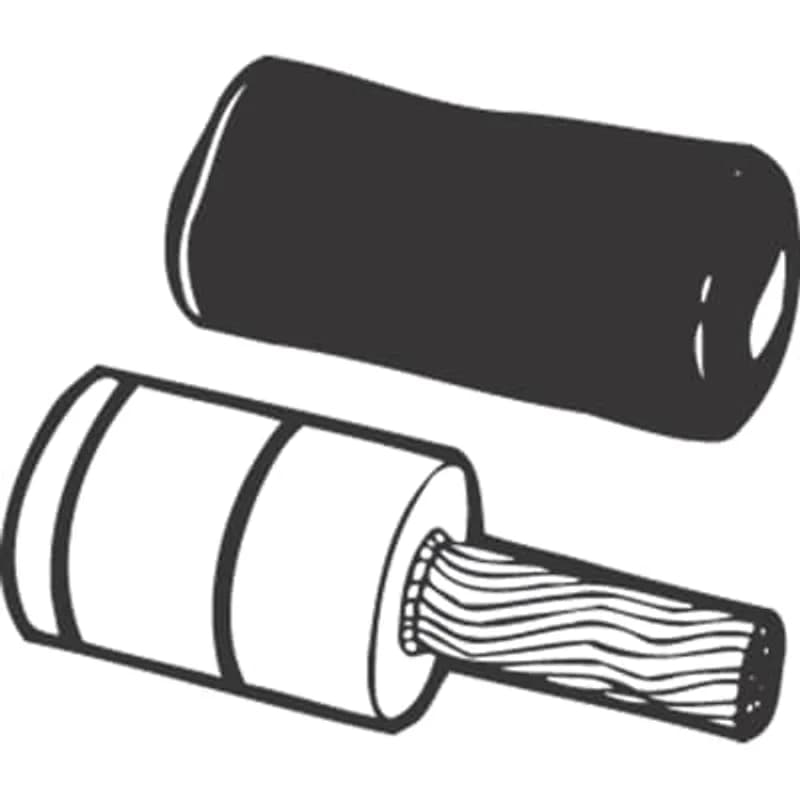

UPC: 783786134083
Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Overview
- Wire size capacity: 250 kcmil
- Material: Aluminum with tin-plated finish
- Die color code: Brown for quick identification
- Connection type: Pin adapter for secure terminations
- Suitable for copper wire only (per ABB installation guidelines)
Specifications
Cable Size | 250 kcmil |
Color | Brown |
Connection Type | Pin Adapter Terminal |
Material | Aluminum |
Size | 250 kcmil |
Special Features | Connector for aluminum conductor only. Pigtail may be inserted into either aluminum or copper connectors |
Standard | UL E63167 |
Type | Aluminum Pin Terminal |
Package Dimensions (L x W x H) | 6.75 IN x 5.25 IN x 3.7 IN |
Package Dimensions (L x W x H) | 17.145 cm x 13.335 cm x 9.398 cm |
Package Weight (Imperial) | 0.4000 L |
Package Weight (Metric) | 0.1810 kg |
13682
Die for 12 Ton 13400 or 13642M Hydrualic Tool for Crimping 204210MT Dragon Tooth Terminals, Brown. .301/.289 Gaging
RDC1/0
Ratchet Drive Crimping Tool APPLICATIONS: Ratchet Drive Crimping Tool is for non-insulated terminals from 6 to 1/0 AWG and insulated terminals from 22 to 8 AWG. Rugged, compact, and lightweight. Requires minimum effort due to ratchet action, ensuring an excellent crimp every time. FEATURES: TYPE: Insulated and Uninsulated ACTION: Ratchet INSULATED USE: Terminals 22 to 8 AWG NON-INSULATED USE: Terminals 6 to 1/0 AWG MANUFACTURER: NSi Industries PART NUMBER: RDC 1/0 UPC: 662381055309
CD6A
U-Type Compression Die - Pink 1/0 AWG Copper - 2 AWG Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
F4-PS-W-NP
Non-Insulated Parallel Splice Connector For Wire Range #4 AWG, Circular Mil Range 33,100-52,600, Length 0.531 Diameter 0.41, Nickel Plated
AS-K1-H6
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
1SNK705010R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
1SNK705030R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
E989NNJ-5-HD
Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray
How to Install the Thomas & Betts PA25 Pin Adapter
This guide provides step-by-step instructions for safely installing the PA25 Pin Adapter, designed for terminating 250 MCM stranded aluminum conductors with a copper pig-tail into mechanical connectors.
Estimated time: 45m
Tools needed:
Crimping tool (with appropriate dies for PA25, e.g., T&B 87H or Burndy 299), Wire strippers, Wire brush, Torque wrench or screwdriver
Supplies needed:
PA25 Pin Adapter, 250 MCM stranded aluminum conductor, Mated insulating cover (supplied with adapter), Mechanical connector (Al-Cu listed or copper-only suitable)
- Disconnect Power and Select Adapter
WARNING: Disconnect all power to the electrical equipment before beginning installation to prevent risk of shock. Select the PA25 Pin Adapter, ensuring it is marked for 250 MCM aluminum wire size.
- Prepare Aluminum Conductor
Bend the 250 MCM aluminum cable to fit properly within the equipment before attaching the Pin Adapter. Strip 1.375 inches of insulation from the aluminum conductor. Exercise caution to avoid nicking or ringing the conductor strands. Thoroughly scratch brush the stripped portion of the aluminum conductor to remove any oxide film.
- Crimp the Pin Adapter
Fully insert the prepared aluminum conductor into the compression barrel of the PA25 Pin Adapter. Using a crimping tool equipped with the correct die (e.g., T&B Die Code 87H or Burndy Die Index 299, BROWN color code), make two adjacent crimps between the knurl or ink marks on the adapter. Ensure to use circumferential or hex dies and compress from the base of the socket towards the cable. Remove any excess inhibitor or flash after crimping.
- Install Insulating Cover and Verify Clearances
Slip the mated insulating cover completely over the compression barrel of the installed Pin Adapter. Verify that the mated insulating cover's diameter does not interfere with any part of the equipment. Ensure that the electrical spacing is maintained: more than 1/4" for 300V or less, and more than 1/2" for 301-600V. Confirm that the use of the Pin Adapter does not reduce the minimum wire bending space required by the National Electrical Code.
- Connect Copper Pig-Tail to Equipment
Insert the factory-installed copper pig-tail of the PA25 Pin Adapter fully into the mechanical connector body of the electrical equipment. Tighten the connector's set screw to the equipment manufacturer’s recommended torque. If no specific torque is provided, tighten to 250 inch-lbs.
