ABB - Installation Products PA02 - Aluminum Pin Adapter Terminal, Wire Size 2 Str, Tin Plated, Die Color Code N/A
More images

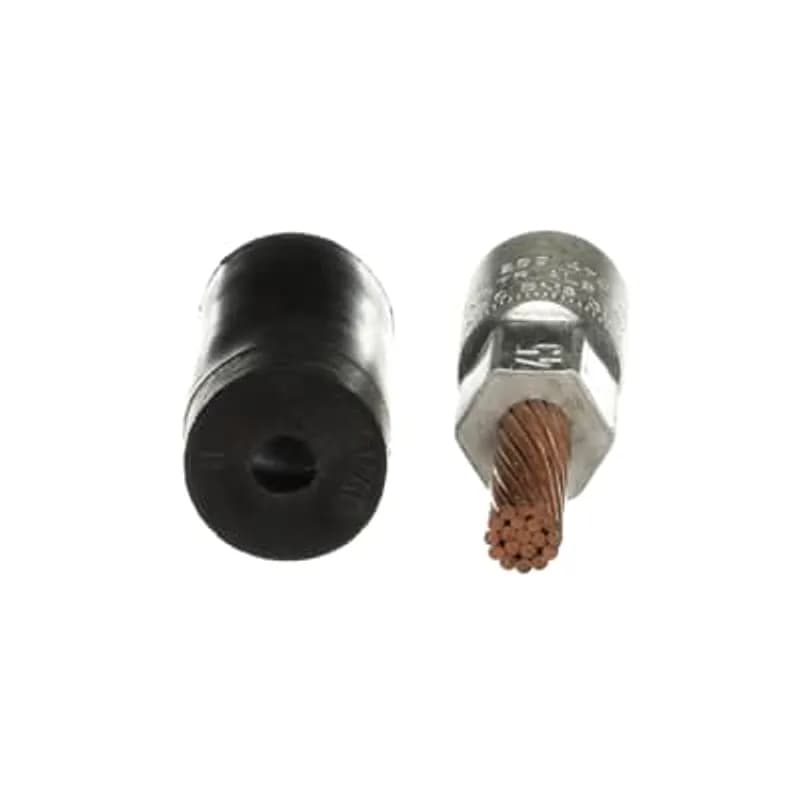

ABB Installation Products PA02 Aluminum Pin Adapter Terminal, Wire Size 2 Str, Tin Plated, Die Color Code N/A

UPC: 783786134021


Documents & Media
Installation InstructionsSpecification SheetVideo ClipManufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB PA02 is an aluminum pin adapter terminal designed for connecting aluminum conductors. This terminal features a tin-plated aluminum barrel pre-filled with an oxide inhibitor and capped for reliable electrical contact. The pigtail is constructed from tin-plated stranded copper wire, allowing it to be inserted into either aluminum or copper connectors. Rated for 90° C per UL® 486B, the PA02 is suitable for industrial applications requiring secure wire terminations. Key Specifications: * Manufacturer: ABB Installation Products * SKU: PA02 * Conductor Size: #2 Str. AWG (Aluminum only) * Copper Stud Size: 4 * Barrel Material: Tin-plated aluminum * Pigtail Material: Tin-plated stranded copper wire * Temperature Rating: 90° C per UL® 486B * Dimensions (In.): A=1/4", B=1 1/32", O.D.=.640" * Oxide Inhibitor: Pre-filled in barrel * Insulating Covers: Included This terminal is ideal for use in control panels, junction boxes, and automation systems where aluminum conductors need to be terminated and connected to copper systems. The PA02 simplifies wiring configurations for OEMs and panel builders, ensuring electrical integrity and long-term performance. UNSPSC Code: 39121405.
  • Connector for aluminum conductor only
  • Tin-plated stranded copper wire pigtail for versatility
  • Tin-plated aluminum barrel pre-filled with oxide inhibitor
  • 90° C rating per UL® 486B
  • Supports #2 Str. AWG aluminum conductors

Specifications

Cable Size
2 AWG
Connection Type
Pin Adapter
Connection Type
Adapter Terminal
Material
Aluminum
Material
Aluminum, tin plated
Size
2 Str
Size
2 Stranded Wire
Special Features
Connector for aluminum conductor only. Pigtail may be inserted into either aluminum or copper connectors
Standard
UL E63167
Stud Size
#4
Type
Aluminum Pin Terminal
Package Dimensions (L x W x H)
6.8 IN x 5.3 IN x 3.7 IN
Package Dimensions (L x W x H)
17.272 cm x 13.462 cm x 9.398 cm
Package Weight (Imperial)
0.0800 L
Package Weight (Metric)
0.0360 kg
15 Ton Hex Die, 125H, Stainless Steel

15603SS

15 Ton Hex Die, 125H, Stainless Steel
Die for 12 Ton 13400 or 13642M Hydrualic Tool for Crimping 210214MT Dragon Tooth Terminals

13681

Die for 12 Ton 13400 or 13642M Hydrualic Tool for Crimping 210214MT Dragon Tooth Terminals
HYD POWER TOOL FOR CRIMPING RD-RM

13642M

HYD POWER TOOL FOR CRIMPING RD-RM
Mechanical Crimp Tool with 5/8 Inch Nose Die APPLICATIONS: The Mechanical Crimp Tool is designed for use with wide range and H-Tap connectors. It has fiberglass handles and comes with Nose Dies. It has an output of 4.5 tons.

OD58

Mechanical Crimp Tool with 5/8 Inch Nose Die APPLICATIONS: The Mechanical Crimp Tool is designed for use with wide range and H-Tap connectors. It has fiberglass handles and comes with Nose Dies. It has an output of 4.5 tons.
Non-Insulated Parallel Splice Connector For Wire Range #4 AWG, Circular Mil Range 33,100-52,600, Length 0.531 Diameter 0.41, Nickel Plated

F4-PS-W-NP

Non-Insulated Parallel Splice Connector For Wire Range #4 AWG, Circular Mil Range 33,100-52,600, Length 0.531 Diameter 0.41, Nickel Plated
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.

AS-K1-H6

Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.

1SNK705010R0000

Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.

1SNK705030R0000

Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray

E989NNJ-5-HD

Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray
PVC Coated Junction Box, 12 Inch X 12 Inch X 6 Inch, 14 Gauge, Gray

A1212SC-G

PVC Coated Junction Box, 12 Inch X 12 Inch X 6 Inch, 14 Gauge, Gray

Frequently Asked Questions

Is the PA02 terminal tin-plated?

Yes, the PA02 terminal features tin plating for improved corrosion resistance and electrical conductivity.

What wire sizes does the PA02 support?

The PA02 supports two-strand wire configurations as specified in the catalog description.

Is the PA02 suitable for harsh environments?

The aluminum construction and tin plating of the PA02 provide corrosion resistance, making it suitable for industrial environments.

How to Install the PA02 Pin Adapter

This guide provides step-by-step instructions for safely installing the PA02 Pin Adapter, designed to reliably terminate #2 AWG stranded aluminum conductors into mechanical connectors suitable for #4 AWG copper wire.

Estimated time: 15m

Tools needed:

Wire strippers, Wire brush, Crimping tool, Appropriate crimping dies (e.g., T&B Die Code 50 or Burndy Die Index BG/243), Screwdriver or wrench

Supplies needed:

PA02 Pin Adapter, #2 AWG stranded aluminum conductor, Mechanical connector (equipment lug)

  1. Prepare for Installation and Verify Compatibility

    WARNING: RISK OF SHOCK, DISCONNECT POWER BEFORE INSTALLATION. Select the PA02 Pin Adapter, ensuring it is suitable for #2 AWG aluminum wire and #4 AWG copper wire. Verify that the copper pig-tail length is sufficient for the equipment connector. Confirm that the mated insulating cover diameter and the overall Pin Adapter dimensions allow for proper clearance and wire bending space within the electrical equipment, adhering to National Electrical Code requirements.

  2. Prepare Conductor and Crimp Adapter

    Strip the aluminum conductor insulation to a length of 1 inch, ensuring not to nick or ring the conductor strands. Thoroughly scratch brush the stripped aluminum conductor to remove any oxide film. Insert the aluminum conductor fully into the compression barrel of the Pin Adapter. Select the correct crimping tool and die (e.g., T&B Die Code 50 or Burndy Die Index BG/243 for PA02). Crimp the connector, making the required number of crimps between the knurl or ink marks, compressing from the base of the socket toward the cable. Remove any flash and excess inhibitor.

  3. Install Insulating Cover and Connect to Equipment

    Slip the insulating cover completely over the compression barrel of the Pin Adapter to ensure minimum electrical spacing is maintained. Insert the copper pig-tail fully into the equipment's mechanical connector body. Tighten the set screw to the equipment manufacturer’s recommended torque. If no specific torque recommendation is provided, tighten to 50 inch-lbs for the PA02 adapter.
