ABB - Installation Products PA01 - Aluminum Pin Adapter Terminal, Wire Size 1 Str, Tin Plated, Die Color Code N/A
More images

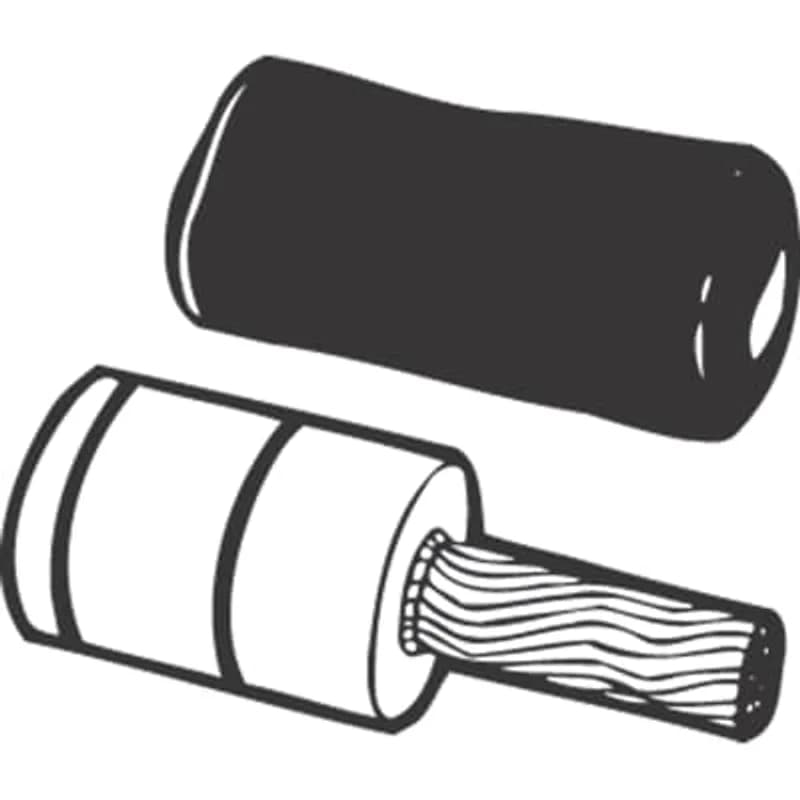

ABB Installation Products PA01 Aluminum Pin Adapter Terminal, Wire Size 1 Str, Tin Plated, Die Color Code N/A

UPC: 783786134038


Documents & Media
Installation InstructionsSpecification SheetVideo ClipManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB PA01 Aluminum Pin Adapter Terminal, SKU PA01, is engineered for secure electrical terminations in industrial settings. This terminal is designed to accommodate 1-strand wire, ensuring reliable connections within control panels, machinery, and various industrial systems. Its aluminum construction provides a lightweight yet durable solution, while the tin-plated finish enhances conductivity and offers protection against corrosion, making it suitable for demanding environments. The PA01 facilitates low-resistance connections, crucial for applications experiencing vibration or elevated temperatures. As part of ABB Installation Products' offering, this terminal ensures dependable electrical terminations. Its UNSPSC code is 39121405, classifying it within electrical supplies and components.
  • Aluminum construction for durability and light weight
  • Tin-plated for enhanced conductivity and corrosion resistance
  • Designed for 1-strand wire
  • Suitable for industrial control panels and machinery
  • Low-resistance connection capability

Specifications

Connection Type
Pin Adapter Terminal
Connection Type
Pin Adapter
Material
Aluminum
Material
Tin-plated Aluminum
Size
1 Str
Size
1-strand
Size
1 Stranded Wire
Special Features
Pin Adapter
Standard
UL E63167
Stud Size
#3
Type
Aluminum Pin Terminal
Package Dimensions (L x W x H)
4.35 IN x 3.25 IN x 2.95 IN
Package Dimensions (L x W x H)
11.049 cm x 8.255 cm x 7.493 cm
Package Weight (Imperial)
0.1300 L
Package Weight (Metric)
0.0590 kg
15 Ton Hex Die, 125H, Stainless Steel

15603SS

15 Ton Hex Die, 125H, Stainless Steel
HYD POWER TOOL FOR CRIMPING RD-RM

13642M

HYD POWER TOOL FOR CRIMPING RD-RM
Die for 12 Ton 13400 or 13642M Hydrualic Tool for Crimping 210214MT Dragon Tooth Terminals

13681

Die for 12 Ton 13400 or 13642M Hydrualic Tool for Crimping 210214MT Dragon Tooth Terminals
Hand Tool (Plier-Type) for Installing A, B, C, PT Non-insulated Terminals and Splices, Includes Plier Grip and Wire Cutter

WT161M

Hand Tool (Plier-Type) for Installing A, B, C, PT Non-insulated Terminals and Splices, Includes Plier Grip and Wire Cutter
Non-Insulated Parallel Splice Connector For Wire Range #4 AWG, Circular Mil Range 33,100-52,600, Length 0.531 Diameter 0.41, Nickel Plated

F4-PS-W-NP

Non-Insulated Parallel Splice Connector For Wire Range #4 AWG, Circular Mil Range 33,100-52,600, Length 0.531 Diameter 0.41, Nickel Plated
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.

AS-K1-H6

Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.

1SNK705010R0000

Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.

1SNK705030R0000

Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray

E989NNJ-5-HD

Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray
PVC Coated Junction Box, 12 Inch X 12 Inch X 6 Inch, 14 Gauge, Gray

A1212SC-G

PVC Coated Junction Box, 12 Inch X 12 Inch X 6 Inch, 14 Gauge, Gray

Frequently Asked Questions

What wire size does the PA01 support?

The PA01 supports 1-strand wire sizes, as specified in the catalog description.

Is the PA01 terminal tin-plated?

Yes, the PA01 terminal is tin-plated for enhanced corrosion resistance and conductivity.

How to Install the Pin Adapter (Type PA) for Aluminum Conductors

This guide provides step-by-step instructions for safely installing the Pin Adapter (Type PA) with stranded aluminum conductors into mechanical connectors, ensuring proper termination and electrical spacing.

Tools needed:

Wire brush, Wire strippers, Crimping tool with appropriate dies, Screwdriver, Torque wrench

Supplies needed:

Pin Adapter (Type PA), Stranded aluminum conductor, Mated insulating cover, Mechanical equipment connector

  1. Disconnect Power

    WARNING: Disconnect all power to the electrical equipment before beginning installation to prevent risk of electrical shock.

  2. Select Pin Adapter and Verify Compatibility

    Select the Pin Adapter (Type PA) that matches your aluminum wire size. Verify the copper pig-tail length, mated insulating cover diameter, and wire bending space within the equipment connector to ensure physical compatibility and compliance with NEC Table 312.6(A) requirements.

  3. Prepare Conductor

    Bend the aluminum cable to fit the equipment. Strip the insulation from the aluminum conductor to the length specified in column 'A' of the 'Catalog and Specification Information' table (e.g., 1 inch for PA01), ensuring not to nick or ring the conductor strands. Thoroughly scratch brush the stripped aluminum conductor to remove any oxide film.

  4. Crimp Pin Adapter

    Insert the prepared aluminum conductor fully into the compression barrel of the Pin Adapter. Using the appropriate crimping tool and die (e.g., T&B Die Code 50 or Burndy Die Index BG/243 for PA01), make the required number of crimps between the knurl or ink marks. Compress from the base of the socket towards the cable, then remove any flash or excess inhibitor.

  5. Install Insulating Cover

    Slip the provided insulating cover completely over the compression barrel of the installed Pin Adapter. Ensure the cover is fully seated to maintain minimum electrical spacing.

  6. Connect Pig-tail

    Insert the copper pig-tail fully into the mechanical equipment connector body. Tighten the set screw to the equipment manufacturer's recommended torque. If no specific torque is provided, tighten to the recommended values from the 'Catalog and Specification Information' table (e.g., 50 inch-lbs for screwdriver or 125 inch-lbs for wrench for PA01).
