ABB - Installation Products OB 2014 - Aluminum H-Type Compression Connectors, length 3-1/4 inch, die O.
More images

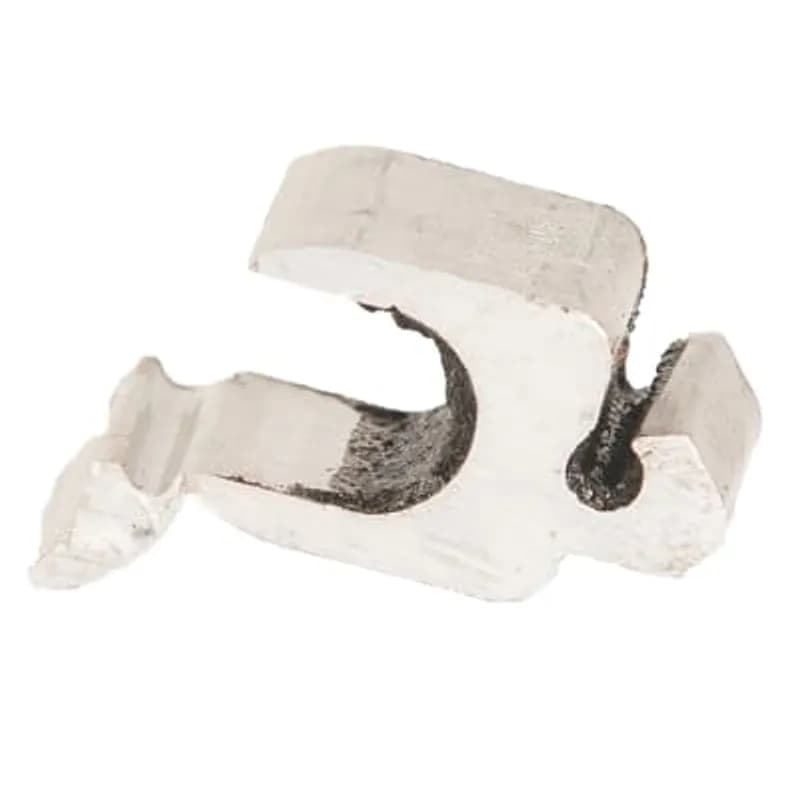

ABB Installation Products OB 2014 Aluminum H-Type Compression Connectors, length 3-1/4 inch, die O.

UPC: 783786740499

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB OB 2014 is an aluminum H-type compression connector designed for secure, long-lasting electrical connections in industrial and commercial applications. Manufactured by ABB Installation Products, this connector measures 3-1/4 inches in length and is compatible with die O for compression tooling. Its aluminum construction provides a lightweight yet durable solution for joining conductors in power distribution systems, control panels, and electrical enclosures. This connector is ideal for applications requiring reliable, low-resistance connections in environments with moderate mechanical stress. The H-type design ensures proper alignment and compression of conductors, reducing the risk of loosening or electrical faults over time. It is commonly used in wiring systems where aluminum conductors are specified, such as in utility installations, renewable energy projects, and industrial machinery. The OB 2014 is part of ABB’s Installation Products line, which is trusted for its compatibility with standard compression tools and adherence to industry specifications. This connector is designed to meet the mechanical and electrical requirements of typical electrical installations, providing a cost-effective solution without compromising performance.
  • Material: Aluminum construction for lightweight durability
  • Length: 3-1/4 inches for standard installation compatibility
  • Die Compatibility: Designed for use with die O compression tooling
  • Application: Suitable for power distribution, control panels, and electrical enclosures
  • Manufacturer: ABB Installation Products (SKU: OB 2014)

Specifications

Application
Used to Dead End Aluminum, ACSR or Aluminum Alloy Conductors
Connection
Compression
Environmental Conditions
All Seasons / Conditions
Finish
Uncoated
Housing Material
Aluminum
Housing Material
Aluminium
Insulation
None
Mounting
None
Number Of Conductors
2
Size
3/4 inch Length
Special Features
Pre-filled with oxide inhibitor to prevent oxidation and keep out moisture. Connectors Fully Marked with Installation and Compression location Information, providing easy Identification for easy Installation
Standard
RUS Accepted. Complies with ANSI C119.4 Specifications
Temperature Rating, Maximum
194 F
Temperature Rating, Maximum
90 C
Temperature Rating, Minimum
194 F
Temperature Rating, Minimum
90 C
Type
H-Type Compression Tap Connector
Wire Size
Main: 2/0 to #2 ACSR/STR AWG , Tap: #8 to #14 STR or #7 to #14 SOL AWG .064 to .146 in
Package Dimensions (L x W x H)
2.25 IN x 5 IN x 9.75 IN
Package Dimensions (L x W x H)
5.715 cm x 12.7 cm x 24.765 cm
Package Weight (Imperial)
0.0400 L
Package Weight (Metric)
0.0180 kg
