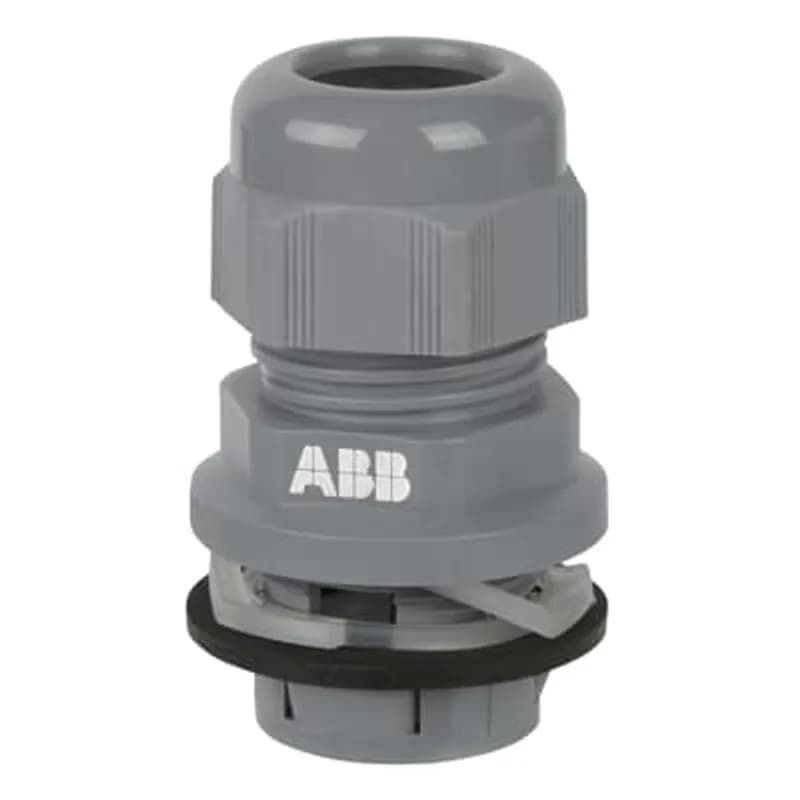

ABB - Installation Products NPG-M201G - Quick Connect Cable Gland, Thread Size M20, Cable Range 6 to 12mm, Thread Length 9mm, Nylon, Grey

ABB Installation Products NPG-M201G Quick Connect Cable Gland, Thread Size M20, Cable Range 6 to 12mm, Thread Length 9mm…

UPC: 786210137926


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB NPG-M201G is a grey nylon quick connect cable gland designed for efficient and secure cable entry. Featuring an M20 thread size, this gland accommodates cables with a diameter ranging from 6 to 12mm, ensuring a tight seal for various electrical installations. The nylon construction provides good chemical resistance and electrical insulation properties, making it suitable for a range of industrial environments. The quick connect feature simplifies installation, reducing assembly time and labor costs. With a thread length of 9mm, it offers sufficient engagement for secure mounting in enclosures and panels. This gland is part of ABB's Installation Products range, known for reliability and performance. The NPG series designation indicates its specific design and application focus. The grey color offers a neutral aesthetic for integration into different panel designs. This product is ideal for applications requiring reliable cable management and environmental protection for electrical connections. Its straightforward design and material properties make it a practical choice for electricians and panel builders seeking efficient and durable cable gland solutions. SKU: NPG-M201G. UNSPSC Code: 39121431.
  • ABB NPG-M201G Quick Connect Cable Gland
  • Material: Nylon
  • Color: Grey
  • Thread Size: M20
  • Cable Range: 6mm to 12mm

Specifications

Application
General purpose, Ideal for Panel building and Volume Installers
Color
Gray
Conductor Range
6 to 12 Millimeters
Material Quality
Nylon
Operating Temperature, Maximum
212 F
Operating Temperature, Maximum
100 C
Operating Temperature, Minimum
-4 F
Operating Temperature, Minimum
-20 C
Size
M20
Standard
cULus, RoHS, WEEE, LVD
Type
Quick Connect Cable Gland
Package Dimensions (L x W x H)
7.09 IN x 3.54 IN x 3.54 IN
Package Dimensions (L x W x H)
18.0086 cm x 8.9916 cm x 8.9916 cm
Package Weight (Imperial)
0.0100 L
Package Weight (Metric)
0.0050 kg
Quick Connect Cable Gland, Thread Size 1/2 Inch NPT, Cable Range 6 to 12mm, Thread Length 9mm, Nylon, Light Grey

NPG-0501LG

Quick Connect Cable Gland, Thread Size 1/2 Inch NPT, Cable Range 6 to 12mm, Thread Length 9mm, Nylon, Light Grey
Dome Cap Cable Gland, gray, Polyamide, 1/2" NPT, cable range .23 - .47

RD13NA-GY

Dome Cap Cable Gland, gray, Polyamide, 1/2" NPT, cable range .23 - .47
.75-NPT, Plastic Gland, Gray, 0.512 - 0.708

PCG-3/4

.75-NPT, Plastic Gland, Gray, 0.512 - 0.708
EP-SG-PG42-GR-A

1SNG601230R0000

EP-SG-PG42-GR-A
Cable gland, M20, gray, 2 pack for Streamline modular

K77700416

Cable gland, M20, gray, 2 pack for Streamline modular
Gland plate Gray for 5.06 x 1.5 opening - Steel/Gray

GP063GY

Gland plate Gray for 5.06 x 1.5 opening - Steel/Gray
Membrane Cable Grip

FEM 10-14/25

Membrane Cable Grip
MA5-3007 Cabel gland PG 16

MA5-3007

MA5-3007 Cabel gland PG 16

Frequently Asked Questions

Where can I find information on chemical resistance?

Information regarding chemical resistance can be found in publication TDS000081.

What are the key features of the NPG Quick-Connect cable gland?

It is a single-piece, corrosion-resistant gland that is fast and simple to install without needing access to the inside of an enclosure. It also has a low internal profile.

What is the operating temperature range for this cable gland?

For normal use, the working temperature is -20°C to +100°C (-4°F to 212°F). Short-term use allows for -30°C to +150°C (-22°F to +302°F).

What is the ingress protection rating of the NPG cable gland?

The cable gland has an ingress protection rating of IP66 and IP68 (5 bar for 30 minutes).

What material is the NPG cable gland made from?

The cable gland is constructed from halogen-free nylon (PA6) and features chloroprene seals.

What colors are available for the NPG cable glands?

The NPG cable glands are available in Black, Grey, and Light Grey.

What certifications does the NPG cable gland conform to?

It conforms to UL514B/CSA C22.2 No 18.3, EN 62444, RoHS, WEEE, and LVD directives.

What is the cable range for the NPG-M201x model?

The NPG-M201x model is suitable for cables with a diameter range of 6.0 mm to 12.0 mm (0.236 in to 0.472 in).

What is the required hole size for installing the NPG-M201x?

The required hole size for the NPG-M201x is between 20.2 mm and 20.4 mm (0.795 in to 0.803 in).

What wall thickness is compatible with NPG cable glands?

The NPG cable glands are compatible with wall thicknesses ranging from 0.5 mm to 4.0 mm (0.020 in to 0.157 in).
