Contact for Pricing
Minimum Qty: 8
Multiplier: 8
*Contact for lower quantities*
Overview
- UL 50-listed and meets NEMA Type 4X, IP66 for dust, water, and corrosion resistance

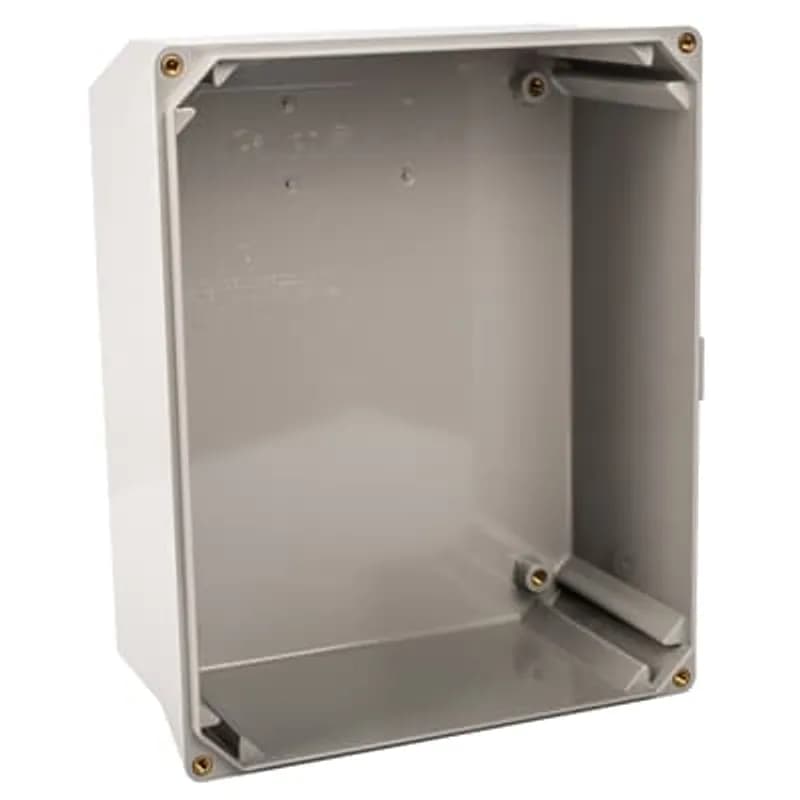

- 10" x 8" x 6" (254 x 203 x 152mm) polycarbonate enclosure with transparent lid
- High-impact strength (3x stronger than fiberglass) with UV-resistant F1 rating
- Operating temperature range: -40°F to 185°F (-40°C to 85°C)
- Includes mounting feet, hinge caps, and screws; back panels sold separately
Specifications
Application | Septic and pump controls |
Material | Polycarbonate |
Material Quality | Polycarbonate |
Special Features | 100% non-metallic construction, including hinges |
Standard | UL E88685 |
Standard | UL E88685 / UL E88685 |
Type | Circuit Safe NEMA Enclosures |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 2.720 L |
Package Weight (Metric) | 1.234 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
How to Install the NP1086B Enclosure
This guide provides step-by-step instructions for installing the NP1086B enclosure, ensuring proper mounting and wiring for optimal performance.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Mount the enclosure
Secure the NP1086B enclosure to the mounting surface using the provided mounting screws. Ensure it is level and firmly attached.
- Connect the wiring
Strip the ends of the wires and connect them to the terminal connectors inside the enclosure. Ensure all connections are tight and secure.
- Verify electrical connections
Use a multimeter to check the continuity of the connections. Ensure there are no shorts and that all connections are functioning properly.
- Seal the enclosure
Attach the cover of the enclosure securely, ensuring that all latches are engaged to protect the internal components from environmental factors.
- Calibrate the system
Follow the manufacturer's instructions to calibrate the system settings as required for your specific application.
