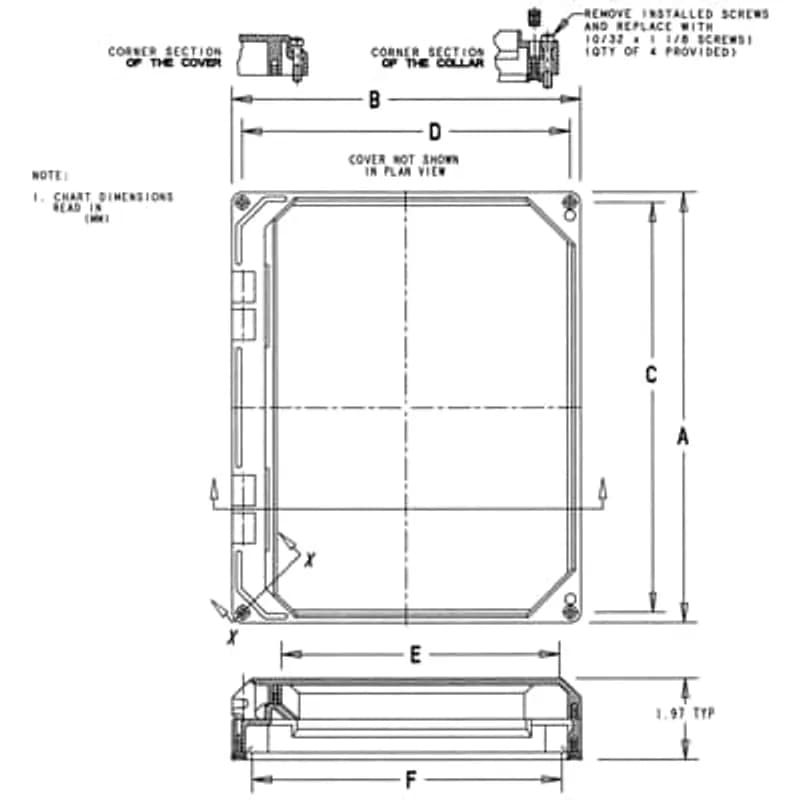

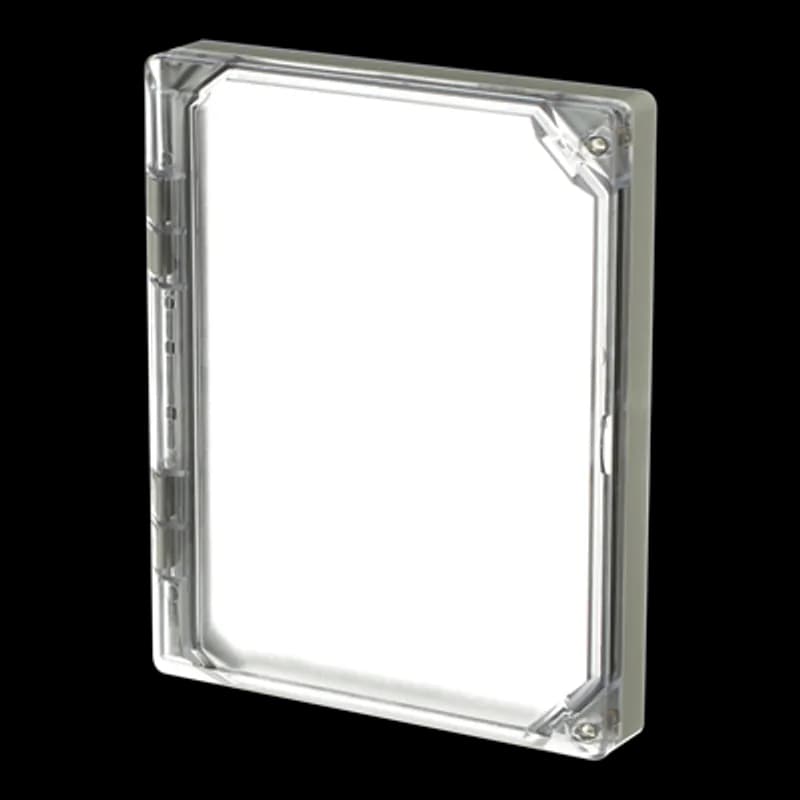

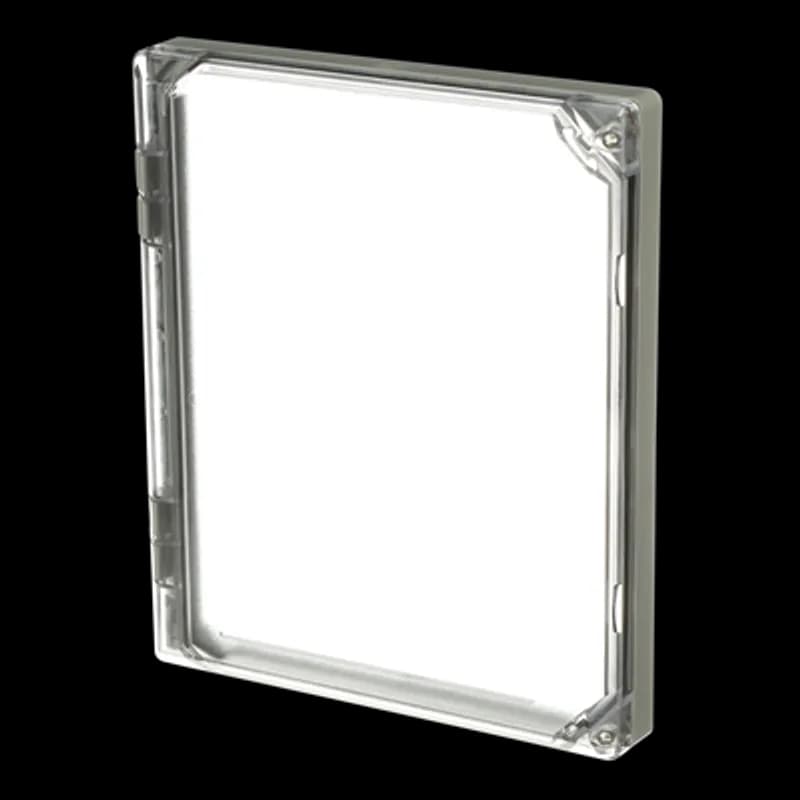

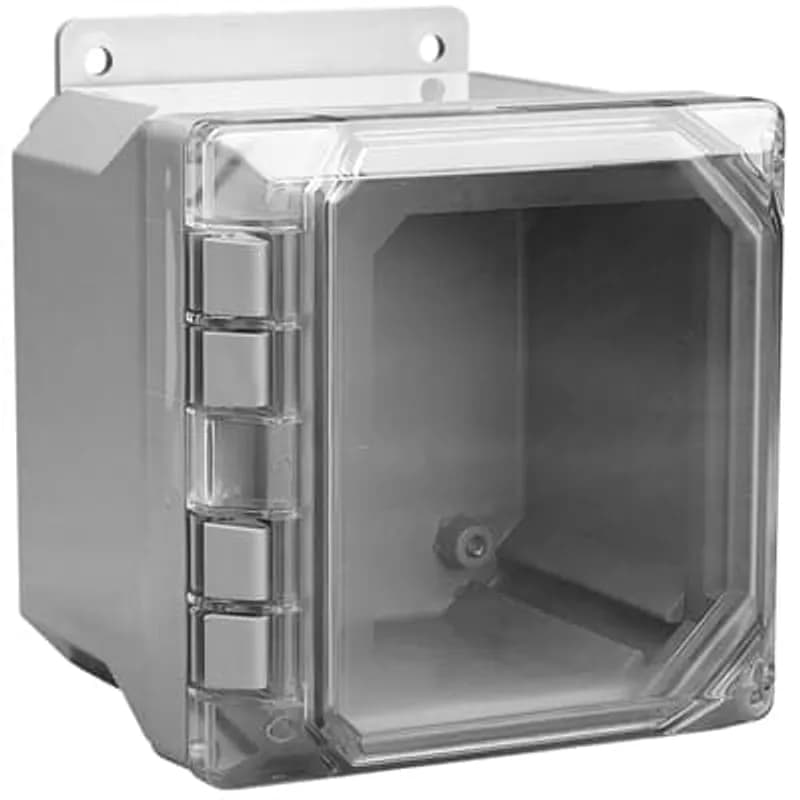

ABB Installation Products NI1010W Polycarbonate hinged window kit, 10 inch by 10 inch
UPC: 034481050483
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Meets UL Type 12, NEMA/EEMAC Type 12, and IEC 60529 IP55 standards
- Constructed from .25-inch (6mm) clear polycarbonate
- Hinged design for easy installation and maintenance
- Continuous gaskets on all openings maintain enclosure integrity
- ANSI 61 gray polyester powder paint finish
Specifications
Application | Carlon hinged window kits are used to create a NEMA 4X environment on electronic control panels |
Material | Polycarbonate |
Material Quality | Polycarbonate |
Special Features | High-impact strength |
Standard | cULus, E88685 |
Standard | cULus, E88685 / cULus, E88685 |
Type | Circuit Safe Enclosure Accessories |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 2.060 L |
Package Weight (Metric) | 0.934 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
How to Install the NI1010W Window Kit
This guide provides step-by-step instructions for installing the NI1010W window kit, ensuring a secure and leak-proof fit.
Estimated time: 45m
Tools needed:
Screwdriver, Drill, File, Torque wrench
Supplies needed:
Mounting screws, Seal rings, Cap nuts, RTV sealant (if needed)
- Prepare the mounting surface
Ensure the mounting surface is smooth and flat. If the surface is uneven, apply RTV sealant to create a leak-proof seal.
- Cut and drill the mounting area
Use the provided template to cut out the area for the window. Drill screw locations with a #5 or #6 drill bit (.205" diameter).
- Inspect and install the window
Check the 'T' shaped mounting surface gasket for damage. Position the window assembly, ensuring the mounting screws compress the gasket by 50%. Use seal rings and cap nuts, then tighten screws to 10 in-lb of torque.
