Contact for Pricing
Minimum Qty: 2
Multiplier: 2
*Contact for lower quantities*
Overview

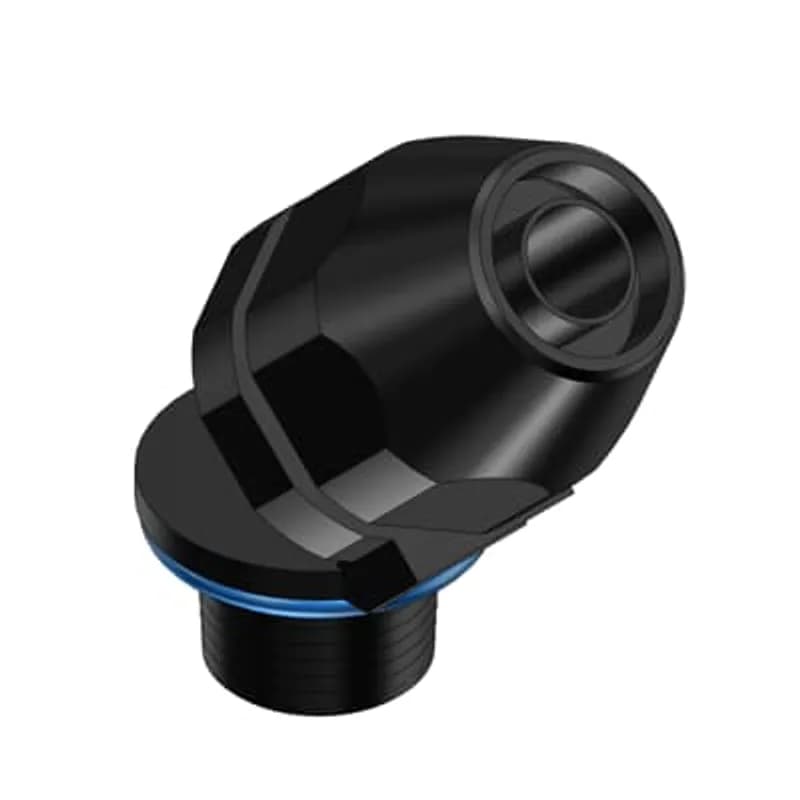

- 1-1/2" trade size for versatile conduit compatibility
- 45-degree angle for efficient routing in tight spaces
- Double-sealed design with captive nitrile O-ring for watertight performance
- Rugged thermoplastic body and steel locknut for corrosion resistance
- Tested for exposure to detergents, sanitizers, cutting fluids, and marine environments
Specifications
Application | T&B Bullet meets performance requirements when terminating Type B liquidtight non-metallic conduit or flexible non-metallic tubing to a box or enclosure with knockout opening or threaded hub |
Material | Thermoplastic |
Material | Non-Metallic |
Size | 1-1/2 Inch |
Standard | UL E23018, CSA |
Type | Bullet-45 Degree |
Package Dimensions (L x W x H) | 6 IN x 5 IN x 4 IN |
Package Dimensions (L x W x H) | 15.24 cm x 12.7 cm x 10.16 cm |
Package Weight (Imperial) | 0.5500 L |
Package Weight (Metric) | 0.2500 kg |
LT4100P-200
1/2 Inch 90 Degree Bullet Non-metallic Conduit Fitting for Liquidtight FNMC Type B. 200 Pieces, Weather Stabilized Thermoplastic Material UL Listed for Direct Burial. IP66 and IP68 At 2 Meters. Use Only With TB Conduit LTC050 Or LTC050 to 1. 200 Pieces
LT50P-500
1/2 Inch Straight Bullet Non-metallic Connector, for Liquidtight FNMC Type B, Ul Reconized and CSA Certified for Liquidtight Flixible Non-metallic Tubing, Weather Stabilized Thermoplastic Material 500 Pieces
LT9100P-200
1 Inch 90 Degree Bullet Non-metallic Conduit Fitting for Liquidtight FNMC Type B. 200 Pieces, Weather Stabilized Thermoplastic Material UL Listed for Direct BurialFrequently Asked Questions
What standards does this fitting conform to?
It conforms to C.S.A. 22.2 No. 227.2 & No. 227.3, ANSI/UL514B, and Federal Standards H28 (NPT threads).
What is the flammability rating of the material?
The material flammability rating for the thermoplastic is UL94-V2.
Does the fitting provide a liquidtight seal?
Yes, the connector is designed to provide a liquidtight seal and meets watertight requirements for Type 4 and Type 6 enclosures.
What thread type does the LT4150P use?
The LT4150P uses a 1 1/2 - 11 1/2 NPT thread.
What are the dimensions of the LT4150P fitting?
The LT4150P has a trade size of 1 1/2 inches, with dimensions A: .767 inches, B: 3.605 inches, C: 2.784 inches, and D min: 1.453 inches.
What type of conduit is compatible with this connector?
This connector is designed for liquid-tight non-metallic conduit (UL Type B) or non-metallic tubing.
What materials are used in the fitting?
The body gland is weather-stabilized thermoplastic, the O-ring is Nitrile, and the locknut is steel/electro zinc plated.
What is the operating temperature range?
The fitting operates within a temperature range of -18°C to +105°C (-2°F to +221°F).
What materials are used in the fitting?
The body gland is weather-stabilized thermoplastic, the O-ring is Nitrile, and the locknut is steel/electro zinc plated.
Does the fitting provide a liquidtight seal?
Yes, the connector is designed to provide a liquidtight seal and meets watertight requirements for Type 4 and Type 6 enclosures.
