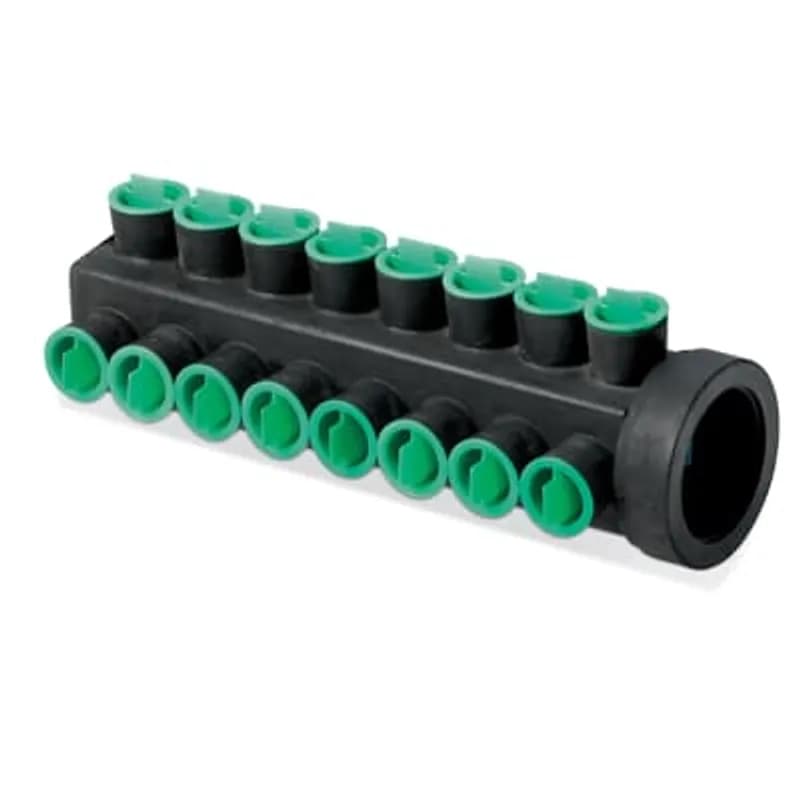

ABB - Installation Products LRTR 8 - Aluminum Quick Disconnect Transformer Connectors - LRTR Series, wire size 12-350, length 11, stud size 5/8, outlets 8

ABB Installation Products LRTR 8 Aluminum Quick Disconnect Transformer Connectors - LRTR Series, wire size 12-350, length…

UPC: 783786738151

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB LRTR 8 is an Aluminum Quick Disconnect Transformer Connector from ABB's Installation Products division. Designed for reliable electrical connections, this connector is part of the LRTR Series. It accommodates a wire size range of 12 to 350 kcmil, ensuring versatility for various conductor sizes. The connector features a stud size of 5/8 inches, suitable for standard transformer stud configurations. With 8 outlets, it allows for multiple connections from a single point, streamlining electrical distribution in transformer applications. The LRTR 8's construction from aluminum provides good conductivity and corrosion resistance, essential for long-term performance in electrical systems. Its quick disconnect design facilitates faster installation and maintenance compared to traditional methods, reducing downtime and labor costs. This connector is engineered for use in transformer applications where secure and efficient power transfer is critical. The specific wire size range and stud size make it a targeted solution for many industrial and utility transformer setups. SKU: LRTR 8. UNSPSC Code: 39121443.
  • Aluminum construction for conductivity and corrosion resistance
  • Accommodates wire sizes from 12 to 350 kcmil
  • 5/8 inch stud size for standard transformer connections
  • Features 8 outlets for multiple connections
  • Quick disconnect design for efficient installation and maintenance

Specifications

Application
Stud Mount Transformer Connector
Conductor Range
#12 to 350 kcmil
Connection
Mechanical
Connection Type
Quick Disconnect
Insulation
EPDM Rubber Coating
Material
Aluminum
Material
Aluminum Connector, EPDM Rubber coating
Number of Conductors
8
Poles
8
Series
LRTR
Size
11 inches
Size
12-350 kcmil
Special Features
Left Hand or Right Hand Installation Capability. Disconnectable - easy to install or remove and fully insulated with EPDM Rubber. Dual Rated to accept Aluminum or Copper Conductors
Type
Quick-Disconnect Transformer Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
