UPC: 783786032488
Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Overview

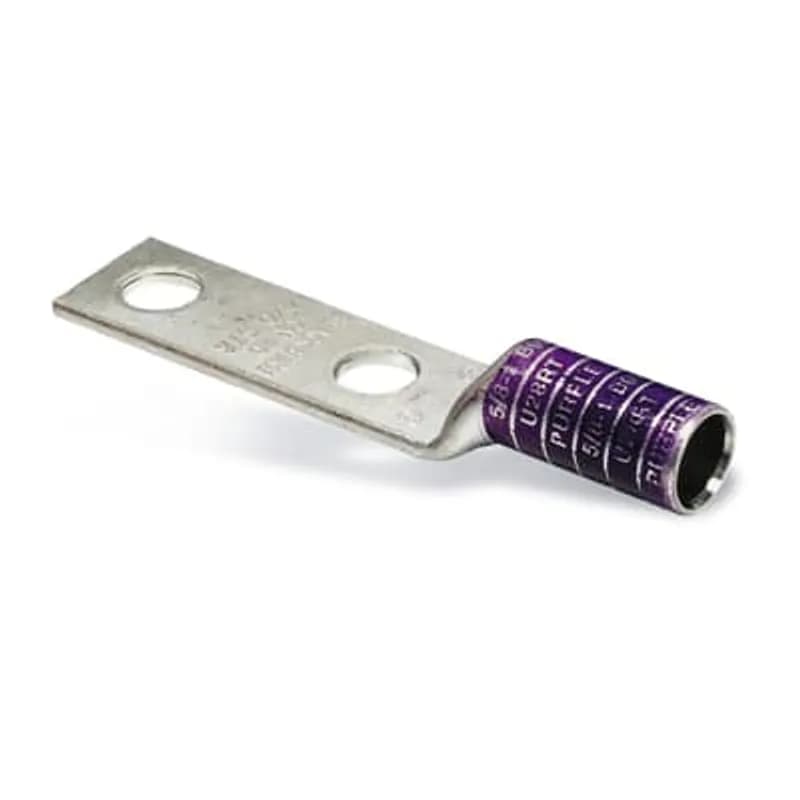

- Manufacturer: ABB - Installation Products
- SKU: LCN10
- Material: High-conductivity Copper
- Wire Size: 1/0 AWG
- Voltage Rating: Max 35 kV
- Connection Type: Two-Hole Lug
- Bolt Hole Size: 1/2 Inch
- Plating: Tin Plated for corrosion resistance
- Die Color Code: Pink for easy identification and tooling
- Series: LCN
Specifications
Cable Size | 1/0 AWG |
Color | Pink |
Material | Copper |
Number Of Holes | 2 |
Special Features | Made of high-conductivity seamless copper tubing. Tin plated for corrosion resistance |
Standard | UL E9809 |
Stud Size | 1/2 in |
Type | Long Barrel |
Package Dimensions (L x W x H) | 5.5 IN x 4 IN x 3 IN |
Package Dimensions (L x W x H) | 13.97 cm x 10.16 cm x 7.62 cm |
Package Weight (Imperial) | 0.1200 L |
Package Weight (Metric) | 0.0540 kg |
13682
Die for 12 Ton 13400 or 13642M Hydrualic Tool for Crimping 204210MT Dragon Tooth Terminals, Brown. .301/.289 Gaging
RDC1/0
Ratchet Drive Crimping Tool APPLICATIONS: Ratchet Drive Crimping Tool is for non-insulated terminals from 6 to 1/0 AWG and insulated terminals from 22 to 8 AWG. Rugged, compact, and lightweight. Requires minimum effort due to ratchet action, ensuring an excellent crimp every time. FEATURES: TYPE: Insulated and Uninsulated ACTION: Ratchet INSULATED USE: Terminals 22 to 8 AWG NON-INSULATED USE: Terminals 6 to 1/0 AWG MANUFACTURER: NSi Industries PART NUMBER: RDC 1/0 UPC: 662381055309
CD6A
U-Type Compression Die - Pink 1/0 AWG Copper - 2 AWG Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
F4-PS-W-NP
Non-Insulated Parallel Splice Connector For Wire Range #4 AWG, Circular Mil Range 33,100-52,600, Length 0.531 Diameter 0.41, Nickel Plated
AS-K1-H6
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
1SNK705010R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
1SNK705030R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
E989NNJ-5-HD
Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray
How to Install Compression Connectors (Lugs and Splices)
This guide provides step-by-step instructions for the safe and proper installation of compression connectors, including preparing the cable, inserting it into the connector, and crimping. Installation must be performed by a qualified electrician in accordance with national and local electrical codes. Disconnect power before beginning installation to avoid risk of shock.
Estimated time: 20m
Tools needed:
Crimping tool with appropriate dies, Wire brush (e.g., ABB WWB1)
Supplies needed:
Compression connector, Electrical cable, Oxide inhibitor (if applicable)
- Verify Connector and Cable Compatibility
Before starting, confirm that the compression connector is compatible with the cable size and material (e.g., aluminum or copper). Refer to product specifications and the Tool and Die Index for proper matching.
- Strip Cable Insulation
Carefully strip the insulation from the end of the cable, ensuring no damage occurs to the cable's strands. The stripped length should allow for full insertion into the connector barrel.
- Wire Brush Cable End
Thoroughly wire brush the stripped end of the cable that will be inserted into the connector. This removes oxides and ensures a good electrical connection. Use a suitable wire brush, such as ABB catalog number WWB1.
- Insert Cable into Connector
Fully insert the prepared cable end into the barrel of the compression connector until it bottoms out. Ensure all strands are contained within the connector.
- Crimp the Connector
Consult the Tool and Die Index to select the correct crimping tool and die combination for your cable size and connector type. Crimp the connector the specified number of times. For splices, make the first crimp just outside the knurl on each side of the center and space subsequent crimps uniformly. For lugs, make the first crimp at the inner end of the barrel and space crimps uniformly along the barrel.
- Clean Excess Oxide Inhibitor
After crimping, wipe off any excess oxide inhibitor that may have been expelled from the connector during the crimping process.
