ABB - Installation Products LBY15-TB - 1/2 Inch Hazardous Location Capped Elbow, Ductile Iron

ABB Installation Products LBY15-TB 1/2 Inch Hazardous Location Capped Elbow, Ductile Iron

UPC: 786210689142


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB LBY15-TB is a 1/2 inch capped elbow designed for hazardous locations, manufactured by ABB Installation Products. Constructed from durable ductile iron, this fitting ensures robust performance and longevity in challenging industrial environments. Its primary function is to provide a protected conduit pathway for electrical wiring in areas where explosive atmospheres may be present. The capped design offers an additional layer of protection against environmental ingress, such as dust and moisture, which is critical for maintaining the integrity of electrical systems in hazardous zones. This elbow facilitates a 90-degree change in conduit direction, allowing for efficient and safe routing of cables. The ductile iron material offers superior mechanical strength and corrosion resistance compared to other materials, making it suitable for demanding applications. The SKU LBY15-TB signifies a specific configuration within ABB's extensive range of conduit fittings. This product aligns with the UNSPSC code 39131717, categorizing it under electrical conduit fittings. Its application is vital for ensuring electrical safety and compliance in industries such as oil and gas, chemical processing, and manufacturing facilities where hazardous conditions are a concern.
  • 1/2 Inch Conduit Size
  • Hazardous Location Rated
  • Ductile Iron Construction
  • Capped Elbow Design
  • ABB Installation Products Manufacturer

Specifications

Application
Act as Pull Outlets, Provide Access to Conductors for Maintenance and Future System Changes
Material Quality
Ductile Iron
Special Features
Maximum Volume for Bends within a Compact Overall Size
Standard
UL E193396
Trade Size
1/2
Type
Rigid and Intermediate Metal Conduit Fittings
Package Dimensions (L x W x H)
9.75 IN x 6.75 IN x 4.75 IN
Package Dimensions (L x W x H)
24.765 cm x 17.145 cm x 12.065 cm
Package Weight (Imperial)
1.1600 L
Package Weight (Metric)
0.5260 kg
Schedule 40 Elbow, Size 2-1/2 Inches, Bend Radius 36 Inches, Bend Angle 90 Degrees, Material PVC, Belled End

UA9FKB

Schedule 40 Elbow, Size 2-1/2 Inches, Bend Radius 36 Inches, Bend Angle 90 Degrees, Material PVC, Belled End

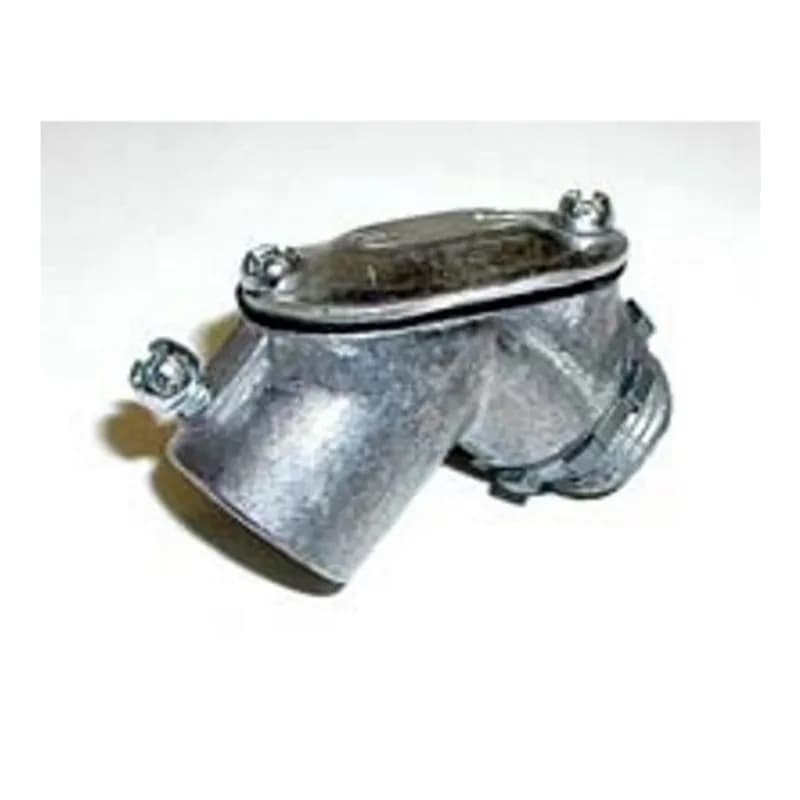

Aluminum 1/2" Set Screw Connector Pull Elbows
