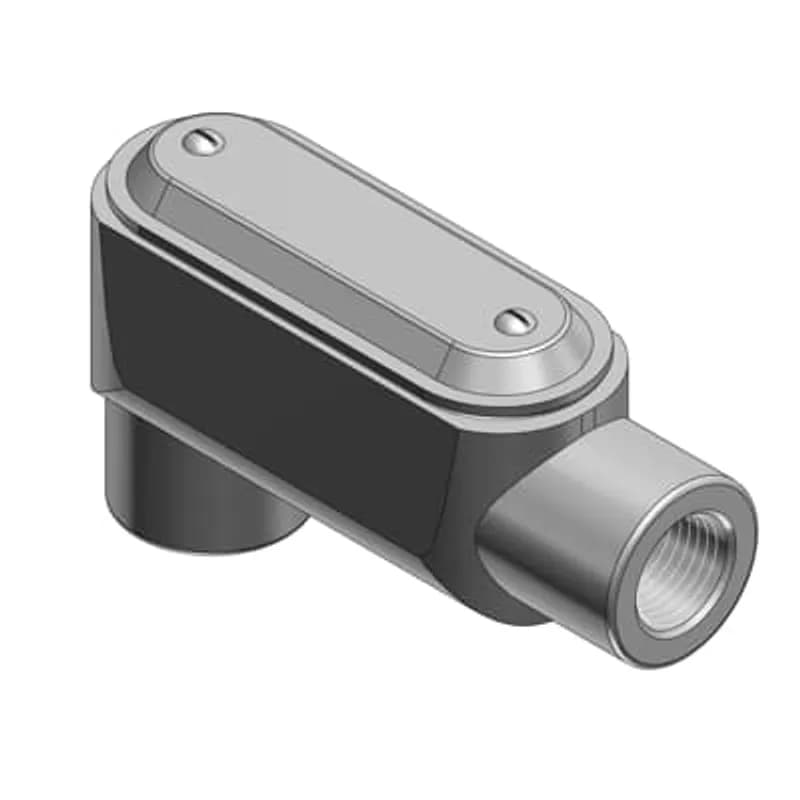

ABB - Installation Products LB57CG-TB - 1-1/2 Inch Form 7 (LB) Back Opening Pre-Assembled Conduit Body, Cover and Gasket, Body Material Gray Iron/Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating, Cover Material and Finish Stamped Steel/Zinc Plating

ABB Installation Products LB57CG-TB 1-1/2 Inch Form 7 (LB) Back Opening Pre-Assembled Conduit Body, Cover and Gasket, Body…

UPC: 786210916712


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB LB57CG-TB is a 1-1/2 inch Form 7 (LB) style back opening conduit body, pre-assembled with its cover and gasket. This unit is constructed from gray iron, featuring a robust combination of zinc plating and a baked-on epoxy powder coat for enhanced corrosion resistance. The internal surfaces are further protected by ABB's BlueKote coating, designed to reduce wire pulling friction and prevent damage to conductors. The stamped steel cover also benefits from zinc plating, ensuring durability and compatibility with the body's protective finish. This conduit body is specifically designed for electrical conduit systems, providing a means to change the direction of conduit runs, facilitate pulling of wires, and allow for access to the conduit for maintenance or inspection. Its 'LB' designation indicates a back opening configuration, offering a specific access point. The pre-assembled nature of the body, cover, and gasket simplifies installation, saving time and labor on job sites. Suitable for various industrial and commercial electrical installations where conduit protection and accessibility are required.
  • 1-1/2 Inch Form 7 (LB) Back Opening Conduit Body
  • Pre-assembled with Cover and Gasket for simplified installation
  • Gray Iron Body with Zinc Plating and Baked On Epoxy Powder Coat
  • BlueKote Internal Coating for reduced wire pulling friction
  • Stamped Steel Cover with Zinc Plating

Specifications

Application
Conduit Bodies are Installed In Conduit Systems to Connect Sections, Act As Pull Outlets When Conductors are Being Installed and Provide Easy Access for Splices In Branch Conductors
Color
Gray
Finish
Zinc Plated with Epoxy Powder Coat
Form
Form 7
Hub Size
1-1/2
Material
Gray Iron with Zinc Plating, Epoxy Powder Coat, BlueKote Internal Coating
Material Quality
Gray Iron
Series
Form 7 (LB)
Size
1-1/2 Inch
Special Features
BlueKote Teflon Based Internal Finish Provides a Slick, Easy-Glide Internal Surface Which Significantly Lowers the Amount of Force Necessary to Pull Wires
Standard
UL E2969, CSA
Type
Pre-Assembled Form 7 Conduit Body, Cover & Gasket
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
3.8800 L
Package Weight (Metric)
1.7600 kg
