Contact for Pricing
Minimum Qty: 100
Multiplier: 100
*Contact for lower quantities*
Overview
- Black polyamide (Nylon 6.6) construction for durability and UV resistance
- Integrated mounting hole for secure #10 screw attachment
- Rated for temperatures up to 85°C (185°F) and outdoor weather exposure
- UL/EN/CSA62275 Type 2/21 certified for AH-2 plenum and flexible support
- 222N (50 lb) tensile strength, 205.70mm length, 100 per pack
Specifications
Bundle Diameter | 0.0625 to 1.75 in , 1.59 to 44.45 mm |
Bundle Diameter, Maximum | 1.75 in |
Bundle Diameter, Maximum | 44.45 mm |
Bundle Diameter, Minimum | 0.0625 in |
Bundle Diameter, Minimum | 1.59 mm |
Color | Black |
Family Color | Black |
Length | 8.1 in |
Length | 205.7 mm |
Lock Mechanism | Plastic Pawl |
Material | Nylon/Polyamide 6.6 Weather Resistant |
Material | Nylon 6.6 |
Material | Polyamide (Nylon 6.6) |
Material Quality | Nylon/Polyamide 6.6 Weather Resistant |
Mounting Type | Integrated Mounting Hole with #10 Screw |
Mounting Type | Integrated Mounting Hole (#10 Screw) |
Mounting Type | #10 Screw |
Nema Rating | Type 2/21 |
Series | L-7-50MH-0-C |
Series | L-7 |
Size | 205.70mm (8.1 Inches) x 4.6mm (0.18 Inches) x 1.35mm (0.053 Inches) |
Size | 205.70mm x 4.6mm x 1.35mm |
Size | Length 205.70mm (8.1 Inches), Width 4.6mm (0.18 Inches), Thickness 1.35mm (0.053 Inches) |
Standard | UL E49405 / UL E49405 |
Standard | UL E49405 |
Tensile Strength | 50 lb |
Tensile Strength | 220 N |
Thickness | 0.053 in |
Thickness | 1.35 mm |
Type | Intergrated Mounting Hole |
Width | 0.18 in |
Width | 4.6 mm |
Package Dimensions (L x W x H) | 12 IN x 5 IN x 1.5 IN |
Package Dimensions (L x W x H) | 30.48 cm x 12.7 cm x 3.81 cm |
Package Weight (Imperial) | 0.001 L |
Package Weight (Metric) | 0.001 kg |
L-7-50MH-9-C
Integrated Mounting Hole Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Length of 205.70mm (8.1 Inches), Width of 4.6mm (0.18 Inches), Thickness of 1.35mm (0.053 Inches), Tensile Strength Rating of 222 Newtons (50 Pounds), #10 Screw for Mounting, 100 Pack
PLC2S-S10-C0

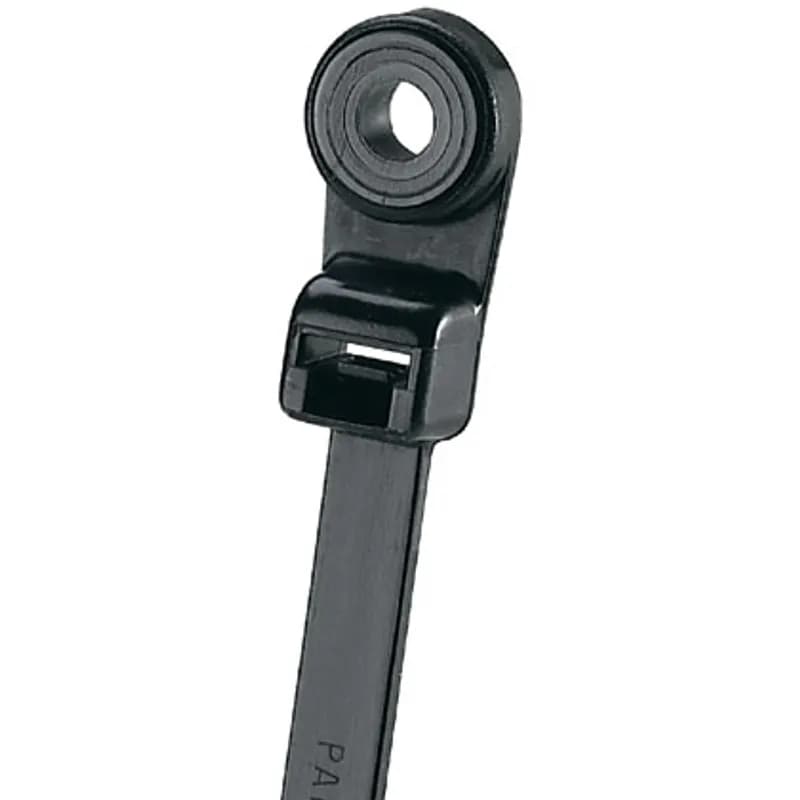

Panduit PLC2S-S10-C0 Locking Clamp Cable Ties are used to secure cable bundles to another surface such as a control panel, communication rack, wall or ceiling. The cable tie design allows for bundling before or after screwing clamp in place, for use with #10 (M5) screw. Standard cross section, 7.9" (201mm) length. Made of Weather Resistant Nylon 6.6 with high resistance to ultraviolet light, are black in color and come in packages of 100.![Cable Ties, Heavy Duty, Bag, 120 lbf Tensile Strength, 534 Newton Tensile Strength, Product Length 9 in [226 mm], Product Width .299 in [7.59 mm]](/_next/image?url=%2Fimage_coming_soon.jpg&w=3840&q=75)
4-603225-0
Cable Ties, Heavy Duty, Bag, 120 lbf Tensile Strength, 534 Newton Tensile Strength, Product Length 9 in [226 mm], Product Width .299 in [7.59 mm]CT6UV
UV-Stabilized Cable Tie, Black Nylon, 7 in. length, 2 in. bundle diameter, 50 lb. tensile strength, 100 per pack
22246
This is a 7-inch mounting tie for cable management. It is made of nylon and is black in color. The tie has a mounting hole for fastening to wood or metal and is UV rated. It has a tensile strength of 50 lb and a bundle diameter range of 1/16 in to 1-3/4 in.
Frequently Asked Questions
What is the maximum bundle diameter for L-14-120MH-0-C?
The maximum bundle diameter for the L-14-120MH-0-C is 3.9 inches (98 mm).
What are the minimum and maximum operating temperatures?
The minimum operating temperature is -40°C (-40°F) and the maximum is 85°C (185°F).
What is the tensile strength of the L-14-120MH-0-C?
The tensile strength of the L-14-120MH-0-C is 120 lbs (540 N).
What materials are used in this product?
The product is made from Nylon 6.6, available in natural and UV resistant black finishes.
What is the minimum installation temperature?
The minimum installation temperature is -20°C (-4°F).
What are the installation requirements for this product?
The product must be installed in accordance with applicable national and local electrical codes.
What safety precautions should be taken during installation?
Ensure installation complies with national and local electrical codes to maintain safety.
Is the L-14-120MH-0-C compatible with other cable ties?
The compatibility with other cable ties is not specified in the document.
