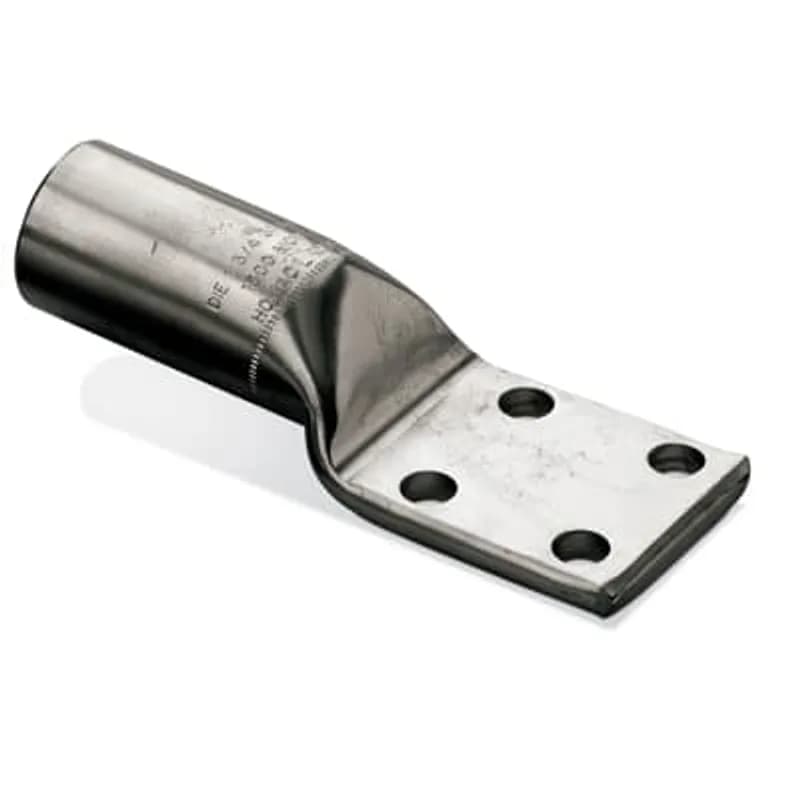

L 1500-4 N

The L 1500-4 N lug is designed for 1500 kcmil stranded copper wire.

The pad measures 2-41/64 inches wide by 3 inches long and is 3/8 inch thick.

The L 1500-4 N lug features four 9/16 inch diameter holes.

The four holes on the L 1500-4 N lug are spaced on 1-3/4 inch centers.

The barrel length of the L 1500-4 N lug is 3-3/16 inches.

The L 1500-4 N lug requires installing dies 1 3/4, 31, 150, and 302.

The overall length of the L 1500-4 N lug is 7-1/2 inches.
