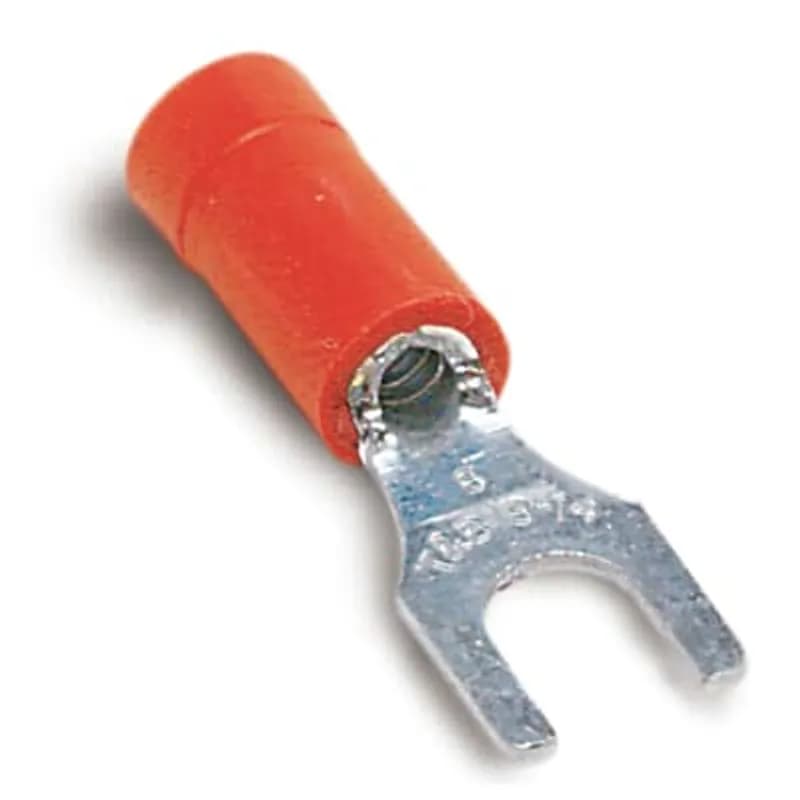

ABB - Installation Products KV18-6F-M - Insulated Vinyl Fork Terminal for Wire Range 22-16 Stud Size #6, Red, Package of 1000

ABB Installation Products KV18-6F-M Insulated Vinyl Fork Terminal for Wire Range 22-16 Stud Size #6, Red, Package of 1000

UPC: 786210100180


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 1000

Multiplier: 1000

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB KV18-6F-M is a red insulated vinyl fork terminal designed for reliable electrical connections. This terminal is engineered for wire ranges of 22-16 AWG (American Wire Gauge) and accommodates a #6 stud size, ensuring compatibility with standard #6 screws or studs for secure fastening. Manufactured by ABB - Installation Products, this terminal offers dependable performance for various electrical installations. Constructed with a copper alloy and vinyl insulation, it provides electrical isolation and protection. The fork design facilitates easy installation and removal from screw terminals without requiring complete removal of the fastener. The molded funnel entry insulator aids in wire insertion, and internal barrel serrations enhance wire retention. This terminal is rated for a maximum of 105°C and 600 Volts. The red color coding adheres to industry standards for wire gauge identification, simplifying inventory management and installation processes. Ideal for use in control panels, junction boxes, and equipment wiring where secure and insulated terminations are required. Package quantity is 1000 units.
  • Wire Range: 22-16 AWG
  • Stud Size: #6
  • Color: Red
  • Insulation Material: Vinyl
  • Package Quantity: 1000 units

Specifications

Color
Red
Material
Copper
Special Features
Molded Funnel Entry Insulator. Brazed Seam. Internal Barrel Serrations
Standard
UL E9809
Type
Vinyl Insulated Fork Terminal
Voltage Rating
600 V
Wire Size
22-16 AWG
Package Dimensions (L x W x H)
5.25 IN x 4 IN x 3.62 IN
Package Dimensions (L x W x H)
13.335 cm x 10.16 cm x 9.1948 cm
Package Weight (Imperial)
0.0010 L
Package Weight (Metric)
0.0010 kg
