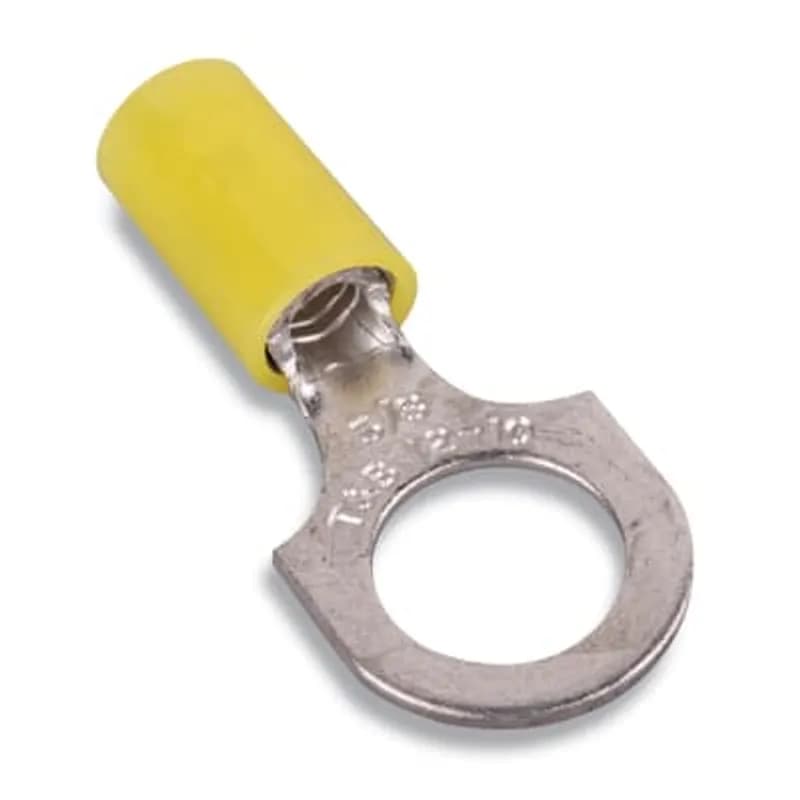

ABB - Installation Products KN10-10R-D - Insulated Nylon Ring Terminal for Wire Range 12-10 Stud Size #10, Yellow

ABB Installation Products KN10-10R-D Insulated Nylon Ring Terminal for Wire Range 12-10 Stud Size #10, Yellow

UPC: 786210101613


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 500

Multiplier: 500

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB KN10-10R-D is an insulated nylon ring terminal designed for reliable electrical connections within the 12-10 AWG wire range. This terminal features a #10 stud size, ensuring secure attachment to electrical studs and posts. Its vibrant yellow color coding adheres to industry standards, allowing for quick and accurate identification of wire gauge compatibility, specifically for 12-10 AWG conductors. Manufactured by ABB, a recognized leader in installation products, this ring terminal offers a durable and safe solution for various industrial and commercial electrical applications. The nylon insulation provides electrical isolation, preventing short circuits and enhancing safety in enclosed spaces or where accidental contact is a concern. The robust construction of the terminal ensures it can withstand typical industrial handling and vibration. This product is essential for creating secure, long-lasting connections in control panels, power distribution systems, and equipment wiring. Its design facilitates efficient termination, reducing installation time and potential for errors. The KN10-10R-D is a critical component for maintaining the integrity and safety of electrical circuits, supporting reliable power transmission and signal integrity.
  • Insulated nylon ring terminal for secure electrical connections
  • Suitable for wire range 12-10 AWG
  • Features a #10 stud size for reliable attachment
  • Yellow color coding for easy wire gauge identification
  • Manufactured by ABB Installation Products for quality assurance

Specifications

Color
Yellow
Material
Copper
Special Features
Molded Funnel Entry Insulator. Brazed Seam. Internal Barrel Serrations
Standard
UL E9809
Type
Nylon Insulated Ring Terminal
Voltage Rating
600 V
Wire Size
12-10 AWG
Package Dimensions (L x W x H)
5.25 IN x 4 IN x 3.62 IN
Package Dimensions (L x W x H)
13.335 cm x 10.16 cm x 9.1948 cm
Package Weight (Imperial)
0.0010 L
Package Weight (Metric)
0.0010 kg
Nylon Insulated Expanded Entry Ring Terminal, Length 1.32 Inches, Width .53 Inches, Maximum Insulation .250, Bolt Hole 1/4 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 500 Pack

RC704

Nylon Insulated Expanded Entry Ring Terminal, Length 1.32 Inches, Width .53 Inches, Maximum Insulation .250, Bolt Hole 1/4 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 500 Pack
12-10 AWG Vinyl Insulated Ring 1/2" Stud - 40/Pack

R12-50V

12-10 AWG Vinyl Insulated Ring 1/2" Stud - 40/Pack
Ring Tongue Terminal 4 to 6 mm / M10 - 12 to 10 AWG / MIL 3/8 - Yellow

1SET121020R0000

Ring Tongue Terminal 4 to 6 mm / M10 - 12 to 10 AWG / MIL 3/8 - Yellow
FRONT TERMINALS 3pcs XT1

KXT1F-3PC

FRONT TERMINALS 3pcs XT1
TERMINAL BLOCK BTWD 4NK WEG specifications: Terminal type Screw; Connector cross-section 4 mm2; Nominal current 32 A; Lugs color Gray; Rated voltage 500 V; Quantity per packaging 20

BTWD 4NK

TERMINAL BLOCK BTWD 4NK WEG specifications: Terminal type Screw; Connector cross-section 4 mm2; Nominal current 32 A; Lugs color Gray; Rated voltage 500 V; Quantity per packaging 20
Nylon Fork Wire Range 12-10 Bolt Hole 1/4

KN10-14F-D

Nylon Fork Wire Range 12-10 Bolt Hole 1/4
Insulation Piercing Magnet Wire Ring Terminal, Length 1.58 Inches, Width .81 Inches, Length of Teeth .61 Inches, Width of Teeth .53 Inches, Stud Size 3/8 Inch, Wire Range #12 AWG - #4 AWG 20,760 Circular Mil Area - 104,960 Circular Mil Area, Copper Alloy, Tin Plated, with Double Splices

204210-3H

Insulation Piercing Magnet Wire Ring Terminal, Length 1.58 Inches, Width .81 Inches, Length of Teeth .61 Inches, Width of Teeth .53 Inches, Stud Size 3/8 Inch, Wire Range #12 AWG - #4 AWG 20,760 Circular Mil Area - 104,960 Circular Mil Area, Copper Alloy, Tin Plated, with Double Splices
Insulation Piercing Magnet Wire Ring Terminal, Length 1.58 Inches, Width .81 Inches, Length of Teeth .61 Inches, Width of Teeth .53 Inches, Stud Size 1/2 Inch, Wire Range #12 AWG - #4 AWG 10,380 Circular Mil Area - 52,480 Circular Mil Area, Copper Alloy, Tin Plated

204210-5

Insulation Piercing Magnet Wire Ring Terminal, Length 1.58 Inches, Width .81 Inches, Length of Teeth .61 Inches, Width of Teeth .53 Inches, Stud Size 1/2 Inch, Wire Range #12 AWG - #4 AWG 10,380 Circular Mil Area - 52,480 Circular Mil Area, Copper Alloy, Tin Plated

Frequently Asked Questions

What does the yellow color on the KN10-10R-D terminal indicate?

The yellow color on the ABB KN10-10R-D terminal indicates its compatibility with the 12-10 AWG wire range.

What wire gauge is compatible with the KN10-10R-D terminal?

The ABB KN10-10R-D insulated nylon ring terminal is designed for wire ranges of 12-10 AWG.

What is the stud size for the ABB KN10-10R-D terminal?

The ABB KN10-10R-D terminal features a #10 stud size.
