ABB - Installation Products K655ESA-15 - Shielded Surge Arrester, ESA Elbow Surge Arrester, 15/25kV, 600 Amp, MCOV KV RMS is 12.70. ANSI/IEEE Standard 386. IEEE C62.11.
ABB - Installation Products

K655ESA-15

UPC: 075114148849

Documents & Media
BrochureManufacturer Product Website

Contact for Pricing

Overview

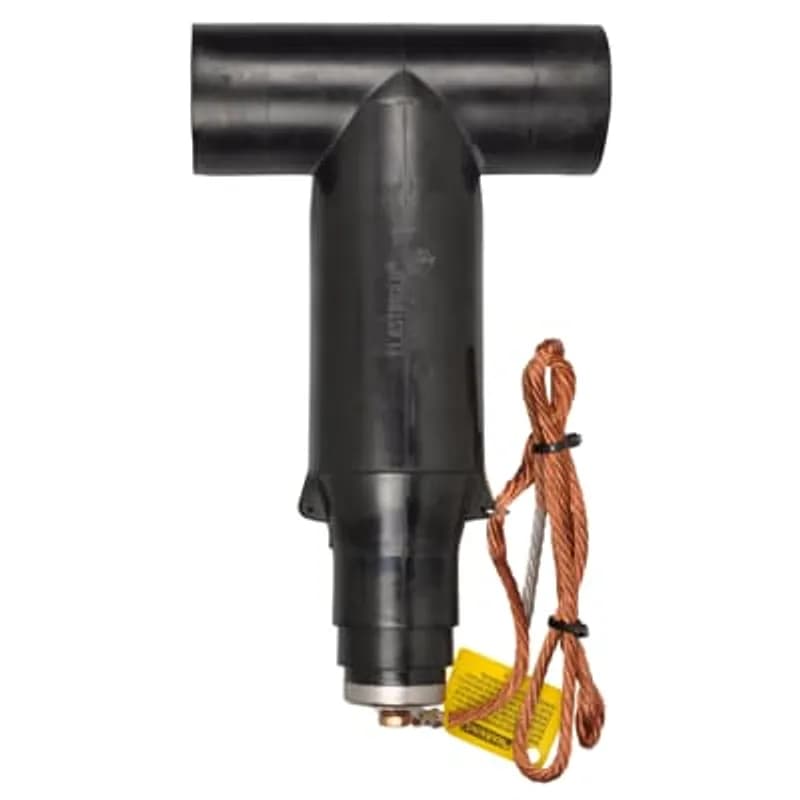

The ABB K655ESA-15 ESA Elbow Surge Arrester is a shielded surge protection device engineered for medium-voltage systems operating at 15/25 kV. This 600 A elbow-style arrester delivers reliable overvoltage protection for critical infrastructure, including substations, distribution networks, and industrial facilities. The device features a maximum continuous operating voltage (MCOV) of 12.70 kV RMS, ensuring compatibility with systems where line-to-ground voltage under normal conditions does not exceed this rating. Designed to meet ANSI/IEEE Standard 386 for interface compatibility and IEEE C62.11 for surge arrester performance, the K655ESA-15 provides robust protection against transient surges. Its compact elbow design simplifies installation in tight spaces, reducing maintenance time and operational downtime. The shielded composite construction enhances durability by minimizing exposure to environmental contaminants and physical damage, ensuring long-term reliability in harsh environments. The arrester’s temporary over-voltage (TOV) capability allows brief operation at power-frequency voltages above its MCOV rating, providing added flexibility for transient conditions. Ideal for protecting transformers, switchgear, and other high-voltage equipment, this ABB surge arrester delivers consistent performance and peace of mind in power distribution applications.
  • Voltage Rating: 15/25 kV with MCOV of 12.70 kV RMS
  • Current Rating: 600 A continuous operation
  • Elbow design for compact installation in tight spaces
  • Shielded composite construction for durability in harsh environments
  • Compliant with ANSI/IEEE Standard 386 and IEEE C62.11

Specifications

Amperage Rating
600 A
Application
Underground Medium Voltage Applications
Connection
Push-In
Environmental Conditions
All Weather Conditions, UV Resistant
Insulation
True
Material
Housing - EPDM Molded Rubber
Operating Temperature, Maximum
149 F
Operating Temperature, Maximum
65 C
Operating Temperature, Minimum
-40 F
Operating Temperature, Minimum
-40 C
Size
Length to Center of Bushing 12.24 in, Width 8.34 in
Standard
ANSI/IEEE Standard 386, IEEE C62.11-2012
Type
Elbow Surge Arrestor
Voltage Rating
15 to 25 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
25 kV, 900 Amps, Short Shank Bushing with Stud, Apparatus Bushing, Tin Plated Copper Contact, Includes Instruction Sheet. CS2114 - for any customer

K675S1-CS2114

25 kV, 900 Amps, Short Shank Bushing with Stud, Apparatus Bushing, Tin Plated Copper Contact, Includes Instruction Sheet. CS2114 - for any customer
Shielded Surge Arrester, ESA Elbow Surge Arrester, 15/25kV, 600 Amp, MCOV KV RMS is 17.00

K655ESA-21

Shielded Surge Arrester, ESA Elbow Surge Arrester, 15/25kV, 600 Amp, MCOV KV RMS is 17.00
Shielded Surge Arrester, ESA Elbow Surge Arrester, 15/25kV, 600 Amp, MCOV KV RMS is 8.40

K655ESA-10

Shielded Surge Arrester, ESA Elbow Surge Arrester, 15/25kV, 600 Amp, MCOV KV RMS is 8.40
Shielded Surge Arrester, ESA Elbow Surge Arrester, 15/25kV, 600 Amp, MCOV KV RMS is 10.2

K655ESA-12

Shielded Surge Arrester, ESA Elbow Surge Arrester, 15/25kV, 600 Amp, MCOV KV RMS is 10.2
Link, Stationary Bolt, Deadbreak Link Operable Connector System, Stationary Bolted Link with Horizontal Bracket.

650LK-SB-AB-LB

Link, Stationary Bolt, Deadbreak Link Operable Connector System, Stationary Bolted Link with Horizontal Bracket.
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 17.2kV, Fuse Test Port - Two Direct Test Ports, Size 3 - Large Housing, Cable Insulation Diameter 0.890 inch - 1.220 inch / 25-31mm, Aluminum Conductor size 4/0 AWG Stranded Compressed. No Sealing. 9-1/4 inch wide and 21 inch long from bottom to center of Installation O'Ring.

274AFLR3-D5270

Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 17.2kV, Fuse Test Port - Two Direct Test Ports, Size 3 - Large Housing, Cable Insulation Diameter 0.890 inch - 1.220 inch / 25-31mm, Aluminum Conductor size 4/0 AWG Stranded Compressed. No Sealing. 9-1/4 inch wide and 21 inch long from bottom to center of Installation O'Ring.
Copper Ground Rod and Connector Strip Assembly, #2 Wire, Electro Tin Plate.

200-33-2

Copper Ground Rod and Connector Strip Assembly, #2 Wire, Electro Tin Plate.
600 Amp, 15/25kV, Direct Test Straight Receptacle Elbow. Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size Compressed Stranded 2/0 AWG or Compacted Solid 250 kcmil.

K655YDSR-G0240

600 Amp, 15/25kV, Direct Test Straight Receptacle Elbow. Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size Compressed Stranded 2/0 AWG or Compacted Solid 250 kcmil.

Frequently Asked Questions

What voltage ratings does the K655ESA-15 support?

The K655ESA-15 supports 15/25 kV voltage ratings for medium-voltage systems.

What is the continuous current rating of this arrester?

The arrester has a continuous current rating of 600 A.

What is the MCOV of the K655ESA-15?

The maximum continuous operating voltage (MCOV) is 12.70 kV RMS.

Which standards does the K655ESA-15 comply with?

The device complies with ANSI/IEEE Standard 386 and IEEE C62.11.

What is the series name of this surge arrester?

The surge arrester is part of the ESA Elbow Surge Arrester series.

Is the K655ESA-15 suitable for outdoor installations?

The shielded construction suggests suitability for outdoor or harsh environments.
