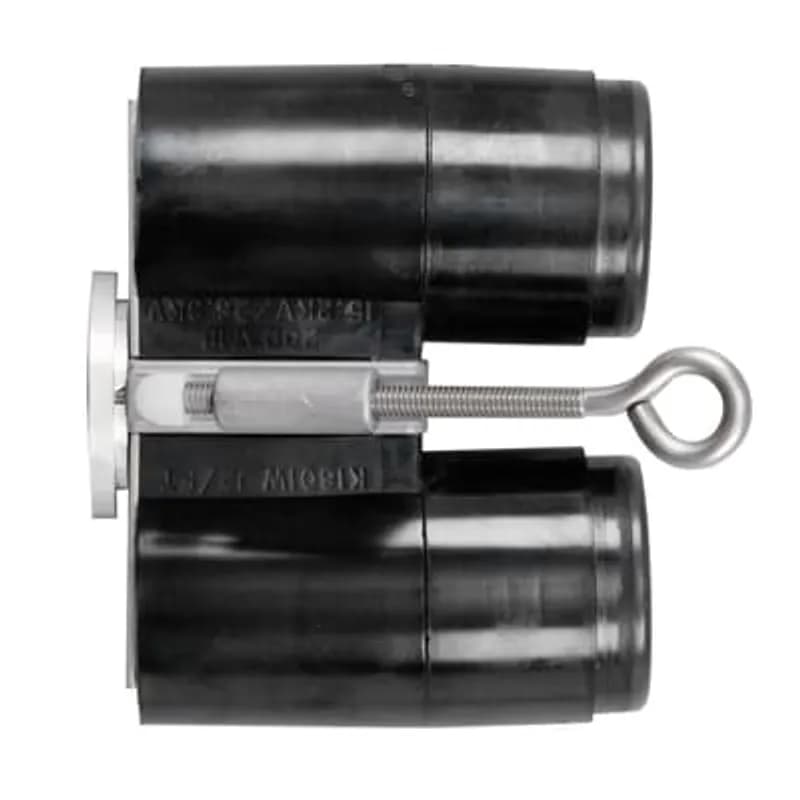

ABB Installation Products K1601WFT3-AB 15/25 kV, 200 Amp, Loadbreak, Feed-Thru Well Adjustable Bracket for 3 Points
UPC: 783786528608
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15/25 kV voltage rating with 200 Amp continuous current capacity
- Loadbreak Feed-Thru design for energized switching operations
- Adjustable 3-point mounting bracket for flexible well depth and cable configuration
- Compatible with Elastimold® 15kV elbow connectors and ABB well-type switchgear
- 10kA symmetrical momentary fault close rating for reliable performance under fault conditions
Specifications
Application | 15/25 kV, 200 Amps |
Current Rating | 200 A |
Mounting Type | Adjustable Bracket |
Series | K1601WFT |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -4 F |
Temperature Rating, Minimum | -20 C |
Type | Feed-Thru Well |
Voltage Rating | 15/25 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 9.1600 L |
Package Weight (Metric) | 4.1550 kg |
K675TBC
15/25kV, 900 Amp, Deadbreak Bushing for In-Air Applications (Pad-Mounted or Vault-Type or Submersible Transformers or Switchgear). One Factory installed 5/8-11 UNC-2A Stud included, other Stud must be Purchased Separately. Overall Length 13.75 inch, Diameter 4.50 inch. Molded Epoxy with Stainless Steel Flange. Boot and Collar.
750-71
Connector Assembly, includes Tin Plated Copper Crimp Connector Ground Probe for cable size 4/0 STR/COMPR, 3-1/2 inch long, Probe is 2 inch long x 3/8 inch Diameter. Tin Plated Copper 1-Hole Lug for 4/0 Conductor Length 4.06 inch wight 1 inch wide Pad. Pad has 2nd Hole that is 15/64 inch Diameter in Corner of Pad. Flexible Cable Cut Length 27.5 inch, 2/0 Rope Lay Tinned Copper.
16TCA-0250-4
15/25kv, Rod Contact for 16THG Terminators, includes Contact Rod, Ground Strap and Rain Cap. Conductor size - 2/0 Stranded/Compressed or 3/0 Compact/Solid.Frequently Asked Questions
What voltage ratings does this bracket support?
The bracket supports 15 kV and 25 kV voltage ratings for medium-voltage applications.
What is the continuous current rating?
The device has a 200 Amp continuous current rating for high-load applications.
Is this bracket compatible with 3-point mounting?
Yes, the bracket is designed for 3-point mounting systems in switchgear.
Does this bracket support loadbreak operations?
Yes, the bracket features a loadbreak design for safe energized switching.
What type of switchgear is this bracket used in?
The bracket is used in well-type switchgear for underground and pad-mounted applications.
How to Install the K1601WFT3-AB Well Feed-Thru/Grounding Device
Instructions for installing and connecting the K1601WFT3-AB Well Feed-Thru/Grounding Device.
Estimated time: 30m
Tools needed:
Hotstick, Screwdriver
Supplies needed:
Ground lead (No. 14 copper wire or equivalent), Lubricant (supplied), Bushing(s) (not included), ELASTIMOLD insulated cap or insulated plug (if applicable)
- Prepare Grounding
Insert the ground lead into the grounding lug on the mounting hardware and tighten. Connect the other end of the lead to ground, ensuring enough slack for hotstick operation.
- Prepare Bushing Wells
Remove protective shipping caps from the bushing wells. Inspect the wells to ensure they are dry and free of contaminants. Lubricate the well interface area with the supplied lubricant. Do not substitute lubricants. If not using all operating interfaces, install an ELASTIMOLD insulated cap or insulated plug before energizing.
- Install Bushings
Install the bushings into the lubricated wells according to the bushing's specific installation instructions. Ensure protective shipping caps are removed from the feed-thru wells when in use.
- Mount the Feed-Thru Device
Attach the feed-thru eye firmly to a hotstick. Using the hotstick, slide the feed-thru onto the parking stand. Unlock the hotstick and back it off to allow space for tightening the eyebolt. Rotate the hotstick clockwise to tighten the eyebolt until snug. Do not overtighten. Release the hotstick.
