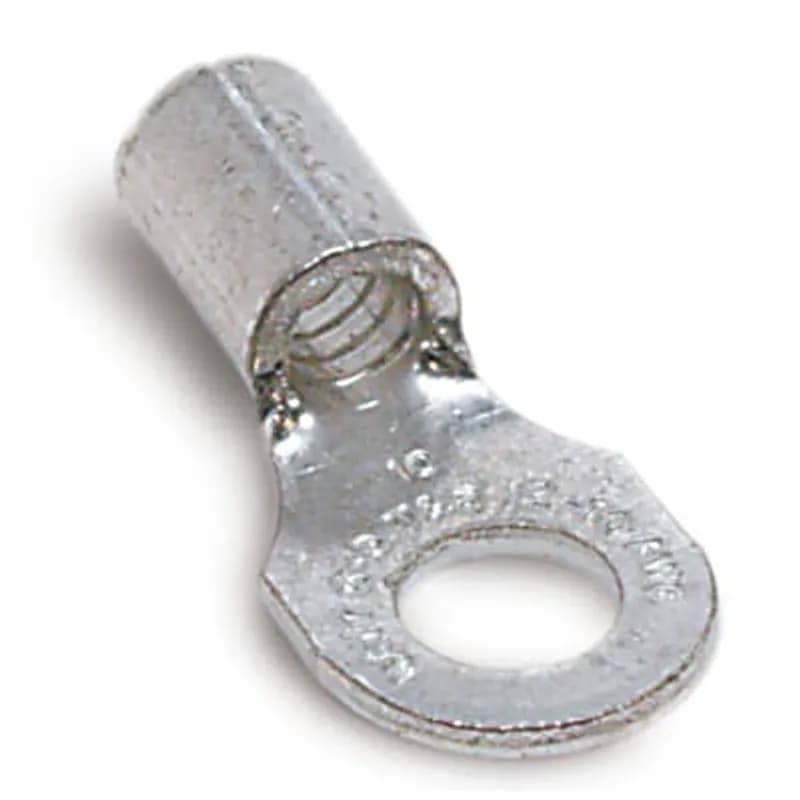

ABB - Installation Products K10-14R-MLG - Non-Insulated Ring Terminal, Wire Range 12-10 AWG, Bolt Hole 1/4 Inch, Length 1.05 Inches, Thickness of 0.0375 Inch, Copper, Tin Plated

ABB Installation Products K10-14R-MLG Non-Insulated Ring Terminal, Wire Range 12-10 AWG, Bolt Hole 1/4 Inch, Length 1.05…

UPC: 786210136622

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 1000

Multiplier: 1000

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB K10-14R-MLG is a non-insulated ring terminal designed for reliable electrical connections in industrial settings. Manufactured by ABB - Installation Products, this terminal is constructed from copper for excellent conductivity and durability. It features a tin plating for enhanced corrosion resistance, ensuring a stable connection over time. Specifically, the K10-14R-MLG accommodates wire ranges from 12 to 10 AWG, making it suitable for medium-gauge electrical wiring applications. The bolt hole size is 1/4 inch, which is a common standard for many electrical components and grounding points. With a terminal length of 1.05 inches and a material thickness of 0.0375 inches, this ring terminal provides a secure and substantial connection point. Its non-insulated design allows for direct contact with the mating surface, often used in applications where insulation is not required or is provided by the surrounding components. The UNSPSC code for this product is 39121432, classifying it under electrical connectors and terminals. This terminal is a practical choice for applications requiring secure wire termination to studs or bolts, such as in control panels, power distribution systems, and equipment wiring where a positive mechanical and electrical connection is paramount. Ensure compatibility with your specific application's voltage and current requirements.
  • Manufacturer: ABB - Installation Products
  • SKU: K10-14R-MLG
  • Wire Range: 12-10 AWG
  • Bolt Hole Size: 1/4 Inch
  • Material: Copper, Tin Plated

Specifications

Material
Copper
Material
Copper, Tin Plated
Size
12-10 AWG (Wire Range), 1/4 Inch (Bolt Hole), 1.05 Inches (Length), 0.0375 Inch (Thickness)
Wire Size, Maximum
12-10 AWG
Wire Size, Minimum
12-10 AWG
Package Dimensions (L x W x H)
6 IN x 3.5 IN x 6 IN
Package Dimensions (L x W x H)
15.24 cm x 8.89 cm x 15.24 cm
Package Weight (Imperial)
0.0100 L
Package Weight (Metric)
0.0050 kg
