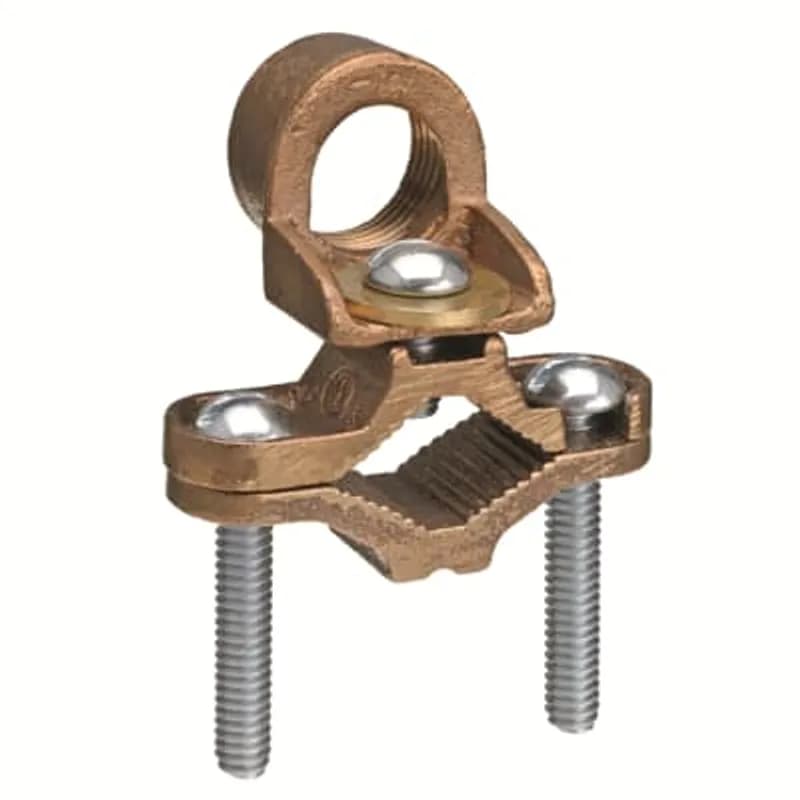

ABB - Installation Products JH-B1-10 - Bronze Ground Clamp Connector - Conductor Range #8 - #4 AWG, Conduit Size 1/2 Inch to 1 Inch, For Rigid/IMC Conduit

ABB Installation Products JH-B1-10 Bronze Ground Clamp Connector - Conductor Range #8 - #4 AWG, Conduit Size 1/2 Inch to 1…

UPC: 783786340804


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

Constructed from durable bronze, this clamp connector accommodates conductor sizes from #8 to #4 AWG while fitting conduit diameters ranging from 1/2 inch to 1 inch. The JH-B1 series is engineered for secure grounding in industrial, commercial, and utility applications where reliable electrical continuity is critical. Key specifications include a bronze body for corrosion resistance and long service life, with a clamping mechanism that ensures low-resistance connections. The connector meets NEC requirements for grounding and bonding, making it suitable for use in electrical distribution systems, panel boards, and equipment grounding applications. Installation requires no special tools—hand tightening is sufficient for proper torque, though a torque wrench may be used for verification. Typical applications include grounding rigid metal conduit (RMC), intermediate metal conduit (IMC), and electrical metallic tubing (EMT) systems. The JH-B1-10 is commonly deployed in industrial facilities, power distribution networks, and construction sites where compliance with electrical codes is mandatory. Its compact design allows for installation in tight spaces, while the bronze construction provides superior conductivity and resistance to environmental degradation. The JH-B1-10 is part of ABB’s Installation Products line, a trusted brand in electrical infrastructure solutions. Order by SKU JH-B1-10 for immediate delivery from authorized distributors.
  • Material: Corrosion-resistant bronze construction
  • Conductor Range: #8 to #4 AWG
  • Conduit Size: 1/2" to 1" (Rigid/IMC)
  • Hand-tight installation; no special tools required

Specifications

Conductor Material
Bronze
Conductor Size
8-4 AWG
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.2500 L
Package Weight (Metric)
0.1130 kg
