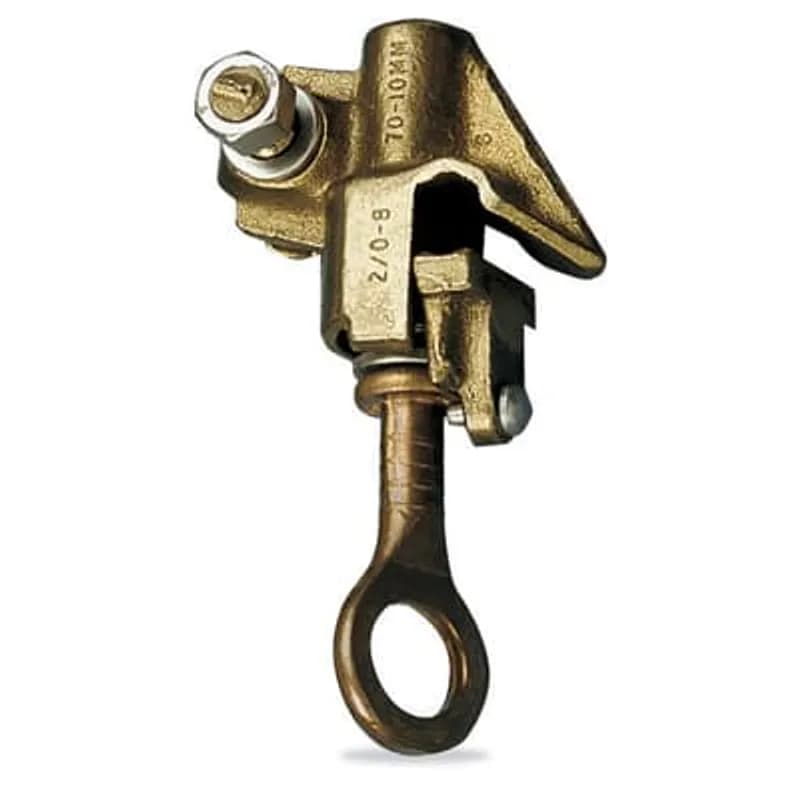

ABB - Installation Products HLC3974 - Bronze Type HLC - Hot Line Clamps for wire range Main AWG 400 - 6 Solid
ABB - Installation Products

HLC3974

UPC: 783786600243

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Overview

The ABB Bronze Type HLC Hot Line Clamp (SKU: HLC3974) is designed for secure and reliable connections in electrical distribution systems. Manufactured by ABB - Installation Products, this clamp is specifically engineered for use with solid conductors within the AWG 400 to AWG 6 range. Its robust bronze construction ensures durability and resistance to environmental factors common in overhead power line applications. This hot line clamp facilitates the connection of a main conductor to a tap conductor, allowing for live-line maintenance and installation without de-energizing the circuit. The Type HLC series is a proven component in utility infrastructure, providing a dependable electrical pathway. Its design prioritizes ease of installation while maintaining a secure grip on the conductor, crucial for preventing service interruptions and ensuring system integrity. Key Specifications: * **Manufacturer:** ABB - Installation Products * **Product Type:** Hot Line Clamp * **Model:** Type HLC * **Material:** Bronze * **Wire Range (Main):** AWG 400 - AWG 6 (Solid) * **UNSPSC Code:** 39121428 This clamp is an essential component for utility companies and electrical contractors performing work on live power lines, offering a reliable solution for conductor connections. Its application is critical in maintaining power flow during necessary maintenance or upgrades.
  • ABB Bronze Type HLC Hot Line Clamp
  • Designed for solid conductors
  • Wire range: Main AWG 400 - AWG 6
  • Durable bronze construction
  • Ideal for live-line applications

Specifications

Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.2400 L
Package Weight (Metric)
0.5630 kg
