ABB - Installation Products HL 601 - Elbow, Pull Corner, Conduit Size 1/2 Inch, Length 1.31 Inch, Opening Size 1.10 Inch, Die Cast Zinc

ABB Installation Products HL 601 Elbow, Pull Corner, Conduit Size 1/2 Inch, Length 1.31 Inch, Opening Size 1.10 Inch, Die…

UPC: 785991415803


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

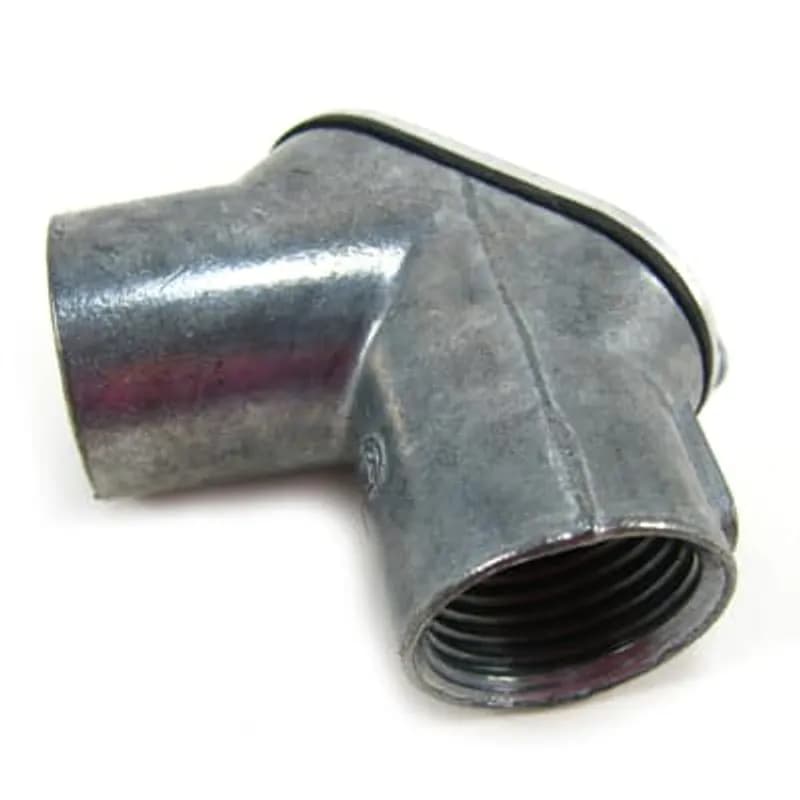

The ABB HL 601 Pull Corner Elbow (SKU: HL 601) is a die-cast zinc conduit fitting designed for efficient wire and cable routing in electrical installations. Engineered for 1/2-inch conduit systems, this fitting features a compact 1.31-inch length and a 1.10-inch opening size to facilitate smooth wire pulling with minimal friction. The yellow color provides high visibility during installation and inspection. This pull corner elbow simplifies conduit alignment around corners, reducing the need for additional bends or fittings. Its die-cast zinc construction ensures durability and corrosion resistance, making it suitable for industrial, commercial, and residential applications. The fitting is part of ABB’s Installation Products line, known for reliable conduit system components. Ideal for tight or confined spaces, the HL 601 maintains optimal conduit alignment while minimizing installation time and effort. It is a direct replacement for standard 1/2-inch conduit elbows where a pull corner design is required.
  • Die-cast zinc construction for durability and corrosion resistance
  • 1/2-inch conduit size compatibility
  • 1.31-inch length with 1.10-inch opening for smooth wire pulling
  • Yellow finish for high visibility during installation
  • Pull corner design reduces need for additional bends or fittings
  • Pull corner design for easier wire pulling and cable management

Specifications

Application
For Use with Rigid/IMC Conduits
Color
Yellow
Material
Zinc Die Cast
Material
Die Cast Zinc
Material Quality
Zinc Die Cast
Size
1/2 Inch
Standard
UL E23018
Type
Pulling Elbows
Package Dimensions (L x W x H)
5.12 IN x 3.62 IN x 3.5 IN
Package Dimensions (L x W x H)
13.0048 cm x 9.1948 cm x 8.89 cm
Package Weight (Imperial)
0.190 L
Package Weight (Metric)
0.086 kg

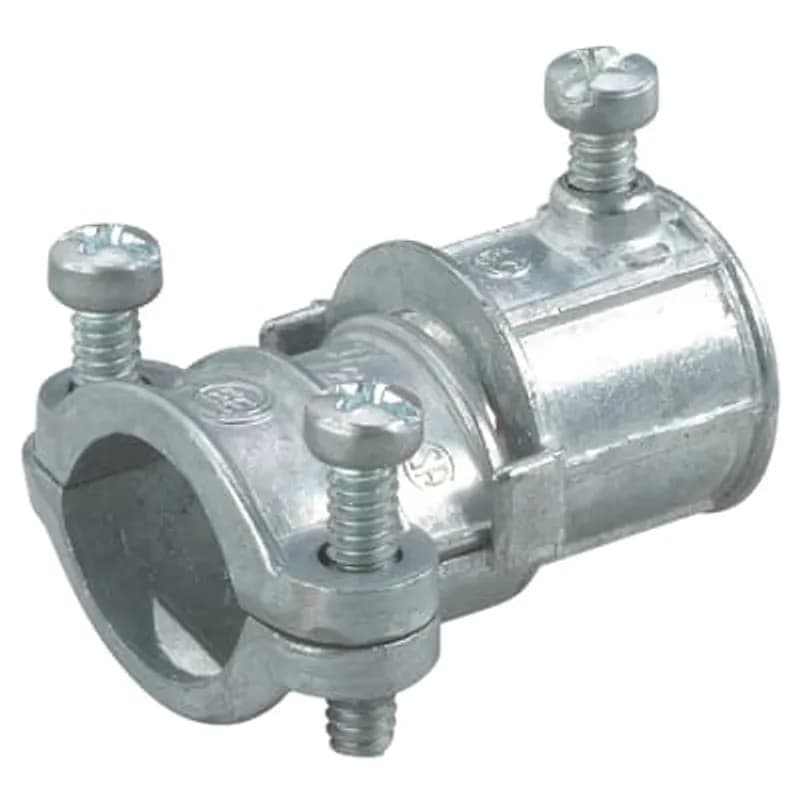

Coupling, Combination, Trade Size 1/2 Inch - 3/8 Inch, Clamping Range 0.15 Inch - 0.61 Inch, Length 1.16 Inch, Die Cast Zinc, EMT to Flex Set-Screw Type, Pack of 500
