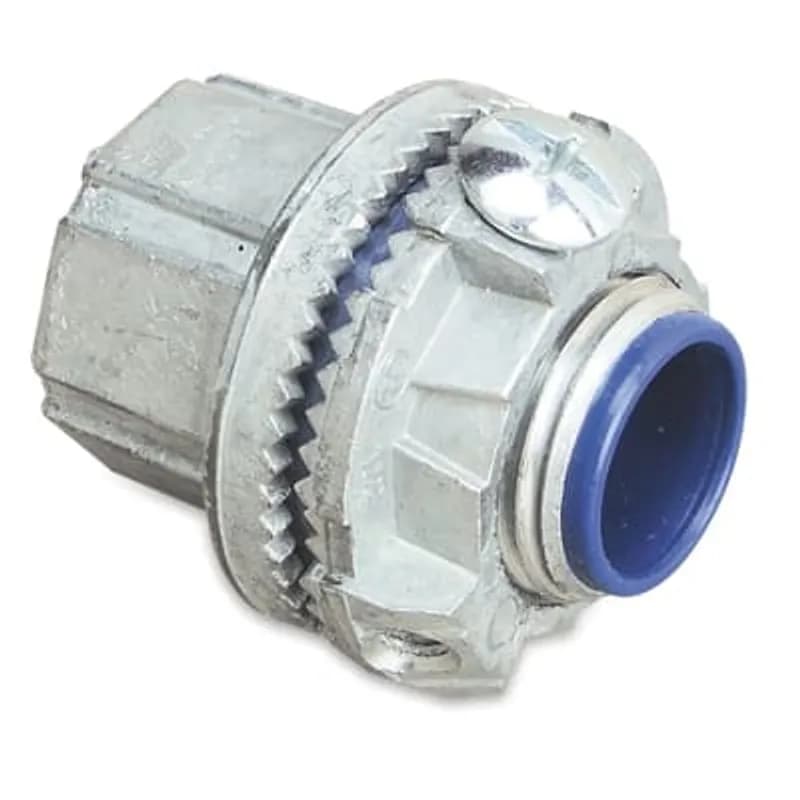

ABB - Installation Products H350GR-C - 3-1/2 Inch Hub with Grounding/Bonding Locknut, Insulated Throat for Threaded Rigid Metal Conduit

ABB Installation Products H350GR-C 3-1/2 Inch Hub with Grounding/Bonding Locknut, Insulated Throat for Threaded Rigid Metal…

UPC: 786210174112


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB H350GR-C is a 3-1/2 inch hub designed for secure and compliant termination of threaded rigid metal conduit. This essential component from ABB Installation Products features an insulated throat, providing crucial protection against wire abrasion and damage during installation and throughout the conduit system's operational life. The integrated grounding and bonding locknut ensures a reliable electrical connection, meeting stringent safety standards for grounding and bonding applications. This hub is specifically engineered for use with 3-1/2 inch threaded rigid metal conduit, facilitating a robust and secure connection point within electrical infrastructure. Its construction prioritizes durability and electrical integrity, making it suitable for industrial environments where reliable conduit systems are paramount. The H350GR-C simplifies the process of connecting conduit to enclosures or equipment, offering a straightforward yet effective solution. The grounding/bonding locknut is a key feature, ensuring that the conduit system is properly bonded to ground, which is critical for safety and the prevention of electrical hazards. The insulated throat further enhances the system's safety by preventing potential shorts or damage to conductors. This product is a vital part of any industrial electrical installation requiring secure and code-compliant conduit connections.
  • 3-1/2 inch hub size for threaded rigid metal conduit
  • Insulated throat protects wires from abrasion
  • Includes grounding and bonding locknut for secure electrical connection
  • Designed for industrial electrical infrastructure
  • Manufactured by ABB Installation Products

Specifications

Application
For Use with Rigid/IMC Conduit
Material Quality
Zinc
Special Features
Hubs & Accessories
Standard
CSA, UL E23018
Trade Size
3-1/2 in
Type
Rigid and Intermediate Metal Conduit Fittings
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
2.9600 L
Package Weight (Metric)
1.3430 kg
