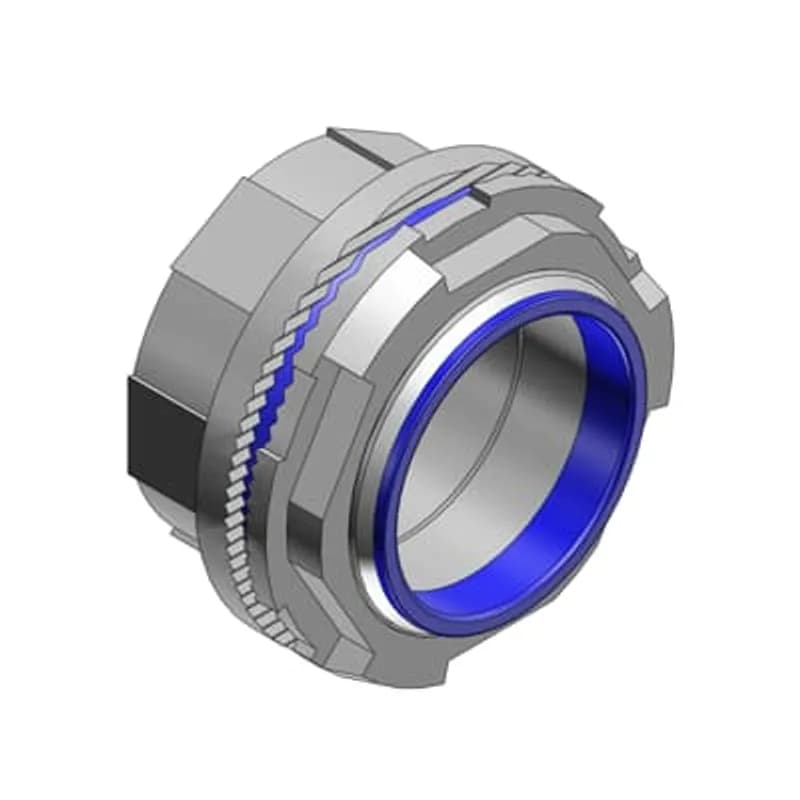

ABB - Installation Products H200-TB - 2 Inch Zinc Hub Connector with Thermoplastic Insulating Throat, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit
More images

ABB Installation Products H200-TB 2 Inch Zinc Hub Connector with Thermoplastic Insulating Throat, Sealing Ring Nitrile…

UPC: 786210504056


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB H200-TB is a 2-inch zinc hub connector designed for secure and reliable conduit connections in industrial electrical systems. Engineered for use with Rigid and Intermediate Metal Conduit (IMC), this connector features a durable zinc construction for corrosion resistance. The integrated thermoplastic insulating throat is rated to 105°C with a 94V-0 flammability rating, effectively protecting conductors from abrasion and damage. A Nitrile (BUNA-N) sealing ring ensures a watertight and dust-tight seal, preventing moisture, dirt, and contaminants from entering the enclosure. This hub meets NEMA sealing requirements for NEMA 3R, 4, and 13 enclosures. For enhanced corrosion resistance or NEMA 4X ratings, optional aluminum, chrome-plated, or 316 stainless steel hubs are available for sizes ½" through 2". The precision-machined tapered threads create a waterproof union, and the captive sealing ring design prevents buckling during installation. The locknut features peripheral slots and a hexagonal/splined body for fast, tool-assisted installation using wrenches or screwdrivers. The H200-TB is UL Listed per NEC 501.10(B) and CSA Certified for hazardous locations (Class II Groups E, F, G; Class III). Specifications for the H200-TB include a trade size of 2 inches, an overall diameter (A) of 3 ¼ inches, a body dimension (B) of 1 7/8 inches, a panel thickness (D) of ¼ inch, and a throat diameter (E) of 1 31/32 inches. The hub and locknut are made of zinc or copper-free aluminum, with the insulating throat made of thermoplastic and the sealing ring of Nitrile (BUNA "N").
  • 2-inch trade size zinc hub connector for Rigid/IMC conduit
  • Thermoplastic insulating throat rated to 105°C, 94V-0 flammability
  • Nitrile (BUNA-N) sealing ring for watertight and dust-tight connections
  • Meets NEMA 3R, 4, and 13 enclosure sealing requirements
  • UL Listed and CSA Certified for hazardous locations (Class II Groups E, F, G; Class III)

Specifications

Application
To Connect Threaded Metal Conduit to a Threadless Opening in a Box or Enclosure
Connection Type
Hub Connector for Rigid/IMC Conduit
Material
Zinc
Material
Zinc with Thermoplastic and Nitrile (BUNA-N)
Size
2 Inch
Special Features
Sealing Ring and Groove with Innovative Profile Better Than Standard O-Ring
Standard
UL E23018, CSA
Temperature Rating, Maximum
221 F
Temperature Rating, Maximum
105 C
Temperature Rating, Minimum
221 F
Temperature Rating, Minimum
105 C
Type
Hub Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0200 L
Package Weight (Metric)
0.4630 kg
PVC Coated Zinc Grounded Hub with Thermoplastic Insulated Throat, Pipe Size 3 Inch/78 Metric, Overall Diameter 4.38 Inch/111.25 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 2.97 Inch/75.44 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray

STG8-G

PVC Coated Zinc Grounded Hub with Thermoplastic Insulated Throat, Pipe Size 3 Inch/78 Metric, Overall Diameter 4.38 Inch/111.25 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 2.97 Inch/75.44 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray
Locknut, Grounding, Zinc Die Cast, Size 4 Inch, 3/0-6 Lug

170-G

Locknut, Grounding, Zinc Die Cast, Size 4 Inch, 3/0-6 Lug
3 Inch Zinc Hub Connector with Thermoplastic Insulating Throat, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit

H300-TB

3 Inch Zinc Hub Connector with Thermoplastic Insulating Throat, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit
5 Inch Zinc Hub Connector with Thermoplastic Insulating Throat, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit

H500-TB

5 Inch Zinc Hub Connector with Thermoplastic Insulating Throat, Sealing Ring Nitrile (BUNA-N) for Use with Rigid/IMC Conduit
3 Inch Threadless Connector, Malleable Iron for Use with Rigid/IMC Conduit

8821

3 Inch Threadless Connector, Malleable Iron for Use with Rigid/IMC Conduit
Fitting, Regular EMT Compression, Trade Size 2 Inches, Zinc Alloy

CI5816

Fitting, Regular EMT Compression, Trade Size 2 Inches, Zinc Alloy
Connector, Regular EMT Set Screw Offset Body, Trade Size 1/2 Inch, Offset 3/8 Inch, Zinc Alloy

CI5054

Connector, Regular EMT Set Screw Offset Body, Trade Size 1/2 Inch, Offset 3/8 Inch, Zinc Alloy
Fitting, Straight Liquidtight, Trade Size 2-1/2 Inches, Knockout Size 2-1/2 Inches, Length 3.54 Inch, Width 3.68 Inch, Thread Length 1.02 Inch, Zinc Alloy

CI6620

Fitting, Straight Liquidtight, Trade Size 2-1/2 Inches, Knockout Size 2-1/2 Inches, Length 3.54 Inch, Width 3.68 Inch, Thread Length 1.02 Inch, Zinc Alloy

Frequently Asked Questions

What is the maximum panel thickness for the H200-TB?

The H200-TB accommodates a maximum panel thickness of 1/4 inch.

What is the throat diameter of the H200-TB?

The throat diameter for the H200-TB is 1 31/32 inches.

What sealing ring material is used in the H200-TB?

The H200-TB uses a Nitrile (BUNA-N) sealing ring for environmental protection.

What is the temperature rating of the insulating throat?

The thermoplastic insulating throat has a temperature rating of 105°C.

What are the optional hub materials for the H200-TB?

Optional hub materials include aluminum (suffix A), chrome-plated (suffix CP), and 316 stainless steel (suffix GRSST).

What NEMA ratings does the H200-TB meet?

The H200-TB meets NEMA 3R, 4, and 13 enclosure sealing requirements. Chrome-plated and stainless steel versions also meet NEMA 4X and 12.

Is the H200-TB suitable for hazardous locations?

Yes, the H200-TB is CSA Certified for hazardous locations Class II Groups E, F, G and Class III.
