Contact for Pricing
Overview

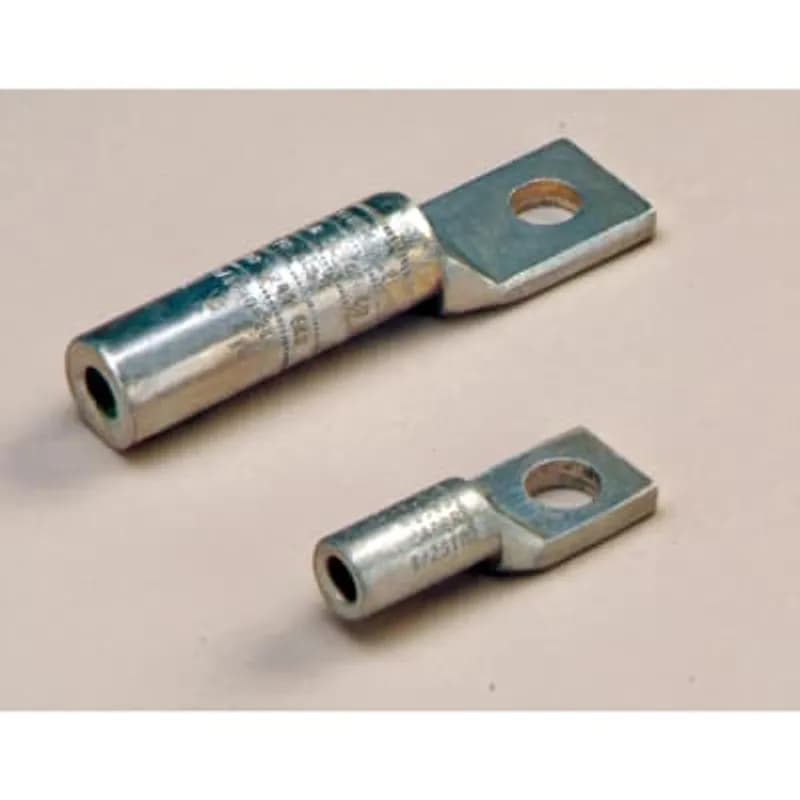

- Tinned-aluminum construction for conductivity and corrosion resistance
- Designed for Ranger2 Lug Cable Terminator applications
- Accommodates 220 AWG conductor size (#2 Stranded/Compressed or #1 Solid/Compact)
- Suitable for both aluminum and copper conductors
- Pad dimensions: 0.250" thick x 0.906" wide; Hole size: 0.562" diameter
Specifications
Application | For Aluminum or Copper Conductor |
Cable Size | #2 STR AWG , #2 COMPR AWG , #1 SOL AWG , #1 COMPT AWG |
Connection | Compression |
Connection Type | Spade Connector |
Insulation | None |
Material | Aluminum |
Material | Tinned-Aluminum |
Number Of Holes | 1 |
Series | Ranger2 Lug Cable Terminator |
Size | Length 3.188 inch, Pad .250 inch thick x .906 inch wide |
Size | 220 - #2 Stranded/Compressed or #1 Solid/Compact |
Special Features | Used for Ranger2 Lug Cable Terminator |
Type | One Hole Spade Connector |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
13682
Die for 12 Ton 13400 or 13642M Hydrualic Tool for Crimping 204210MT Dragon Tooth Terminals, Brown. .301/.289 Gaging
RDC1/0
Ratchet Drive Crimping Tool APPLICATIONS: Ratchet Drive Crimping Tool is for non-insulated terminals from 6 to 1/0 AWG and insulated terminals from 22 to 8 AWG. Rugged, compact, and lightweight. Requires minimum effort due to ratchet action, ensuring an excellent crimp every time. FEATURES: TYPE: Insulated and Uninsulated ACTION: Ratchet INSULATED USE: Terminals 22 to 8 AWG NON-INSULATED USE: Terminals 6 to 1/0 AWG MANUFACTURER: NSi Industries PART NUMBER: RDC 1/0 UPC: 662381055309
CD6A
U-Type Compression Die - Pink 1/0 AWG Copper - 2 AWG Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
F4-PS-W-NP
Non-Insulated Parallel Splice Connector For Wire Range #4 AWG, Circular Mil Range 33,100-52,600, Length 0.531 Diameter 0.41, Nickel Plated
AS-K1-H6
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
1SNK705010R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
1SNK705030R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
E989NNJ-5-HD
Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray
Frequently Asked Questions
What conductor sizes does the ABB H0220 connector support?
The ABB H0220 connector supports a conductor size of 220 AWG, specifically for #2 stranded/compressed or #1 solid/compact conductors.
What type of conductors can be used with the H0220 spade connector?
The H0220 spade connector is designed for use with both aluminum and copper conductors.
What is the intended application for the ABB H0220 connector?
The ABB H0220 connector is intended for use with the Ranger2 Lug Cable Terminator.
What are the dimensions of the pad on the H0220 spade connector?
The pad on the H0220 spade connector measures 0.250 inches thick by 0.906 inches wide.
What is the hole size of the H0220 spade connector?
The hole size of the H0220 spade connector is 0.562 inches in diameter.
