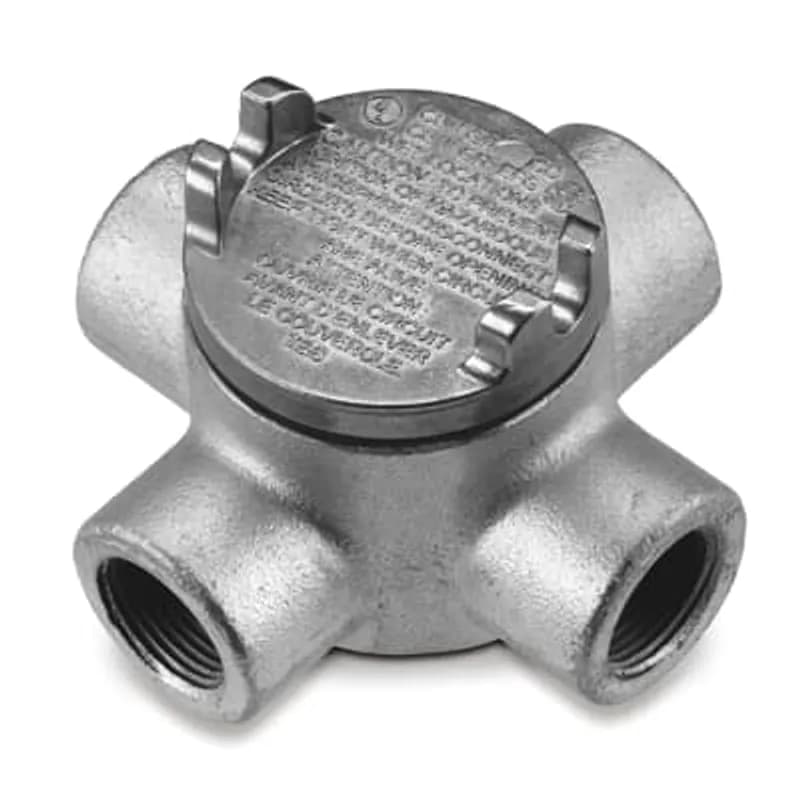

ABB - Installation Products GUAX24-TB - 3/4 Inch GUAX Hazardous Location Conduit Outlet Box, Box Ductile Iron Zinc Plated, Cover Die Cast Aluminum, 5.3 Cubic Inch

ABB Installation Products GUAX24-TB 3/4 Inch GUAX Hazardous Location Conduit Outlet Box, Box Ductile Iron Zinc Plated, Cover…

UPC: 786210981802

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB GUAX24-TB is a 3/4 inch conduit outlet box designed for hazardous locations. Constructed with a durable ductile iron body, zinc-plated for corrosion resistance, this box ensures reliable performance in challenging industrial environments. The cover is made from die-cast aluminum, providing a robust seal against external elements. With a generous internal volume of 5.3 cubic inches, the GUAX24-TB offers ample space for wiring connections and terminations, facilitating easier installation and maintenance. This product, manufactured by ABB - Installation Products, is suitable for applications requiring explosion-proof or intrinsically safe enclosures. Its robust construction and specific design for hazardous environments make it a dependable choice for electrical installations where safety and reliability are paramount. The GUAX24-TB is engineered to meet the stringent requirements of industries such as oil and gas, chemical processing, and manufacturing facilities where flammable or explosive atmospheres may be present. The combination of ductile iron and die-cast aluminum materials ensures longevity and protection against potential hazards. This conduit box is a critical component for maintaining the integrity and safety of electrical systems in classified locations, adhering to industry standards for hazardous area equipment.
  • 3/4 Inch trade size for standard conduit systems
  • Durable ductile iron body with zinc plating for corrosion resistance
  • Die-cast aluminum cover for robust enclosure
  • 5.3 cubic inch internal volume for ample wiring space
  • Designed for hazardous locations, ensuring safety and reliability

Specifications

Application
GUA Boxes Can Be Used for Hazardous Location Conduit Runs for the Following: (1) Allows for Mounting of Fixutre Outlets When Used with Appropriate Covers, (2) Provides Easy Access to Wiring, (3) Provides Junction In Conduit for Wire Pulling and Splices, (4) Changes Direction In Rigid Conduit Systems, (5) Attaches Two or More Pieces of Conduit Long Runs, (6) Guards Against Damage to Wires In Rigid Conduit
Finish
Zinc Plated
Hub Size
3/4
Material Quality
Ductile Iron
Special Features
All Hubs Have a Minimum of Five Full Threads and Integral Bushing
Standard
UL E202368, CSA
Type
GUA Conduit Outlet Boxes & Covers-Explosionproof
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.9000 L
Package Weight (Metric)
0.8620 kg
