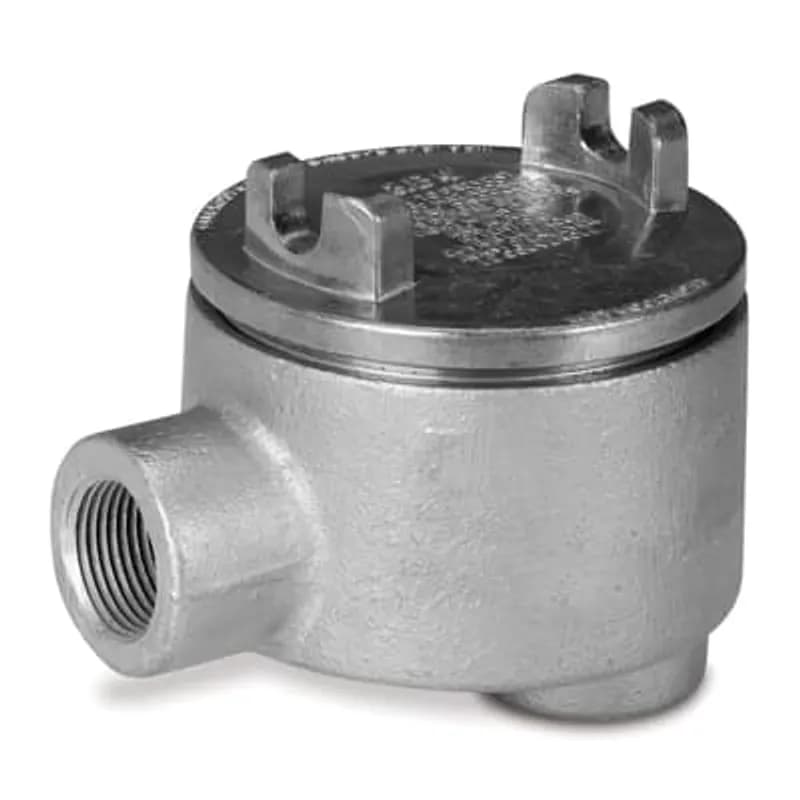

ABB - Installation Products GUAB26-TB - 3/4 Inch GUAB Hazardous Location Conduit Outlet Box with Cover, Box Ductile Iron Zinc Plated, Cover Die Cast Aluminum, 13.5 Cubic Inch
More images

ABB Installation Products GUAB26-TB 3/4 Inch GUAB Hazardous Location Conduit Outlet Box with Cover, Box Ductile Iron Zinc…

UPC: 786210344423


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB GUAB26-TB is a 3/4 inch hazardous location conduit outlet box designed for explosive atmospheres. Constructed from Grade 60-45-10 ductile iron with a zinc-plated finish and aluminum acrylic paint, the box provides corrosion resistance in harsh industrial environments. With an internal volume of 13.5 cubic inches, this outlet box accommodates wiring, splices, and junction points in rigid conduit systems. All hubs include a minimum of five full threads and integral bushings for secure conduit connections. An internal grounding screw ensures proper electrical continuity. The GUAB26-TB meets UL514A and UL886 standards for wet locations when used with gasketed covers. Typical applications include chemical processing plants, oil and gas facilities, and other industrial settings where explosive gases or vapors may be present. The box is suitable for Class I, Division 2 hazardous locations per NEC standards and supports NEMA 3, 4, 7 CD, and 9 EFG ratings. It serves multiple functions: mounting fixture outlets, providing junction points for wire pulling, changing conduit direction, attaching multiple conduit runs, and protecting wires from damage. The 3/4 inch NPT hub size and 2-inch access opening diameter accommodate standard rigid conduit installations.
  • 3/4 inch NPT hub size with minimum five full threads and integral bushing
  • 13.5 cubic inch internal volume for wiring and splices
  • Ductile iron body with zinc-plated finish and aluminum acrylic paint for corrosion resistance
  • Internal grounding screw for electrical continuity
  • Suitable for Class I, Division 2 hazardous locations

Specifications

Application
GUA Boxes Can Be Used for Hazardous Location Conduit Runs for The Following: (1) Allows for Mounting of Fixutre Outlets When Used with Appropriate Covers, (2) Provides Easy Access to Wiring, (3) Provides Junction In Conduit for Wire Pulling and Splices, (4) Changes Direction In Rigid Conduit Systems, (5) Attaches Two or More Pieces of Conduit Long Runs, (6) Guards Against Damage to Wires In Rigid Conduit
Finish
Zinc Plated
Hub Size
3/4
Material
Ductile Iron, Die Cast Aluminum
Material Quality
Ductile Iron
Series
GUAB
Size
3/4 Inch
Special Features
All Hubs Have a Minimum of Five Full Threads and Integral Bushing
Standard
UL E202368, CSA
Type
GUA Conduit Outlet Boxes & Covers-Explosionproof
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
2.5600 L
Package Weight (Metric)
1.1610 kg
