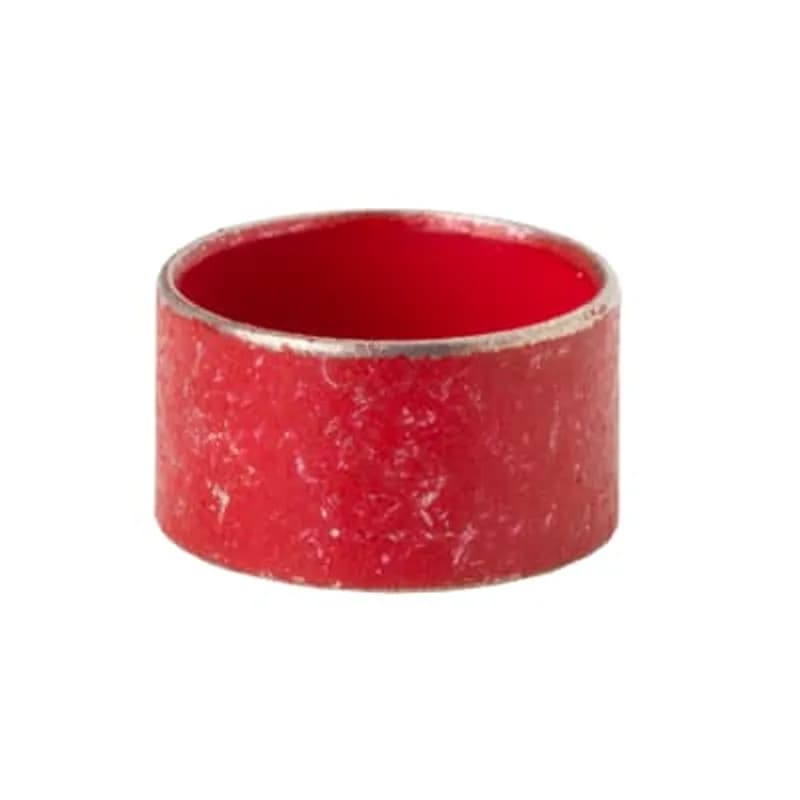

ABB - Installation Products GSC405 - Two Piece Outer Sleeve Connector for Hexagonal Range, Length 1/4 Inch/6.4mm, Inner Diameter .405 Inches/10.28mm, Outer Diameter .453 Inches/11.50mm, Color Red, Soft Bronze, Tin Plated

ABB Installation Products GSC405 Two Piece Outer Sleeve Connector for Hexagonal Range, Length 1/4 Inch/6.4mm, Inner…

UPC: 786210814025


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 1000

Multiplier: 1000

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB GSC405 Two Piece Outer Sleeve Connector is a precision-engineered connector designed for terminating and joining hexagonal cables in industrial and electrical installations. This connector features a 1/4 inch (6.4 mm) length with an inner diameter of 0.405 inches (10.28 mm) and an outer diameter of 0.453 inches (11.50 mm), ensuring compatibility with standard hexagonal cable ranges. The connector is constructed from soft bronze and finished with a tin plating, providing corrosion resistance and reliable conductivity. The red color coding simplifies identification in complex wiring systems. This two-piece design allows for easy installation without the need for specialized tools, reducing labor time and improving workflow efficiency. The GSC405 is suitable for use in control panels, junction boxes, and other electrical enclosures where secure, long-lasting connections are required. The UNSPSC code 39121432 classifies this product under electrical connectors, making it a standard component for industrial electrical systems. The tin plating enhances durability and ensures consistent performance in varying environmental conditions, including high humidity and temperature fluctuations. This connector is ideal for applications requiring reliable signal transmission and mechanical stability.
  • Two-piece design for easy installation without specialized tools
  • Inner diameter: 0.405 inches (10.28 mm), outer diameter: 0.453 inches (11.50 mm)
  • Length: 1/4 inch (6.4 mm) for compact installations
  • Soft bronze construction with tin plating for corrosion resistance and conductivity
  • Red color coding for quick identification in wiring systems

Specifications

Color
Red
Material
Soft Bronze
Material
Soft Bronze, Tin Plated
Size
Length 1/4 Inch/6.4mm, Inner Diameter .405 Inches/10.28mm, Outer Diameter .453 Inches/11.50mm
Special Features
Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Outer sleeve for the Hexagonal Range (the outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications
Type
Two-Piece Outer Sleeve Connector
Package Dimensions (L x W x H)
6.3 IN x 3.2 IN x 4.69 IN
Package Dimensions (L x W x H)
16.002 cm x 8.128 cm x 11.9126 cm
Package Weight (Imperial)
0.0010 L
Package Weight (Metric)
0.0010 kg
