UPC: 786210813967
Documents & Media
Contact for Pricing
Minimum Qty: 1000
Multiplier: 1000
*Contact for lower quantities*
Overview

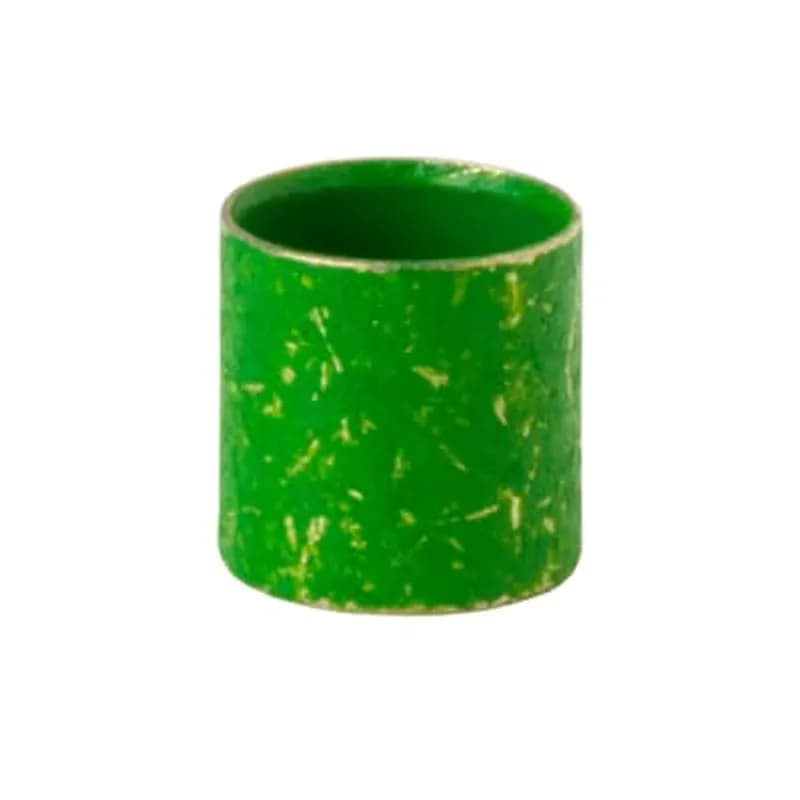

- Two-piece design for easy wire insertion and secure crimping
- Soft bronze construction with tin plating for corrosion resistance
- Compact 1/4" (6.4 mm) length fits tight spaces
- Inner diameter .297" (7.54 mm), outer diameter .335" (8.50 mm)
- Compatible with standard hexagonal cable glands and connectors
Specifications
Color | Green |
Material | Soft Bronze |
Material | Soft Bronze, Tin Plated |
Size | Length 1/4 Inch/6.4mm, Inner Diameter .297 Inches/7.54mm, Outer Diameter .335 Inches/8.50mm |
Special Features | Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Outer sleeve for the Hexagonal Range (the outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications |
Type | Two-Piece Outer Sleeve Connector |
Package Dimensions (L x W x H) | 4 IN x 4 IN x 3 IN |
Package Dimensions (L x W x H) | 10.16 cm x 10.16 cm x 7.62 cm |
Package Weight (Imperial) | 0.0010 L |
Package Weight (Metric) | 0.0010 kg |
GSC219
Two Piece Outer Sleeve Connector for Hexagonal Range, Length 1/4 Inch/6.4mm, Inner Diameter .219 Inches/5.56mm, Outer Diameter .250 Inches/6.35mm, Color Green, Soft Bronze, Tin Plated
GSC327
Two Piece Outer Sleeve Connector for Hexagonal Range, Length 1/4 Inch/6.4mm, Inner Diameter .327 Inches/8.30mm, Outer Diameter .372 Inches/9.45mm, Color Silver, Soft Bronze, Tin Plated
7401
Cable Grommet with Strain Relief, 16mm Fixing Hole Diameter, 24mm Overall Diameter, Comes with Cable Tie with 4.0 to 9.0mm Cable Range, Neoprene, Black
7404
Cable Grommet with Strain Relief, 32mm Fixing Hole Diameter, 43mm Overall Diameter, Comes with Cable Tie with 18.0 to 25.0mm Cable Range, Neoprene, Black7402
Cable Grommet with Strain Relief, 19mm Fixing Hole Diameter, 28mm Overall Diameter, Comes with Cable Tie with 7.0 to 12.0mm Cable Range, Neoprene, Black7403
Cable Grommet with Strain Relief, 25mm Fixing Hole Diameter, 34mm Overall Diameter, Comes with Cable Tie with 12.0 to 18.0mm Cable Range, Neoprene, BlackFrequently Asked Questions
What is the inner diameter of the GSC297?
The inner diameter is .297 inches (7.54 mm).
What is the outer diameter of the GSC297?
The outer diameter is .335 inches (8.50 mm).
What is the length of the GSC297 connector?
The length is 1/4 inch (6.4 mm).
Is the GSC297 connector color-coded?
Yes, the GSC297 connector is green.
What is the material of the GSC297 connector?
The GSC297 is made of soft bronze with a tin plating for corrosion resistance.
What type of cable ranges is the GSC297 designed for?
The GSC297 is designed for hexagonal cable ranges.
Does the GSC297 require special tools for installation?
Yes, a crimp or compression tool is typically required for installation.
