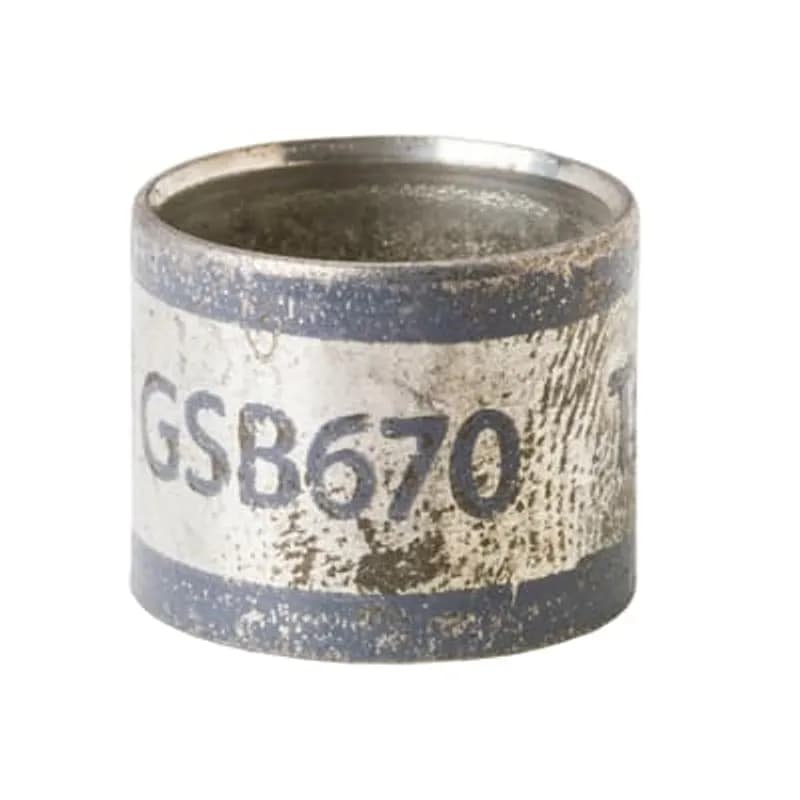

ABB - Installation Products GSB670 - Two Piece Inner Sleeve Connector for Round Range, Length 11.2mm, Inner Diameter 17.02mm, Outer Diameter 19.05mm, Color Silver, Copper Alloy

ABB Installation Products GSB670 Two Piece Inner Sleeve Connector for Round Range, Length 11.2mm, Inner Diameter 17.02mm…

UPC: 786210813318


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB GSB670 is a two-piece inner sleeve connector designed for secure, reliable terminations in round cable applications. Constructed from copper alloy with a silver finish, it provides excellent conductivity and corrosion resistance for long-term performance. The connector measures 11.2mm in length with an inner diameter of 17.02mm and an outer diameter of 19.05mm, making it compatible with standard round cable ranges. This two-piece design simplifies installation by allowing the sleeve to be pre-positioned around the conductor before crimping, reducing assembly time and improving consistency. Typical applications include power distribution, industrial machinery, and renewable energy systems where stable electrical connections and mechanical integrity are critical. The silver-plated copper alloy construction ensures low contact resistance and resistance to oxidation, maintaining signal integrity in high-current or high-vibration environments. Suitable for use with copper conductors, the GSB670 is a cost-effective solution for professional electrical installations requiring precision and durability.
  • Two-piece design for simplified installation and consistent crimping
  • Silver-plated copper alloy for high conductivity and corrosion resistance
  • 11.2mm length, 17.02mm inner diameter, 19.05mm outer diameter
  • Compatible with standard round cable ranges
  • Ideal for power distribution, industrial machinery, and renewable energy systems

Specifications

Color
Gray
Material
Copper
Special Features
Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Circular Range (the corresponding outer sleeve is crimped with a hydraulic head and the result is a circular-shaped crimp), for grounding multiple or overall shielded cables. The sleeves are color coded according to their size. Applications in communications, aerospace, and electronics
Type
Two-Piece Inner Sleeve Connector
Package Dimensions (L x W x H)
3 IN x 3 IN x 3.5 IN
Package Dimensions (L x W x H)
7.62 cm x 7.62 cm x 8.89 cm
Package Weight (Imperial)
0.0200 L
Package Weight (Metric)
0.0090 kg
