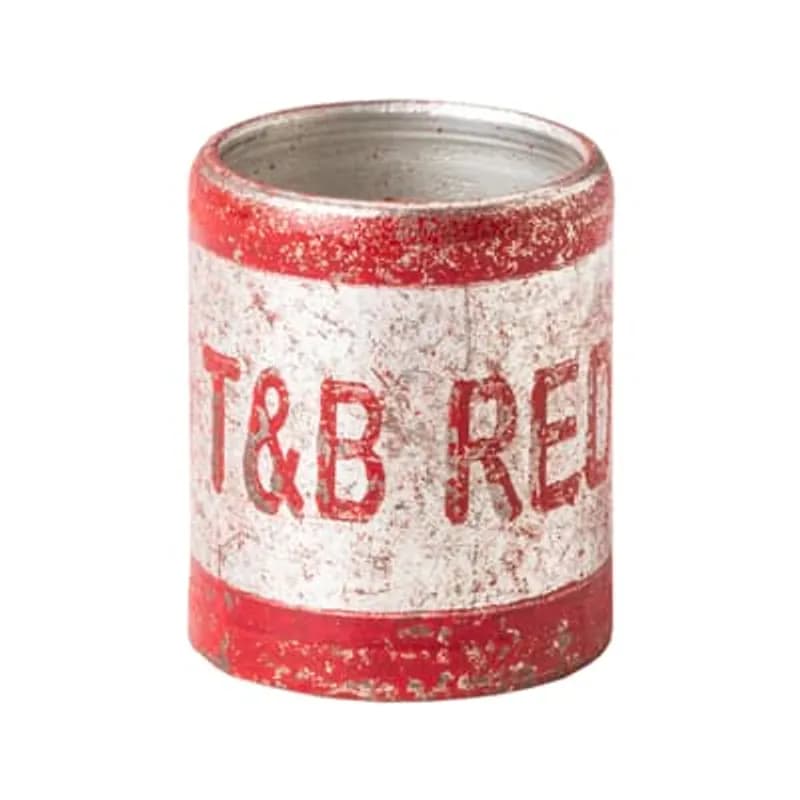

ABB - Installation Products GSB430NP - Two Piece Inner Sleeve Connector for Round Range, Length .6 Inches/15.2mm, Inner Diameter .430 Inches/10.92mm, Outer Diameter .500 Inches/12.70mm, Color Red, Copper Alloy, Nickel Plated

ABB Installation Products GSB430NP Two Piece Inner Sleeve Connector for Round Range, Length .6 Inches/15.2mm, Inner…

UPC: 786209896988


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 25000

Multiplier: 25000

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB GSB430NP is a two-piece inner sleeve connector designed for round range applications. Constructed from a durable copper alloy and finished with nickel plating, this connector ensures reliable electrical and mechanical connections. Its precise dimensions are critical for proper fit and function: an inner diameter of 0.430 inches (10.92mm) and an outer diameter of 0.500 inches (12.70mm), with a compact length of 0.6 inches (15.2mm). The vibrant red color aids in identification and organization within electrical systems. This connector is suitable for applications requiring a secure joining of round conductors or components. The nickel plating offers enhanced corrosion resistance and conductivity, making it a dependable choice for various industrial environments. Manufacturer: ABB - Installation Products. SKU: GSB430NP. UNSPSC Code: 39121432. Key Specifications: - Type: Two Piece Inner Sleeve Connector - Range: Round - Length: 0.6 Inches / 15.2mm - Inner Diameter: 0.430 Inches / 10.92mm - Outer Diameter: 0.500 Inches / 12.70mm - Material: Copper Alloy - Plating: Nickel Plated - Color: Red
  • Two-piece inner sleeve connector for round range applications
  • Constructed from durable copper alloy with nickel plating
  • Precise dimensions: 0.430" inner diameter, 0.500" outer diameter, 0.6" length
  • Red color for easy identification
  • Provides reliable electrical and mechanical connections

Specifications

Application
for Grounding, Terminating and Insulating Shielded and Coaxial Cable
Color
Red
Material
Hard Bronze
Material
Copper alloy, nickel plated
Type
Two-Piece Inner Sleeve Connector
Package Dimensions (L x W x H)
3 IN x 3 IN x 3.5 IN
Package Dimensions (L x W x H)
7.62 cm x 7.62 cm x 8.89 cm
Package Weight (Imperial)
0.0100 L
Package Weight (Metric)
0.0050 kg
