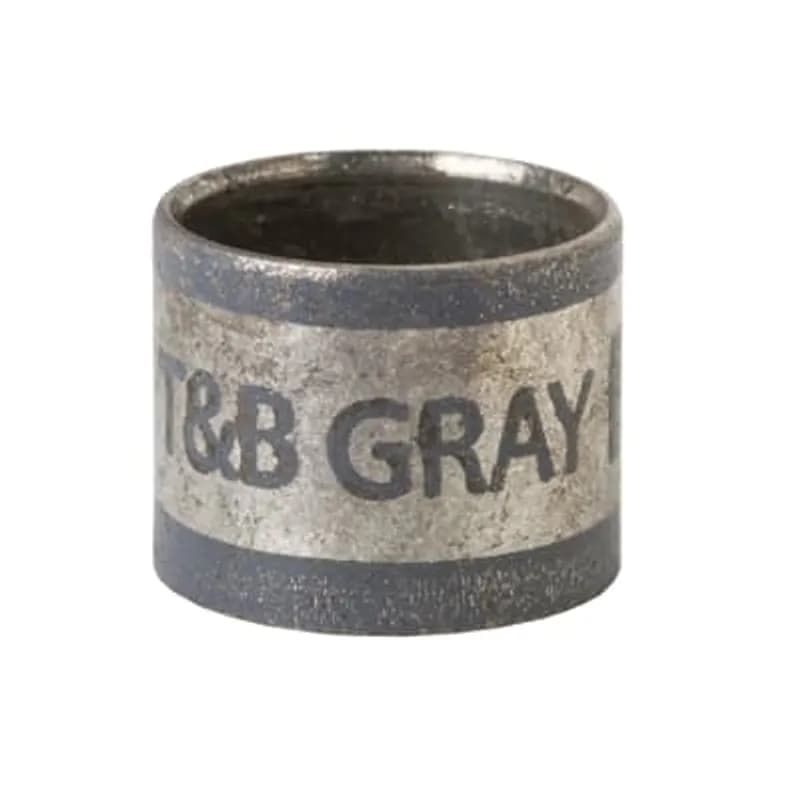

ABB - Installation Products GSB266 - Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .266 Inches/6.75mm, Outer Diameter .297 Inches/7.54mm, Color Silver, Hard Bronze, Tin Plated
ABB - Installation Products

GSB266

UPC: 786210813219

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 10000

Multiplier: 10000

*Contact for lower quantities*

Overview

The ABB Installation Products GSB266 is a two-piece inner sleeve connector designed for hexagonal range applications. Measuring 5/16" (7.9mm) in length with an inner diameter of .266" (6.75mm) and outer diameter of .297" (7.54mm), this connector provides a secure fit for standard hexagonal fasteners. Constructed from hard bronze and finished with tin plating, it offers corrosion resistance and reliable electrical conductivity in industrial environments. This connector is ideal for use in electrical installations, control panels, and machinery where a durable, low-resistance connection is required. The two-piece design simplifies installation by allowing the sleeve to be placed over the conductor before crimping, ensuring a tight, vibration-resistant joint. The tin plating enhances durability and prevents oxidation, maintaining long-term performance in harsh conditions. Compatible with standard hexagonal terminals, the GSB266 is a cost-effective solution for terminating wires in control systems, switchgear, and other industrial applications. Its compact dimensions make it suitable for tight spaces, while the bronze material ensures mechanical strength and thermal stability.
  • Two-piece design for easy installation over conductors
  • 5/16" (7.9mm) length with .266" (6.75mm) inner diameter
  • Hard bronze construction with tin plating for corrosion resistance
  • Outer diameter .297" (7.54mm) for secure fit on hexagonal terminals
  • Suitable for electrical and industrial applications requiring durable connections

Specifications

Color
Silver
Color
Gray
Material
Hard Bronze
Material
Hard Bronze, Tin Plated
Series
GSB266
Size
Length 5/16 Inch/7.9mm, Inner Diameter .266 Inches/6.75mm, Outer Diameter .297 Inches/7.54mm
Special Features
Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Hexagonal Range (the corresponding outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications
Type
Two-Piece Inner Sleeve Connector
Package Dimensions (L x W x H)
4 IN x 4 IN x 3 IN
Package Dimensions (L x W x H)
10.16 cm x 10.16 cm x 7.62 cm
Package Weight (Imperial)
0.0010 L
Package Weight (Metric)
0.0010 kg
