UPC: 786210813127
Documents & Media
Contact for Pricing
Minimum Qty: 20000
Multiplier: 20000
*Contact for lower quantities*
Overview

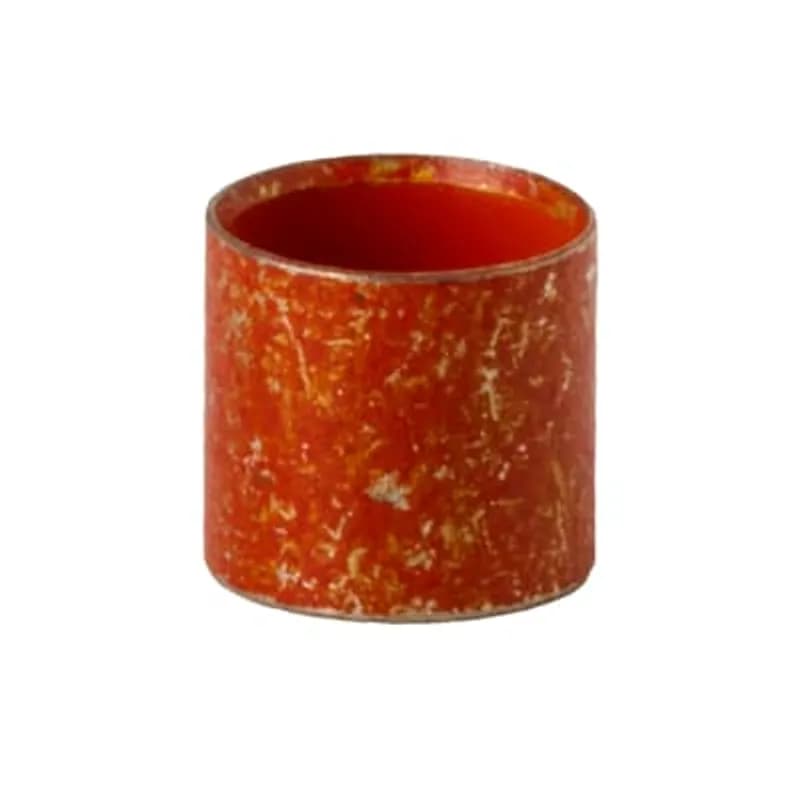

- Two-piece design for secure hexagonal cable termination
- 5/16" (7.9 mm) length with 0.205" (5.20 mm) inner diameter
- Hard bronze construction with tin plating for corrosion resistance
- Orange color for easy identification in industrial settings
- Outer diameter 0.245" (6.22 mm) for compatibility with standard hexagonal cables
Specifications
Color | Orange |
Material | Hard Bronze |
Special Features | Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Hexagonal Range (the corresponding outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications |
Type | Two-Piece Inner Sleeve Connector |
Package Dimensions (L x W x H) | 3.5 IN x 3 IN x 3 IN |
Package Dimensions (L x W x H) | 8.89 cm x 7.62 cm x 7.62 cm |
Package Weight (Imperial) | 0.0010 L |
Package Weight (Metric) | 0.0010 kg |
GSB266
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .266 Inches/6.75mm, Outer Diameter .297 Inches/7.54mm, Color Silver, Hard Bronze, Tin Plated
MWNO2214
Wire Connector, Screw On, Orange, 22-14 AWG wire size, 3#22 AWG minimum wire combination, 3#16+1#18 AWG maximum wire combination, 100 per pack
2B1000
Copper Type 2B - Two-Bolt Connector without Spacer for Wire Range Main: 750 - 1000 kcmil Tap: 2 Sol. - 1000 kcmil , Bolt Size 15/16
1SHD
Set Screw Two-Piece Pressure Type Connector Solid Brass Insert with a Screw-on Insulating Cap Vibration Proof Visible Connection Insert Screw and Brass Barrel Only #18 - #122SHD
Set Screw Two-Piece Pressure Type Connector Solid Brass Insert with a Screw-on Insulating Cap Vibration Proof Visible Connection Insert Screw and Brass Barrel Only #16 - #10
GSB165NP
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .165 Inches/4.20mm, Outer Diameter .194 Inches/4.92mm, Color Silver, Hard Bronze, Nickel Plated
GSB165X
Two Piece Flared Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .165 Inches/4.20mm, Outer Diameter .194 Inches/4.92mm, Color Silver, Hard Bronze, Tin Plated
Frequently Asked Questions
What material is the GSB205 made from?
The connector is made from hard bronze with a tin plating finish for corrosion resistance.
What is the length of the GSB205 connector?
The GSB205 has a length of 5/16 inches (7.9 mm).
What is the outer diameter of the GSB205?
The outer diameter of the GSB205 is 0.245 inches (6.22 mm).
What color is the GSB205 connector?
The GSB205 connector is orange for easy identification.
What cable sizes does the GSB205 support?
The GSB205 is designed for hexagonal cables with an inner diameter of 0.205 inches (5.20 mm).
Is the GSB205 suitable for outdoor use?
The tin plating provides corrosion resistance, making it suitable for industrial environments.
