UPC: 786210813011
Documents & Media
Contact for Pricing
Minimum Qty: 1000
Multiplier: 1000
*Contact for lower quantities*
Overview

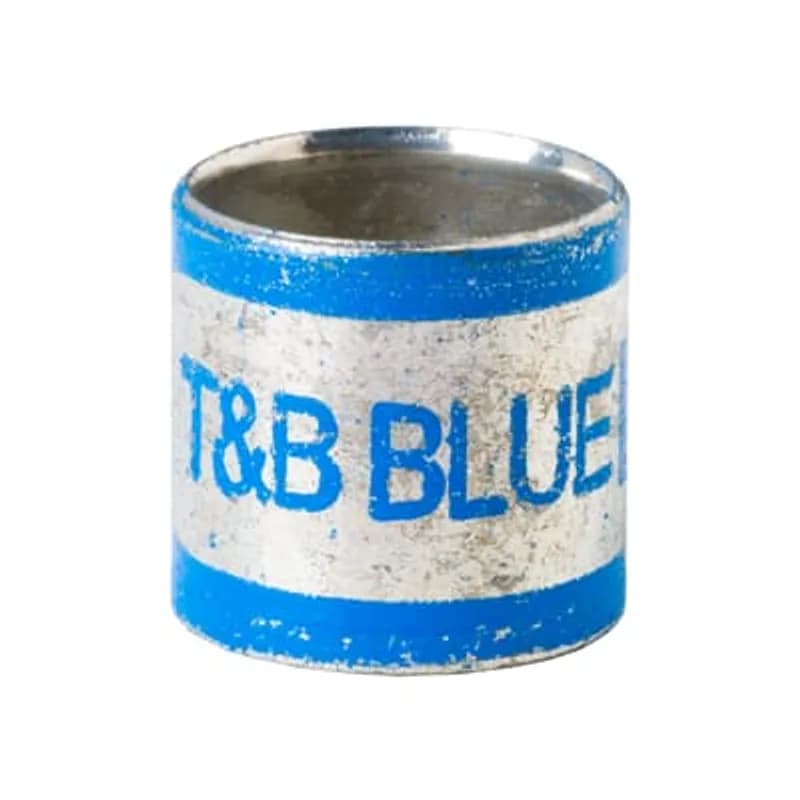

- Two-piece inner sleeve connector for hexagonal range
- Constructed from hard bronze with tin plating
- Length: 5/16 Inch (7.9mm)
- Inner Diameter: .146 Inches (3.78mm)
- Outer Diameter: .179 Inches (4.54mm)
- Color: Blue for easy identification
Specifications
Color | Blue |
Material | Hard Bronze |
Material | Hard Bronze, Tin Plated |
Series | GSB |
Size | Length 5/16 Inch/7.9mm, Inner Diameter .146 Inches/3.78mm, Outer Diameter .179 Inches/4.54mm |
Special Features | Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Hexagonal Range (the corresponding outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications |
Type | Two-Piece Inner Sleeve Connector |
Package Dimensions (L x W x H) | 3.5 IN x 3 IN x 3 IN |
Package Dimensions (L x W x H) | 8.89 cm x 7.62 cm x 7.62 cm |
Package Weight (Imperial) | 0.0010 L |
Package Weight (Metric) | 0.0010 kg |
GSB149NP
Two Piece Flared Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .146 Inches/3.78mm, Outer Diameter .179 Inches/4.54mm, Color Blue, Hard Bronze, Nickel Plated
GSB134 X
Two Piece Flared Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .134 Inches/3.40mm, Outer Diameter .156 Inches/4.00mm, Color Orange, Hard Bronze, Tin PlatedGSB149 X
Two Piece Flared Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .146 Inches/3.78mm, Outer Diameter .179 Inches/4.54mm, Color Blue, Hard Bronze, Tin Plated
GSB165
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .165 Inches/4.20mm, Outer Diameter .194 Inches/4.92mm, Color Silver, Hard Bronze, Tin PlatedGSB219
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .219 Inches/5.56mm, Outer Diameter .250 Inches/6.35mm, Color Silver, Hard Bronze, Tin Plated
GSB275
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 7.9mm, Inner Diameter 6.98mm, Outer Diameter 7.77mm, Color Orange, Hard Bronze, Tin PlatedFrequently Asked Questions
What are the dimensions of the GSB149 connector?
The GSB149 connector has a length of 5/16 Inch (7.9mm), an inner diameter of .146 Inches (3.78mm), and an outer diameter of .179 Inches (4.54mm).
What material is the ABB GSB149 connector made from?
The ABB GSB149 connector is made from hard bronze and features a tin plating.
What is the color of the GSB149 connector?
The GSB149 connector is blue.
What type of range is the GSB149 connector designed for?
The GSB149 connector is designed for hexagonal range applications.
