UPC: 786210812731
Documents & Media
Contact for Pricing
Minimum Qty: 1000
Multiplier: 1000
*Contact for lower quantities*
Overview

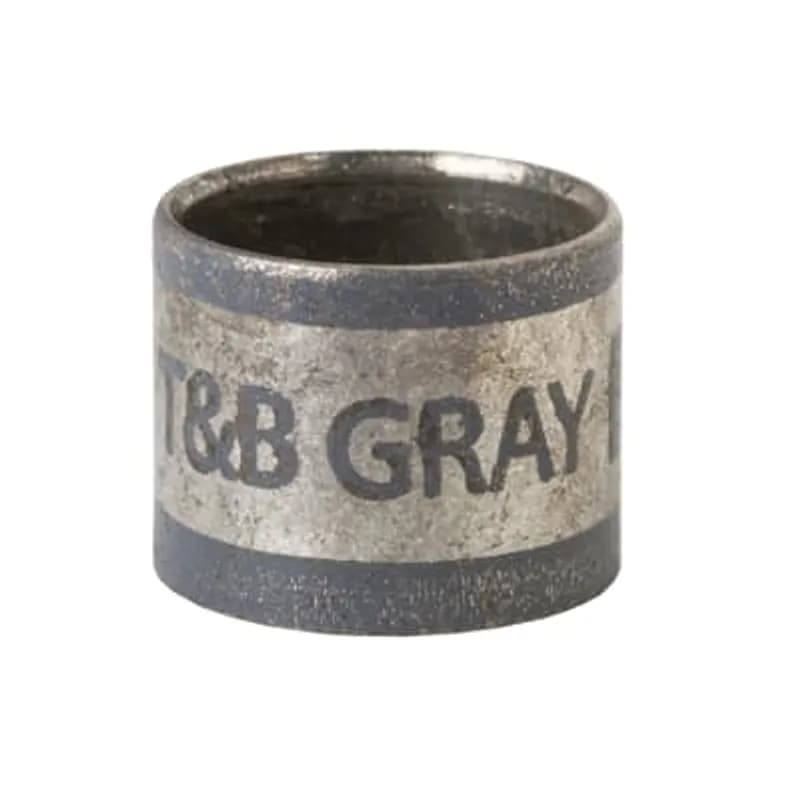

- Two-piece inner sleeve connector for hexagonal range
- Constructed from hard bronze with tin plating
- Dimensions: 5/16 Inch/7.9mm Length, .046 Inches/1.17mm Inner Diameter, .075 Inches/1.90mm Outer Diameter
- Color: Gray
- Manufacturer: ABB - Installation Products (SKU: GSB046)
Specifications
Color | Gray |
Material | Hard Bronze |
Material | Hard Bronze, Tin Plated |
Size | Length 5/16 Inch/7.9mm, Inner Diameter .046 Inches/1.17mm, Outer Diameter .075 Inches/1.90mm |
Special Features | Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Hexagonal Range (the corresponding outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications |
Type | Two-Piece Inner Sleeve Connector |
Package Dimensions (L x W x H) | 1.6 IN x 0.9 IN x 2.3 IN |
Package Dimensions (L x W x H) | 4.064 cm x 2.286 cm x 5.842 cm |
Package Weight (Imperial) | 0.0010 L |
Package Weight (Metric) | 0.0010 kg |
GSB128
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .128 Inches/3.25mm, Outer Diameter .152 Inches/3.86mm, Color Silver, Hard Bronze, Tin Plated
KV18-6LF-M
Insulated Vinyl Locking Fork Terminal for Wire Range 22-16 Stud Size #6, Red, Package of 1000
A 500-531
Tin Plated Aluminum Dual Rated Mechanical Lug #4 - 500 kcmil, Copper and Aluminum Temperature Rating of 90 Degrees C, Bolt 1/2 inch. Length 2-3/4 inch, Width 1-3/8 inch, Height 1-1/2 inch. Pad Thickness 5/16 inch with One 17/32 inch Diameter Hole. Tapped 7/8-14 UNF-2B. One Tin Plated Aluminum 7/8-14 x 1.062 Set Screw. 50 pieces
GSB134
Two Piece Inner Sleeve Connector for Hexagonal Range, Length 5/16 Inch/7.9mm, Inner Diameter .134 Inches/3.40mm, Outer Diameter .156 Inches/4.00mm, Color Orange, Hard Bronze, Tin PlatedFrequently Asked Questions
What is the color code for the GSB046 connector?
The color code for the GSB046 connector is Tin.
Are GSB046 parts free of burrs and sharp edges?
Yes, all parts, including GSB046, are manufactured to be free of burrs and sharp edges.
What is the maximum temperature for GSB046 tin plated parts?
Tin plated parts, like the GSB046, should not be exposed to temperatures exceeding 150 degrees Celsius.
What is the finish of the GSB046 connector?
The GSB046 connector has an electro tin plate finish, equivalent to MIL-T-10727A Type 1 or ASTM B545 Class A.
What material is the GSB046 connector made from?
The GSB046 connector is made from commercial bronze, conforming to ASTM B36 (UNS C22000) or ASTM B140 Alloy #B.
What is the color code for the GSB046 connector?
The color code for the GSB046 connector is Tin.
Are GSB046 parts free of burrs and sharp edges?
Yes, all parts, including GSB046, are manufactured to be free of burrs and sharp edges.
What is the maximum temperature for GSB046 tin plated parts?
Tin plated parts, like the GSB046, should not be exposed to temperatures exceeding 150 degrees Celsius.
What is the finish of the GSB046 connector?
The GSB046 connector has an electro tin plate finish, equivalent to MIL-T-10727A Type 1 or ASTM B545 Class A.
What material is the GSB046 connector made from?
The GSB046 connector is made from commercial bronze, conforming to ASTM B36 (UNS C22000) or ASTM B140 Alloy #B.
