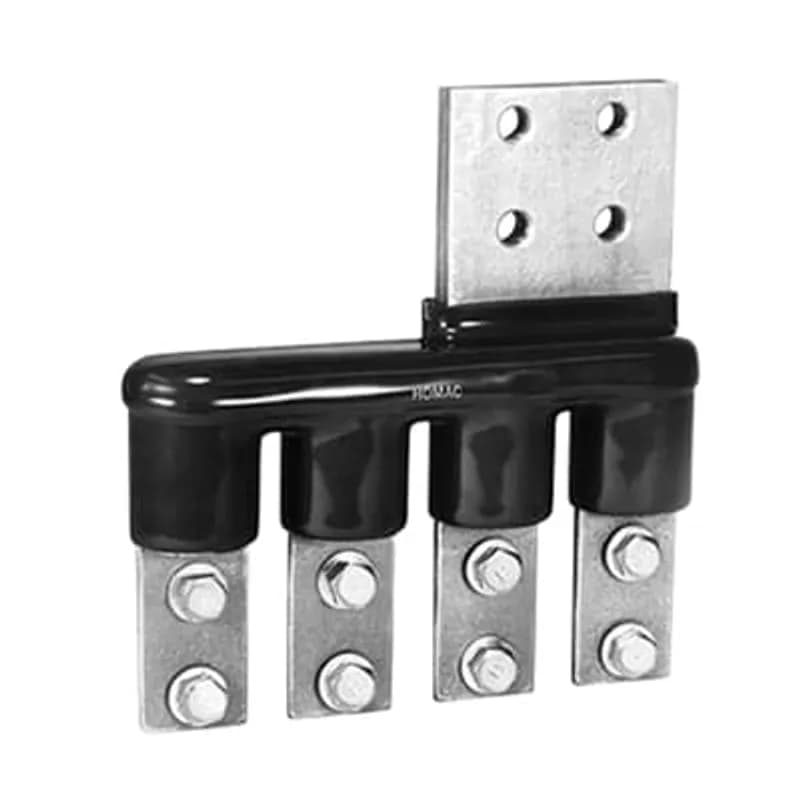

ABB - Installation Products FTN 175-4 R - Flood Seal Aluminum Transformer Spade Connector, Aluminum-Copper, Four 2-Hole Towers, Pad on Right hand side. 9.25 inch wide x 10.25 inch tall. 4-Hole Pad is 3.810 inch wide x 3.75 inch tall x .75 inch thick. Black PVC Coating. Includes 8 Screws for Towers.

ABB Installation Products FTN 175-4 R Flood Seal Aluminum Transformer Spade Connector, Aluminum-Copper, Four 2-Hole Towers…

UPC: 783786726721

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 3

Multiplier: 3

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB FTN 175-4 R Flood Seal Aluminum Transformer Spade Connector is designed for reliable electrical connections in demanding industrial applications. This connector facilitates the secure joining of aluminum and copper conductors, ensuring efficient power transmission. It features four 2-hole towers for robust conductor termination, with a dedicated pad on the right-hand side for additional mounting or grounding. The overall dimensions are 9.25 inches wide by 10.25 inches tall. The 4-hole pad measures 3.810 inches wide by 3.75 inches tall and has a thickness of 0.75 inches. A durable black PVC coating provides an added layer of protection against environmental factors. The connector includes eight screws specifically for securing the towers, ensuring a firm and lasting connection. This ABB Installation Products component, SKU FTN 175-4 R, is a practical solution for transformer connections requiring multiple termination points and a secure mounting interface. Its construction and design prioritize electrical integrity and ease of installation in substations and power distribution systems.
  • Aluminum-Copper construction for versatile conductor compatibility
  • Four 2-hole towers for secure conductor termination
  • Integrated 4-hole pad on the right-hand side for mounting
  • Durable black PVC coating for environmental protection
  • Includes 8 screws for tower connections

Specifications

Color
Black
Conductor Range
4/0 to 1000 kcmil
Connection
Mechanical
Connection Type
Screw Terminal
Finish
Bare
Insulation
True
Material
Aluminum
Material
Aluminum-Copper
Poles
4 Towers (2-Hole each)
Series
FTN 175
Size
9.25 inch wide x 10.25 inch tall
Standard
Meets or Exceeds ANSI C119.4 Specifications
Type
Transformer Spade Connector
Width
9.25 in
Width
234.95 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
7.0500 L
Package Weight (Metric)
3.1980 kg
