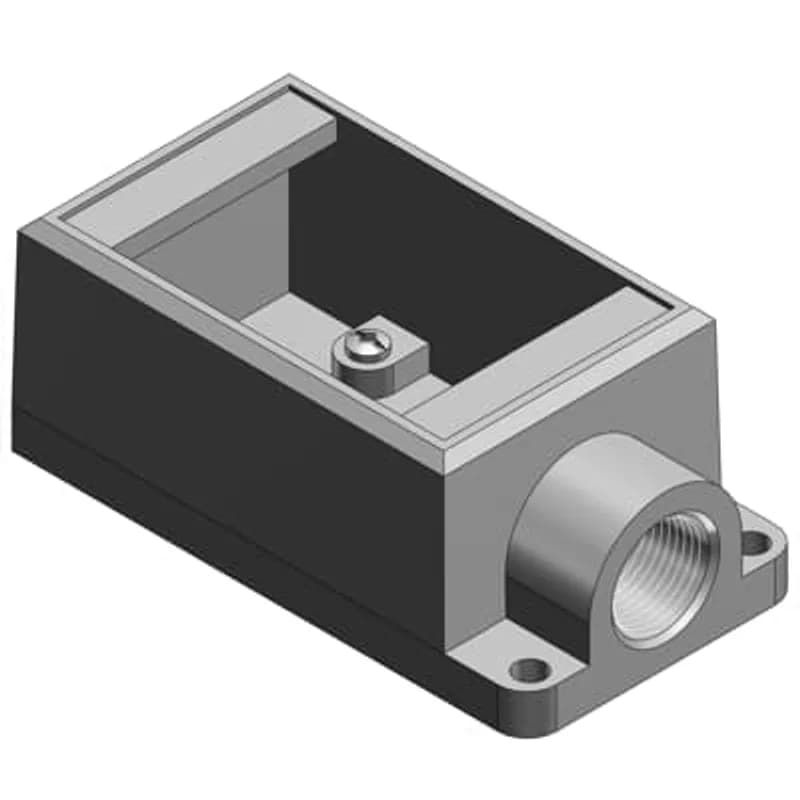

ABB - Installation Products FS2-TB - 3/4 Inch Shallow 1 Gang Cast Device Box, Gray Iron Zinc Plated, Dead End, Suitable for Wet Locations When Used with Gasketed Covers
ABB - Installation Products

FS2-TB

UPC: 786210196978

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Overview

The ABB FS2-TB is a 3/4 inch shallow, 1-gang cast device box engineered for reliable electrical installations. Constructed from durable gray iron and finished with a zinc plating, this box offers robust protection for electrical devices. Its dead-end configuration simplifies wiring runs in specific applications. Crucially, when paired with gasketed covers (sold separately), the FS2-TB is suitable for wet locations, making it a dependable choice for outdoor or exposed environments where moisture resistance is paramount. This device box adheres to standard electrical installation practices and is designed to house single-gang electrical devices such as switches, receptacles, or junction points. The 3/4 inch conduit size accommodates standard conduit fittings. ABB, a recognized leader in installation products, ensures quality and performance with the FS2-TB. This product is identified by SKU FS2-TB and falls under UNSPSC code 39121315. Its cast iron construction provides inherent strength and longevity, while the zinc plating enhances corrosion resistance, further extending its service life in challenging conditions. The shallow depth is ideal for applications where space is limited, allowing for efficient installation without compromising on protection. Ensure proper sealing with compatible gasketed covers for full wet location compliance.
  • 3/4 Inch shallow 1-gang cast device box
  • Constructed from durable gray iron with zinc plating
  • Dead-end configuration for simplified wiring
  • Suitable for wet locations when used with gasketed covers
  • ABB manufacturer, SKU: FS2-TB

Specifications

Application
Industrial Grade Device Boxes and Raintight Covers Protect Wiring Devices, Switches, Electronic Components, and Terminal Blocks In Dry, Damp and Wet Locations
Material
Iron
Size
3/4 Inch
Special Features
All Hubs Have NPT Threads with a Minimum of Five Full Threads and Integral Bushing. Internal Grounding Screw Standard on Boxes
Standard
UL E2969
Type
1 Gang, Shallow Device Box, Dead End
Package Dimensions (L x W x H)
6.25 IN x 4.75 IN x 4.25 IN
Package Dimensions (L x W x H)
15.875 cm x 12.065 cm x 10.795 cm
Package Weight (Imperial)
2.2300 L
Package Weight (Metric)
1.0120 kg
