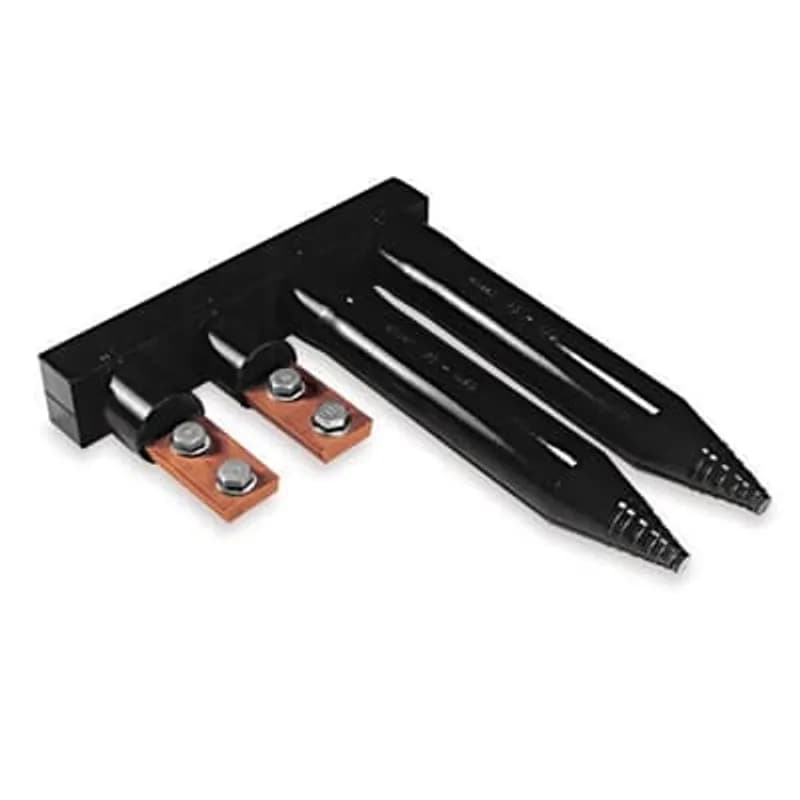

ABB - Installation Products FS 175-7-7018 RLCUK - Flood Seal Tin Plated Copper Bus Connector with EPDM Rubber Coating, 1/0 - 1000 kcmil, 12 Tower, Right and Left Bus with 7018 Bus Connection Kit ( which contains Oxide Inhibiting Compound. (4) Stainless Steel Flat Washers, (1) EPDM Rubber Boot, (1) EPDM Adapter and (1) Copper Pad. ) and Ceiling Mount Bushings. Includes 12 Insulating Rockets, 28 Screws. Approximately 42 inch wide x 2-1/4 inch thick x 6-1/2 inch long.

ABB Installation Products FS 175-7-7018 RLCUK Flood Seal Tin Plated Copper Bus Connector with EPDM Rubber Coating, 1/0 - 1000 kcmil…

UPC: 075114392273

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB FS 175-7-7018 RLCUK Flood Seal Bus Connector is a tin-plated copper bus connector designed for high-current applications, rated for conductor sizes from 1/0 AWG to 1000 kcmil. This 12-tower connector features an EPDM rubber coating for environmental protection and includes a 7018 Bus Connection Kit with oxide-inhibiting compound, stainless steel flat washers, EPDM rubber boot, adapter, and copper pad. The kit also includes ceiling mount bushings, 12 insulating rockers, and 28 screws. Measuring approximately 42 inches wide, 2-1/4 inches thick, and 6-1/2 inches long, this connector is engineered for reliable electrical connections in industrial and commercial power distribution systems. The EPDM coating provides resistance to moisture, ozone, and UV exposure, ensuring long-term performance in harsh environments. The stainless steel hardware and copper construction deliver corrosion resistance and mechanical strength, while the oxide-inhibiting compound prevents oxidation at connection points. This connector is ideal for use in switchgear, panelboards, and busway systems where secure, high-current terminations are required.
  • Tin-plated copper construction for high conductivity and corrosion resistance
  • EPDM rubber coating for environmental protection against moisture, ozone, and UV
  • Includes 7018 Bus Connection Kit with oxide-inhibiting compound and stainless steel hardware
  • Rated for conductor sizes from 1/0 AWG to 1000 kcmil
  • Dimensions: 42" W x 2-1/4" T x 6-1/2" L; includes mounting bushings, rockers, and screws

Specifications

Color
Black
Conductor Range
1/0 to 1000 kcmil
Connection
Mechanical
Finish
Tin Plated
Insulation
Yes, EPDM Rubber
Material
Copper
Number Of Conductors
12
Size
42 inch wide x 2-1/4 inch thick x 6-1/2 inch long
Special Features
Right and Left Bus
Type
Bus Connector - 12 Tower
Width
42 in
Width
1066.8 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
60.0000 L
Package Weight (Metric)
27.2160 kg
