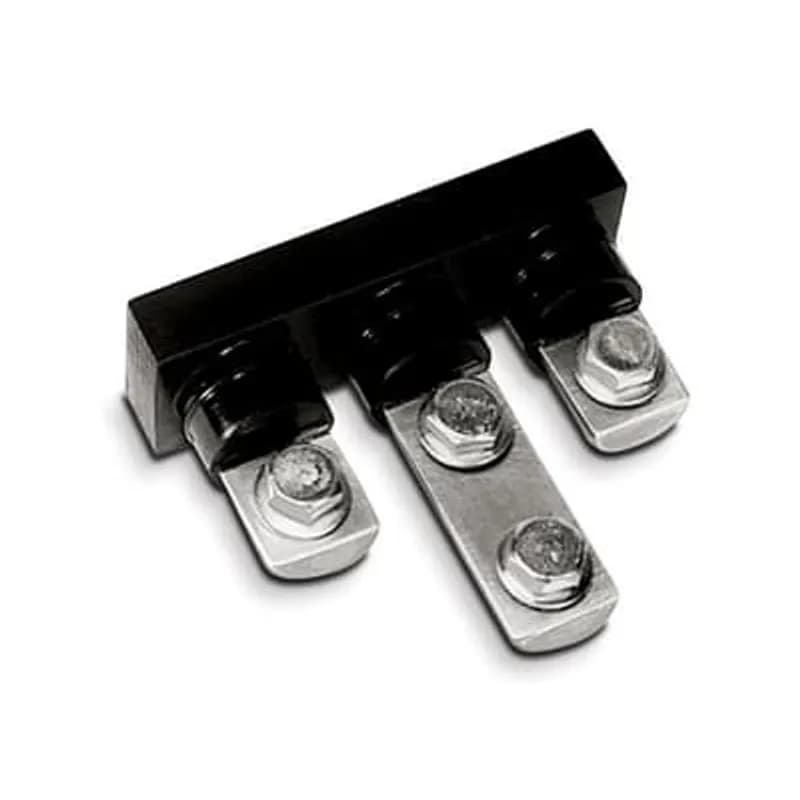

ABB - Installation Products FS 111 CSNTN - Flood Seal, Tin Plated Aluminum Bus Connector, #12 - 500 KCMIL, Aluminum and Copper, Bolt 1/2 inch, Three Towers, One Way Configuration. Outside Towers are 1-Hole, Center Tower is 2-Hole. Includes (3) Insulating Rockets , (4) Screws and Silicone Grease. Santoprene/EPDM Rubber Coating. Holes are Tapped 1/2-13 UNC-2B. Connector Width 5-11/16 inch.

ABB Installation Products FS 111 CSNTN Flood Seal, Tin Plated Aluminum Bus Connector, #12 - 500 KCMIL, Aluminum and Copper…

UPC: 783786725373


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 20

Multiplier: 20

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB FS 111 CSNTN Flood Seal Bus Connector is a tin-plated aluminum connector engineered for high-reliability electrical connections in demanding industrial and commercial applications. This connector is specifically designed to accommodate a wide range of conductor sizes, from #12 AWG up to 500 KCMIL, making it suitable for both aluminum and copper conductors. Its three-tower configuration provides multiple connection points, enhancing flexibility in wiring arrangements. The outer towers feature a single-hole design, while the center tower is configured with two holes, allowing for one-way wiring setups. The connector is secured using a 1/2 inch bolt, with all holes tapped to 1/2-13 UNC-2B standards to ensure a secure and stable fastening. The overall width of the connector measures 5-11/16 inches, providing ample space for conductor routing. Included with the connector are three insulating boots, four screws, and silicone grease to facilitate proper installation and environmental sealing. The Santoprene/EPDM rubber coating offers enhanced protection against moisture, corrosion, and other environmental factors, ensuring long-term durability and performance. This connector is part of the ABB Installation Products Series 111, a line known for its dependable solutions in power distribution and termination applications. Its robust design and comprehensive accessories make it an ideal choice for efficient and safe electrical connections in a variety of industrial settings, including power distribution panels, switchgear, and motor control centers.
  • Tin-plated aluminum construction for corrosion resistance
  • Accommodates #12 AWG to 500 KCMIL aluminum and copper conductors
  • Three-tower configuration with 1-hole outer towers and 2-hole center tower
  • Secured with a 1/2 inch bolt; holes tapped 1/2-13 UNC-2B
  • Includes insulating boots, screws, and silicone grease; Santoprene/EPDM rubber coating

Specifications

Application
Multi-port Connector
Color
Black
Conductor Range
#12 to 500 kcmil
Connection
Mechanical
Finish
Tin Plated
Insulation
EPDM Rubber
Material
Aluminum
Number Of Conductors
3
Size
5 Inch
Special Features
Three Towers, Outside Towers have only 1-Hole, Center Tower has 2-Holes
Type
Flood Seal Multi Port Connector 125 Series
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
2.1800 L
Package Weight (Metric)
0.9890 kg
