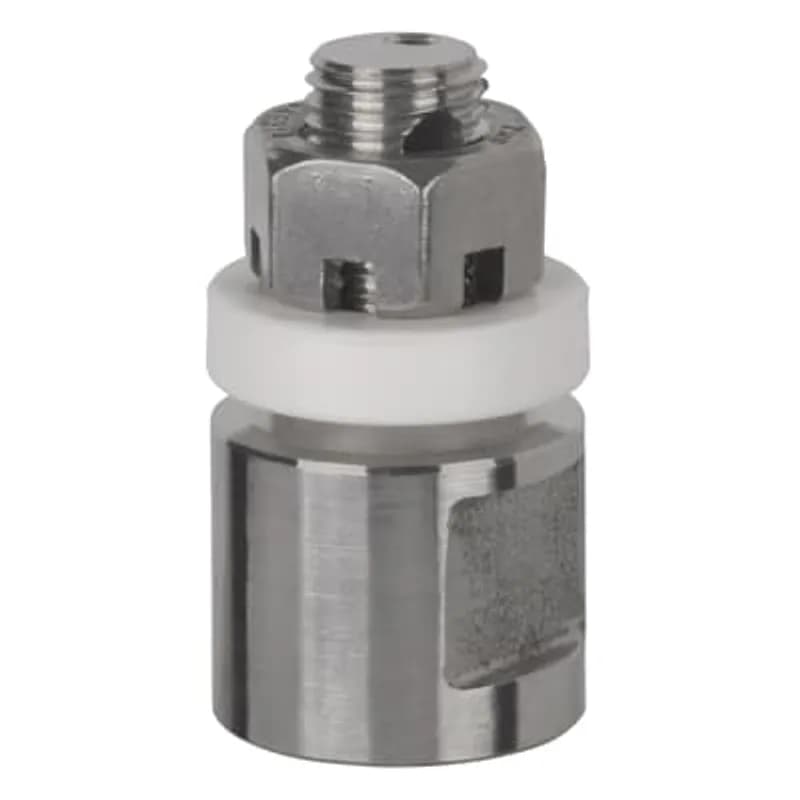

ABB Installation Products FG-DA-3/8 Drain Adapter, 3/8 Inch, UL Type 4X Listed and NSF Certified for Food and Beverage, 1.38…
UPC: 786209698629
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 316 stainless steel construction for corrosion resistance in wet/aggressive environments
- UL Type 4X listed for protection against corrosion, water ingress, and impacts
- NSF certified for food and beverage safety compliance
- 1/4" NPT thread for secure connection to drain adaptor assemblies
- 1.38" length, 0.75" diameter for compact installation in constrained spaces
Specifications
Application | Conduit Drain |
Connection Type | 1/4 Inch NPT Thread |
Hub Size | 3/8 |
Ip Rating | Type 4X |
Length | 1.38 in |
Length | 35.052 mm |
Material | 316 Stainless Steel |
Material Quality | Stainless Steel 316 |
Material Quality | Stainless Steel V4A |
Size | 3/8 Inch |
Special Features | Compact Body Design and Special-Grade Silicone Gasket Make the Drain Adapter Suitable for Installation in Tight Spaces and on Curved Surfaces |
Standard | cULus Listed 4X, NSF Certified when used with Ball Valve |
Type | Drain for Food and Beverage |
Width | 0.75 in |
Width | 19.05 mm |
Package Dimensions (L x W x H) | 3 IN x 0.2 IN x 5 IN |
Package Dimensions (L x W x H) | 7.62 cm x 0.508 cm x 12.7 cm |
Package Weight (Imperial) | 0.0900 L |
Package Weight (Metric) | 0.0410 kg |
DBV-1/4
Ball Valve for Drain, 1/4 Inch NPT on Both Ends, UL Type 4X Listed and NSF Certified for Food and Beverage, 2.03 Inch Length, 0.75 Inch Diameter, 316 Stainless Steel
CHGUAL26SA
Aluminum, Conduit Outlet Box with Cover and 2 Openings Hub Size 3/4 Inch, Cover Opening Diameter 3 Inch
CHGUAT26SA
Aluminum, Conduit Outlet Box with Cover and 3 Openings Hub Size 3/4 Inch, Cover Opening Diameter 3 InchCHGUAL36SA
Aluminum, Conduit Outlet Box with Cover and 2 Openings Hub Size 1 Inch, Cover Opening Diameter 3 InchCHGUAT16SA
Aluminum, Conduit Outlet Box with Cover and 3 Openings Hub Size 1/2 Inch, Cover Opening Diameter 3 InchFrequently Asked Questions
What is the UPC number for the FG-DA-3/8?
The UPC number for the FG-DA-3/8 is 78620969862(9).
Is the FG-DA-3/8 suitable for food and beverage applications?
Yes, the FG-DA-3/8 drain adaptor is NSF Certified for food and beverage applications.
What threaded connection does the FG-DA-3/8 offer for a drain tube?
The FG-DA-3/8 drain adaptor offers a 1/4" female NPT threaded connection for assembling a drain tube to direct liquid removal.
What are the dimensions of the FG-DA-3/8?
The FG-DA-3/8 has a trade size of 3/8, a "Dim. A" of 1.38 inches, and a "Dim. B" of 0.75 inches.
What type of connections does the FG-DA-3/8 support?
The FG-DA-3/8 is designed for non-threaded connections on stainless steel electrical enclosures.
What certifications does the FG-DA-3/8 have?
The FG-DA-3/8 is NSF Certified per NSF/ANSI Standard 169. It is cULus Listed Type 4X when assembled with a T&B ball valve.
What material is the FG-DA-3/8 drain adaptor made from?
The FG-DA-3/8 drain adaptor is constructed from Type 316 Stainless Steel for superior corrosion resistance and is manufactured with FDA approved materials.
What is the FG-DA-3/8 drain adaptor used for?
The FG-DA-3/8 is a stainless steel drain adaptor that drains moisture or small debris from stainless steel electrical enclosures with non-threaded connections.
What material is the FG-DA-3/8 drain adaptor made from?
The FG-DA-3/8 drain adaptor is constructed from Type 316 Stainless Steel for superior corrosion resistance and is manufactured with FDA approved materials.
What are the dimensions of the FG-DA-3/8?
The FG-DA-3/8 has a trade size of 3/8, a "Dim. A" of 1.38 inches, and a "Dim. B" of 0.75 inches.
How to Install the FG-DA-3/8 Stainless Steel Drain
This guide provides step-by-step instructions for installing the FG-DA-3/8 stainless steel drain in metal enclosures with a maximum wall thickness of 0.250 inches. Always disconnect power before installation to avoid risk of shock.
Estimated time: 20m
Tools needed:
Drill, Deburring tool
Supplies needed:
FG-DA-3/8 Stainless Steel Drain, Gasket, Drain Nut
- Locate Drainage Point
Identify the lowest point inside the metal junction box where drainage is desired. Ensure this location provides clearance from any enclosed wires or equipment.
- Prepare Mounting Hole
Drill a 3/8-inch diameter hole at the identified lowest point in the junction box. Carefully de-burr the edges of the hole to remove any sharp points. Additionally, remove any paint or non-metallic coating from the nut mounting surface around the hole to ensure the drain is properly bonded to the metal surface.
- Attach Gasket to Drain Body
Place the gasket onto the threaded portion of the drain body.
- Insert Drain Body
From the underside of the junction box, insert the drain body, with the gasket attached, into the 3/8-inch drilled hole. Ensure the gasket is flush against the underside of the junction box.
- Secure with Drain Nut
Thread the drain nut onto the drain body from inside the junction box. Ensure the teeth of the drain nut are pointed downwards, towards the bottom of the junction box, to facilitate proper drainage.
- Tighten the Drain Assembly
Hand tighten the drain body into the drain nut until the gasket makes initial contact with the underside of the junction box. Then, tighten the drain body an additional 2 to 2-1/2 turns to secure the assembly.
- Align for Optimal Drainage
For maximum drainage and efficient debris removal, align one of the slots in the drain nut with the vertical slot in the drain body.
