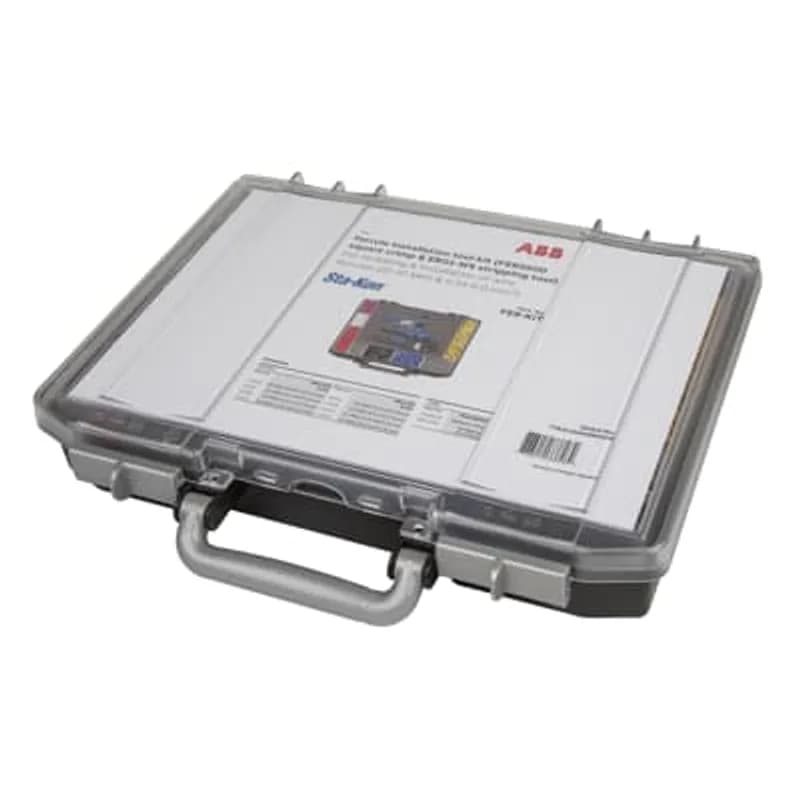

ABB - Installation Products FER-KIT - Ferrules and Installation Tools Kit, includes 8 Different Ferrule Sizes, Wire Stripper (ERG1-WS) and Crimping Tool (FER9500). Ferrules are Polypropylene-Insulated. Ferrule Quantity 500 each for sizes 22 AWG (0.34mm2) 6mm, 20 AWG (0.5mm2) 8mm, 18 AWG (1.0mm2) 8mm, 18 AWG (0.75mm2) 8mm, 16 AWG (1.5mm2) 8mm, 14 AWG (2.5mm2) 8mm, and 200 each for sizes 12 AWG (4.0mm2) 12mm and 10 AWG (6.0mm2) 12mm.
ABB - Installation Products

FER-KIT

UPC: 786210338262

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB Installation Products Ferrules and Installation Tools Kit (SKU: FER-KIT) provides a comprehensive solution for professional wire termination. This kit is engineered for efficiency and reliability, ensuring secure and consistent connections in electrical installations. It features a diverse selection of eight different ferrule sizes, catering to a broad range of wire gauges from 22 AWG (0.34mm²) up to 10 AWG (6.0mm²). The kit includes a substantial quantity of high-quality, polypropylene-insulated ferrules. Specifically, you receive 500 pieces each for the following sizes: 22 AWG (0.34mm²) with a 6mm length, 20 AWG (0.5mm²) with an 8mm length, 18 AWG (1.0mm²) with an 8mm length, 18 AWG (0.75mm²) with an 8mm length, 16 AWG (1.5mm²) with an 8mm length, and 14 AWG (2.5mm²) with an 8mm length. For larger gauge wires, the kit provides 200 pieces each of 12 AWG (4.0mm²) and 10 AWG (6.0mm²) ferrules, both with a 12mm length. This extensive range ensures you have the correct ferrule for most common industrial and commercial wiring applications. Complementing the ferrules are two essential installation tools: the ERG1-WS wire stripper and the FER9500 crimping tool. The wire stripper is designed for precise insulation removal, preparing wires for optimal ferrule insertion. The FER9500 crimping tool delivers consistent and reliable crimps, crucial for maintaining electrical integrity and preventing connection failures. The polypropylene insulation on the ferrules offers electrical isolation and mechanical protection to the wire strands, enhancing the overall safety and longevity of the connection. This kit is ideal for electricians, maintenance technicians, and panel builders who require a dependable and organized solution for wire preparation and termination.
  • Comprehensive kit with 8 different ferrule sizes (22 AWG to 10 AWG)
  • Includes ABB ERG1-WS wire stripper and FER9500 crimping tool
  • Polypropylene-insulated ferrules for electrical isolation and protection
  • High-quantity supply: 500 pcs each for 22-14 AWG, 200 pcs each for 12-10 AWG
  • Ensures secure and consistent wire terminations for industrial applications

Specifications

Special Features
8 Ferrule Sizes, Wire Stripper and Crimping Tool
Type
Ferrule Kit
Package Dimensions (L x W x H)
21 IN x 13 IN x 13 IN
Package Dimensions (L x W x H)
53.34 cm x 33.02 cm x 33.02 cm
Package Weight (Imperial)
4.2000 L
Package Weight (Metric)
1.9050 kg
