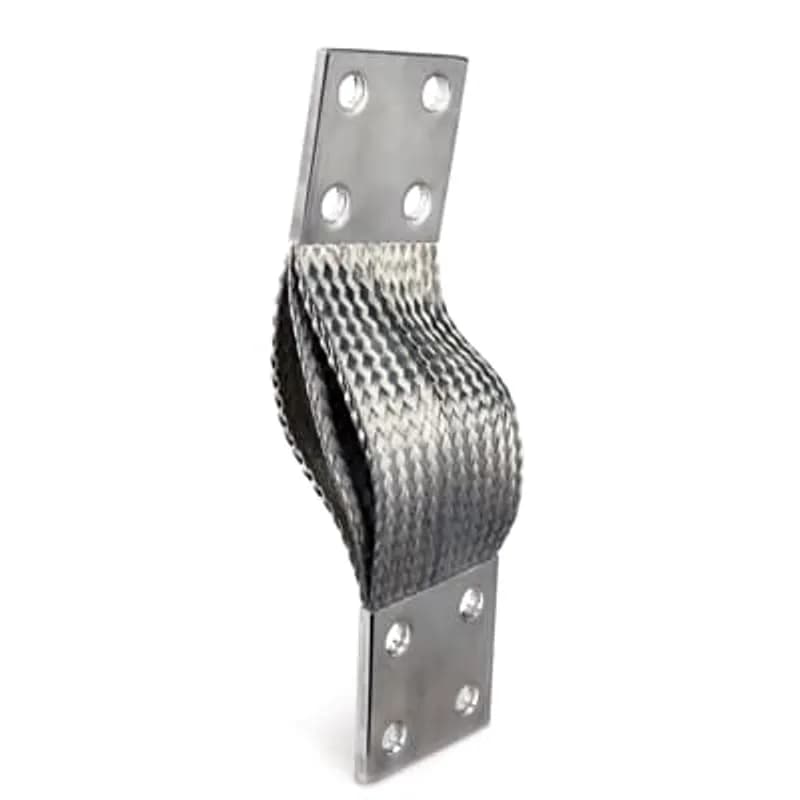

ABB - Installation Products FBE4H340A1-36 - 4-Hole NEMA Extra-Flexible Jumper Braid - Number of Braids in Assembly 30, Width 4 Inch, Ferrule Length 4 Inch, Distance Between Holes S 1-3/4 Inch, Hole 9/16 Inch, T 7/8 Inch, Length 36 Inches

ABB Installation Products FBE4H340A1-36 4-Hole NEMA Extra-Flexible Jumper Braid - Number of Braids in Assembly 30, Width 4 Inch…

UPC: 783786993000


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

This ABB 4-Hole NEMA Extra-Flexible Jumper Braid (SKU: FBE4H340A1-36) is designed for reliable electrical connections in industrial settings. The assembly features 30 individual braids, providing ample conductivity and flexibility. With a width of 4 inches and a ferrule length of 4 inches, it offers substantial contact surface area. The jumper braid has a total length of 36 inches, allowing for versatile installation and routing. Key dimensions include a distance between holes (S) of 1-3/4 inches, a hole size of 9/16 inches, and a thickness (T) of 7/8 inches. This configuration is suitable for NEMA standard connections, ensuring compatibility with a range of electrical equipment. The extra-flexible construction facilitates installation in tight spaces or where vibration is a concern, minimizing stress on connections. Manufactured by ABB - Installation Products, this jumper braid is built for dependable performance. Its robust design and specific dimensions make it a practical choice for grounding, bonding, and power distribution applications where flexibility and secure termination are paramount. The UNSPSC code for this product is 39121613.
  • 4-Hole NEMA Extra-Flexible Jumper Braid
  • 30 Braids in Assembly
  • 4 Inch Width, 4 Inch Ferrule Length
  • 36 Inch Total Length
  • 1-3/4 Inch Hole Spacing, 9/16 Inch Hole Diameter

Specifications

Insulation
Non-Insulated
Length
36 in , 914.4 mm
Nema Rating
NEMA 4
Series
FBE4H340A1
Size
Width 4 Inch, Ferrule Length 4 Inch, Distance Between Holes S 1-3/4 Inch, Hole 9/16 Inch, T 7/8 Inch, Length 36 Inches
Standard
NEMA
Type
Extra-Flexible Jumper Braid
Package Dimensions (L x W x H)
1 IN x 1 IN x 1 IN
Package Dimensions (L x W x H)
2.54 cm x 2.54 cm x 2.54 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
