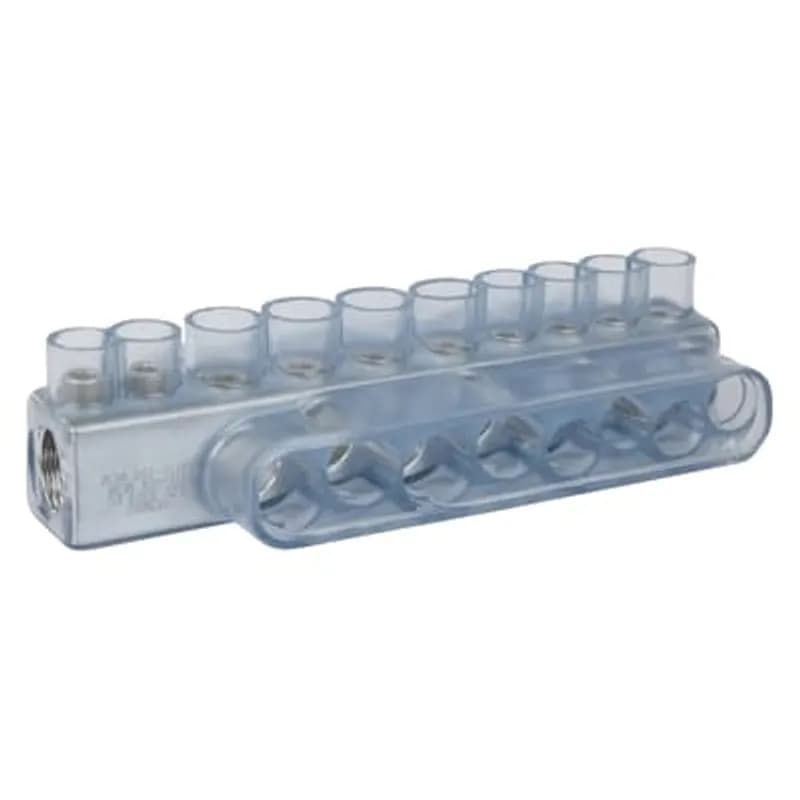

EZC 9320 EC

The ABB EZC 9320 EC connector has four outlets accepting #6 to 600 kcmil and four outlets accepting #12 to 350 kcmil.

This universal quick disconnect connector accepts either a 5/8 inch or a 1 inch stud.

It includes tin-plated aluminum screws: four 5/8-18 x 15/16 inch, four 3/4-16 x 15/16 inch, and two 5/8-18 x 1 inch for stud mounting.

Yes, the ABB EZC 9320 EC includes an oxide inhibitor and a protective cap.

The connector measures 10-21/64 inches in length, 1-5/8 inches in width, and 1-3/8 inches in height.
