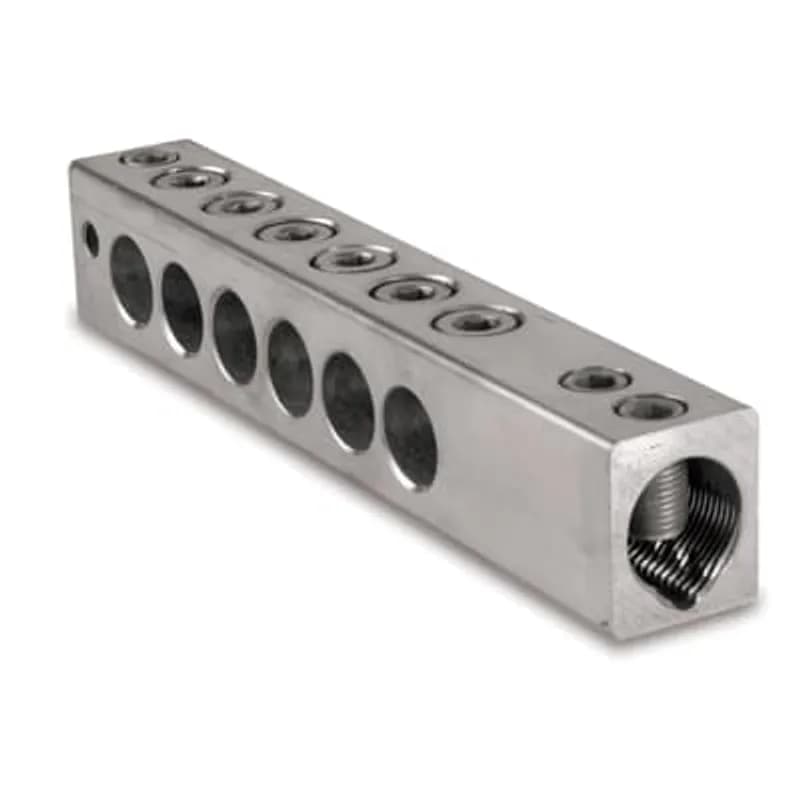

ABB - Installation Products EZB 4500 SL - Electrical Connector, 6.750 Long, 1.375 Wide, 1.625 High, 500 mcm, 4 Wire Ports With Streetlight

ABB Installation Products EZB 4500 SL Electrical Connector, 6.750 Long, 1.375 Wide, 1.625 High, 500 mcm, 4 Wire Ports With…

UPC: 075114308694


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB EZB 4500 SL is a specialized electrical connector designed for secure and reliable wire termination. This unit features a substantial 6.750-inch length, 1.375-inch width, and 1.625-inch height, providing ample space for robust connections. It is engineered to accommodate 500 mcm conductors, making it suitable for high-capacity electrical systems. A key feature is its configuration with four wire ports, specifically designed for streetlight applications, ensuring efficient and organized wiring for illumination projects. The ABB EZB 4500 SL (SKU: EZB 4500 SL) from ABB - Installation Products offers a direct and functional solution for managing multiple conductor connections in demanding outdoor or infrastructure environments. Its dimensions and port count are optimized for the specific requirements of streetlight installations, facilitating straightforward assembly and maintenance. This connector is built to ensure dependable electrical continuity for critical lighting infrastructure.
  • Connector Dimensions: 6.750" Long x 1.375" Wide x 1.625" High
  • Conductor Capacity: 500 mcm
  • Port Configuration: 4 Wire Ports
  • Application Specific: Designed for Streetlight installations
  • Manufacturer: ABB - Installation Products

Specifications

Conductor Range
500 kcmil
Connection
Mechanical
Connection Type
Streetlight
Current Rating
500 MCM
Finish
Bare
Height
6.750 long, 1.375 wide, 1.625 in
Insulation
False
Material
Aluminum
Poles
4 Wire Ports
Series
EZB
Size
6.750 Long, 1.375 Wide, 1.625 High
Type
Quick-Disconnect Transformer Connector
Width
1.375 in
Width
34.925 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.6500 L
Package Weight (Metric)
0.7480 kg
