Overview

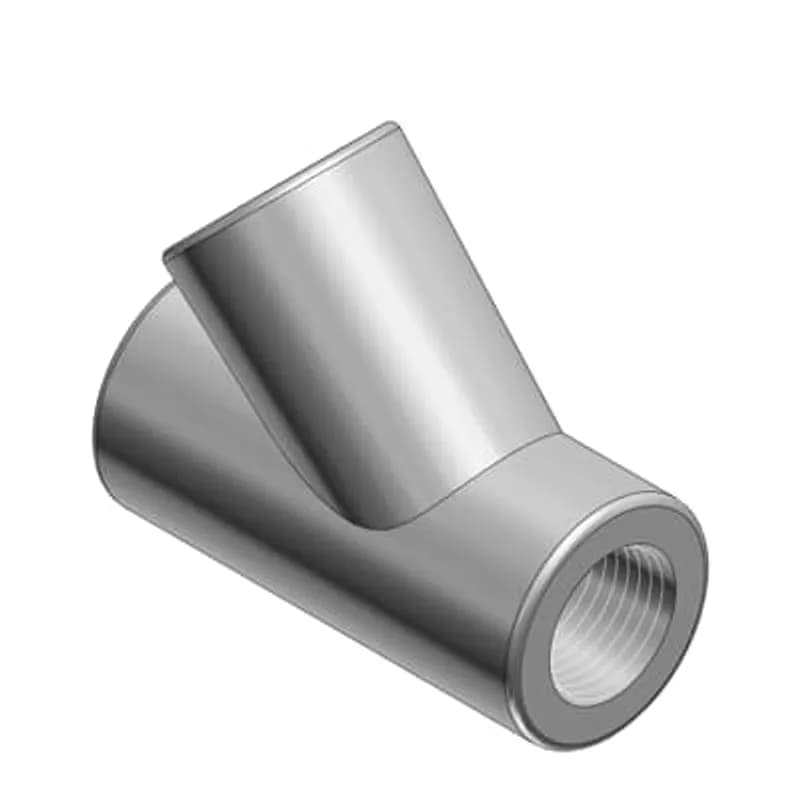

- 1 Inch Vertical Sealing Fitting
- Constructed from durable Die Cast Aluminum
- Suitable for Hazardous Locations
- Packaged with adequate sealing compound and installed plugs
- Unit Quantity: 4
Specifications
Application | Limits Flames and/or Explosions to Area within Electrical System Where They Originate |
Finish | Zinc-Plated with Aluminum Acrylic Paint |
Hub Size | 1 |
Material Quality | Iron |
Special Features | Precision Cast and Machined Surfaces Permit Safer Wire Pulling |
Standard | UL E34438, CSA |
Type | Sealing Fitting - Vertical |
Package Dimensions (L x W x H) | 6.69 IN x 3.06 IN x 4.06 IN |
Package Dimensions (L x W x H) | 16.9926 cm x 7.7724 cm x 10.3124 cm |
Package Weight (Imperial) | 0.4000 L |
Package Weight (Metric) | 0.1810 kg |
EZD311-G
PVC Coated Sealing Fitting for Hazardous Locations, EZD Series, Pipe Size 1 Inch/27 Metric, Gray
C37
BlueKote Thru-Feed Form 7, 1 Inch Conduit Body, Body Material Gray Iron with Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC ConduitC27
BlueKote Thru-Feed Form 7, 3/4 Inch Conduit Body, Body Material Gray Iron with Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC Conduit
C38
BlueKote Thru-Feed Form 8 1 Inch Conduit Body, Body Material Gray Iron with Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC Conduit
BLB-4
1-1/4 inch Set Screw Die Cast Aluminum Conduit Body with Back-Opening. For Use with EMT Conduit.BLB-5
1-1/2 inch Set Screw Die Cast Aluminum Conduit Body with Back-Opening. For Use with EMT Conduit.Frequently Asked Questions
What material is the ABB EYVF-33 sealing fitting made from?
The ABB EYVF-33 sealing fitting is constructed from durable die-cast aluminum.
What size is the ABB EYVF-33 vertical sealing fitting?
The ABB EYVF-33 vertical sealing fitting is 1 inch in size.
Is the EYVF-33 fitting suitable for hazardous locations?
Yes, the ABB EYVF-33 fitting is specifically designed and suitable for hazardous locations.
What is included with the ABB EYVF-33 sealing fitting?
Each ABB EYVF-33 fitting is packaged with an adequate amount of sealing compound and has plugs installed.
How many units are included in a package of the EYVF-33?
The unit quantity for the ABB EYVF-33 sealing fitting is 4 per package.
How to Install EYVF-33 Sealing Fittings (Vertical Installation)
This guide provides step-by-step instructions for the vertical installation of EYV series sealing fittings, including proper wiring, damming, and compound pouring procedures to ensure a safe and effective seal.
Estimated time: 30m
Tools needed:
Basic Hand Tools, Wire Strippers, Mixing Tool
Supplies needed:
EYV Series Sealing Fitting (e.g., EYVF-33), Red Dot® EXPF Packing Fiber, Red Dot® EXSC Compound, Electrical Wires
- De-energize Electrical Circuits
WARNING: De-energize all electrical circuits prior to and during installation and maintenance to prevent electrical shock and ensure safety.
- Install Sealing Fitting and Pull Wires
Install the EYV series sealing fitting in the correct vertical orientation as indicated in Table 1 of the product documentation. Carefully pull the electrical wires through the fitting, ensuring they are ready for the sealing process.
- Remove Seal Plug
Locate and carefully remove the seal plug from the sealing fitting to prepare for damming and compound pouring.
- Dam Lower Hub Opening
Using Red Dot® EXPF packing fiber, dam the lower hub opening of the fitting. IMPORTANT: Ensure the packing fibers completely separate individual conductors from each other and from the fitting walls to prevent compound leakage and ensure proper sealing.
- Mix and Pour Sealing Compound
Mix the Red Dot® EXSC compound precisely according to its product directions. Refer to Table 1 in the documentation for the approximate amount of compound required based on the specific fitting size. Carefully pour the mixed compound into the fitting.
- Replace Seal Plug
Once the compound has been poured, replace the seal plug. Ensure the plug engages at least five full threads to create a secure and tight seal.
- Allow Compound to Set
Allow a minimum of 72 hours setting time for the Red Dot® EXSC compound to fully cure. Do not re-energize the electrical circuits until the compound has completely set to ensure the integrity of the seal.
