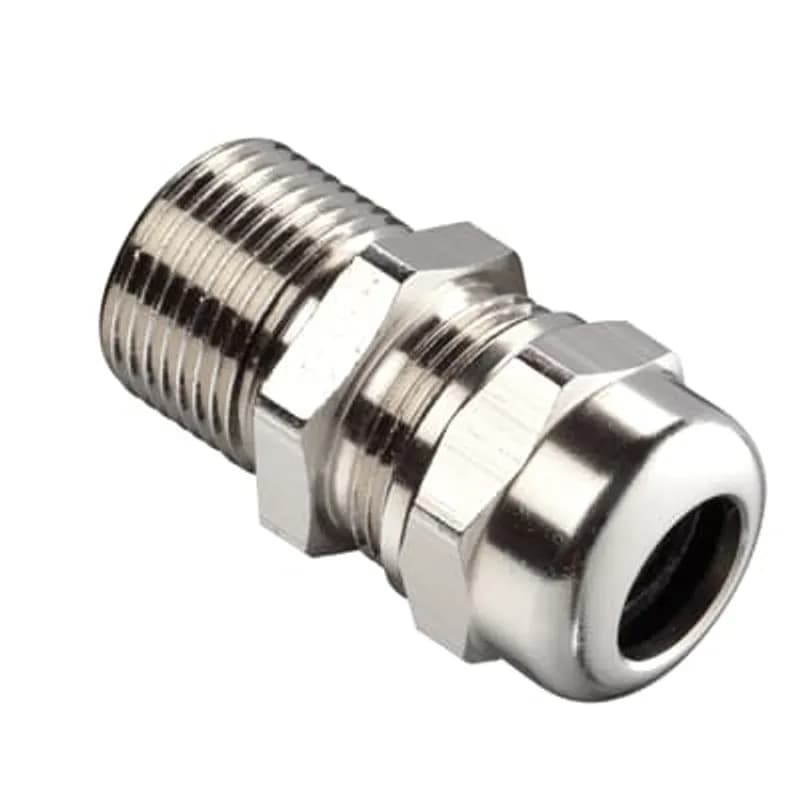

Overview
- M32 Thread Size for secure enclosure connection
- Stainless Steel construction for superior corrosion resistance
- IP66-68 Rated for dust-tight and water immersion protection
- Suitable for non-armoured cables with a 14mm to 24mm diameter range
- Certified for Flameproof Ex d and Increased Safety Ex e applications
Specifications
Application | For Use with Unarmoured Cable to Provide Secure Cable Connections Through Knockouts and Threaded Entries |
Color | Metallic |
Conductor Range | 14 to 24 Millimeters |
Conductor Range, Maximum | 24 mm |
Conductor Range, Minimum | 14 mm |
Environmental Conditions | Flameproof Ex d and Increased Safety Ex e |
Insulation | IP66-68 Rating |
Material | Stainless Steel |
Material Quality | Stainless Steel |
Operating Temperature, Maximum | 176 F |
Operating Temperature, Maximum | 80 C |
Operating Temperature, Maximum | 176.00000 F |
Operating Temperature, Maximum | 80 °C |
Operating Temperature, Minimum | -40 F |
Operating Temperature, Minimum | -40 C |
Operating Temperature, Minimum | -40.00000 F |
Operating Temperature, Minimum | -40 °C |
Size | M32 |
Standard | UL Listed, Approved to EN60079-0, 60079-1, 60079-7, 60079-31 |
Temperature Rating | -40 to 80 C |
Type | Single Compression Cable Gland |
Package Dimensions (L x W x H) | 7.09 IN x 3.54 IN x 3.54 IN |
Package Dimensions (L x W x H) | 18.0086 cm x 8.9916 cm x 8.9916 cm |
Package Weight (Imperial) | 0.520 L |
Package Weight (Metric) | 0.236 kg |
Similar Products

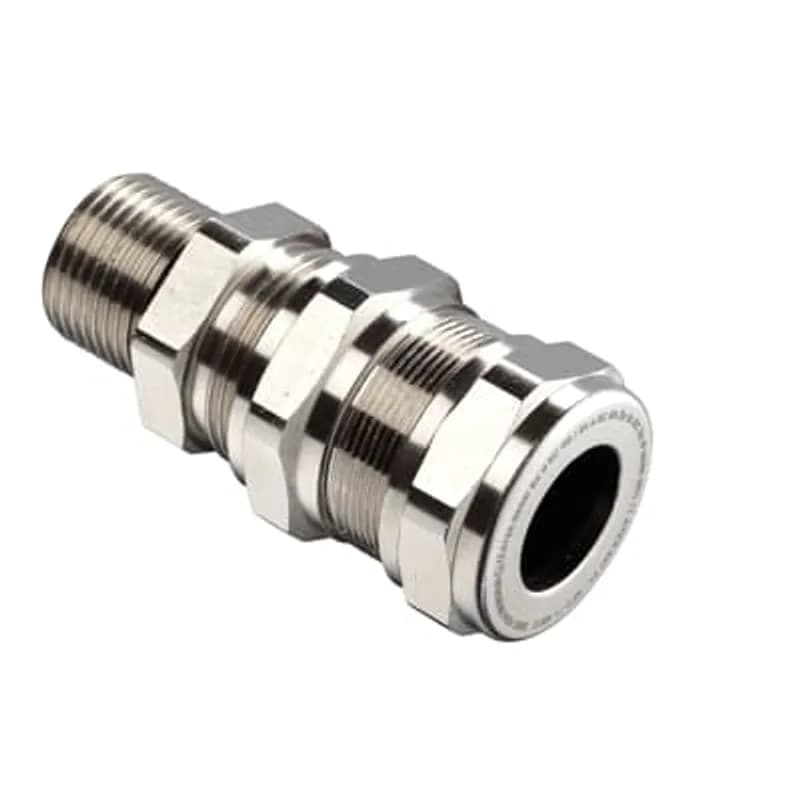

EXS06AMC1
