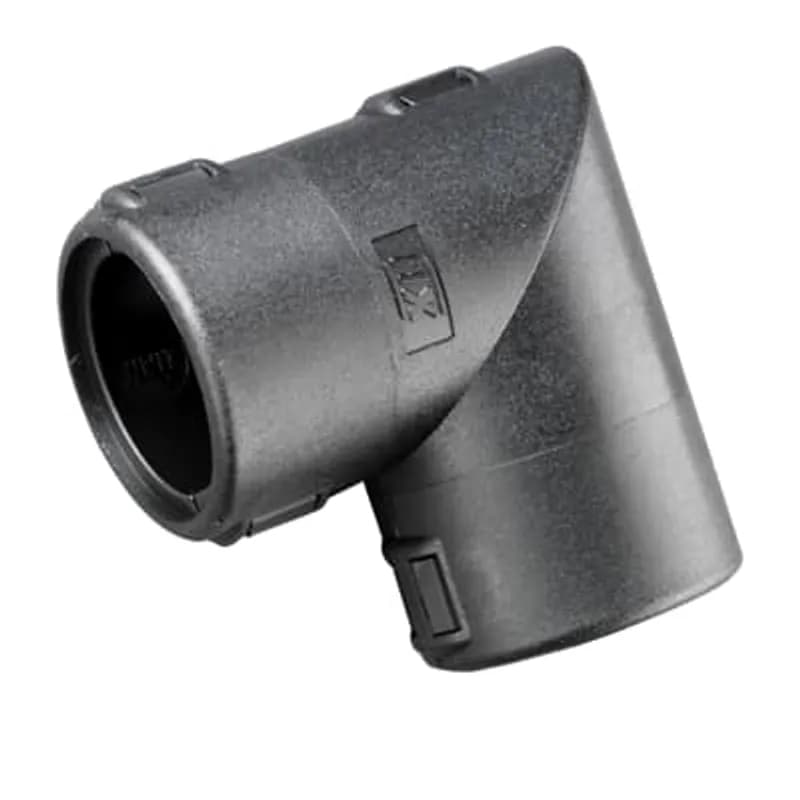

ABB - Installation Products EPS2008 - Hinged Conduit Joiner, 90 Degree Elbow, Conduit Size A: NC20/NW17, Size B: NC08/NW7.5, Operating Temperature -40 to 120 Degrees Celsius, RoHS Compliant, IP40 Rating, Very High UV Protection, Polyamide (Nylon), Black
ABB - Installation Products

EPS2008

UPC: 786210313832

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 400

Multiplier: 400

*Contact for lower quantities*

Overview

The ABB EPS2008 Hinged Conduit Joiner is a robust, 90-degree elbow designed for reliable and flexible conduit management in demanding industrial environments. Engineered from high-performance polyamide (nylon), this joiner offers exceptional durability and resistance to harsh conditions. Key features include: * **Extreme Temperature Tolerance:** Operates reliably across a wide temperature range of -40°C to 120°C, ensuring performance in both cold and hot applications. * **Superior UV Protection:** Provides very high resistance to UV radiation, making it ideal for outdoor installations where sun exposure is a concern. * **IP40 Rated:** Offers protection against solid foreign objects greater than 1mm, safeguarding electrical connections. * **Hinged Design:** Facilitates easy installation, maintenance, and adjustment of conduit runs without requiring complete disassembly. * **Chemical Resistance:** Polyamide construction offers good resistance to various chemicals commonly found in industrial settings.
  • 90 Degree Hinged Conduit Joiner Elbow
  • Constructed from durable Polyamide (Nylon)
  • Operating Temperature: -40°C to 120°C
  • IP40 Rated for solid particle protection
  • Very High UV Protection for outdoor use

Specifications

Application
Designed to Snap Together Over All Types of Slit and Unslit Conduit, Maintaining Maximum Conduit Bore
Color
Black
Flexibility
Rigid
Ip Rating
IP40
Material
Polyamide/Nylon
Material
Polyamide (Nylon)
Material Quality
Polyamide/Nylon
Series
EPS
Size
NC20/NW17 to NC08/NW7.5
Special Features
One-Piece External Design for Unrestricted Bore and Quick Assembly with No Tools
Standard
RoHS, Conforms with End of Life Vehicle Directive (ELV) EU200/53/EC
Type
Hinged Conduit Joiner with 90 Degree Bend
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.020 L
Package Weight (Metric)
0.009 kg
