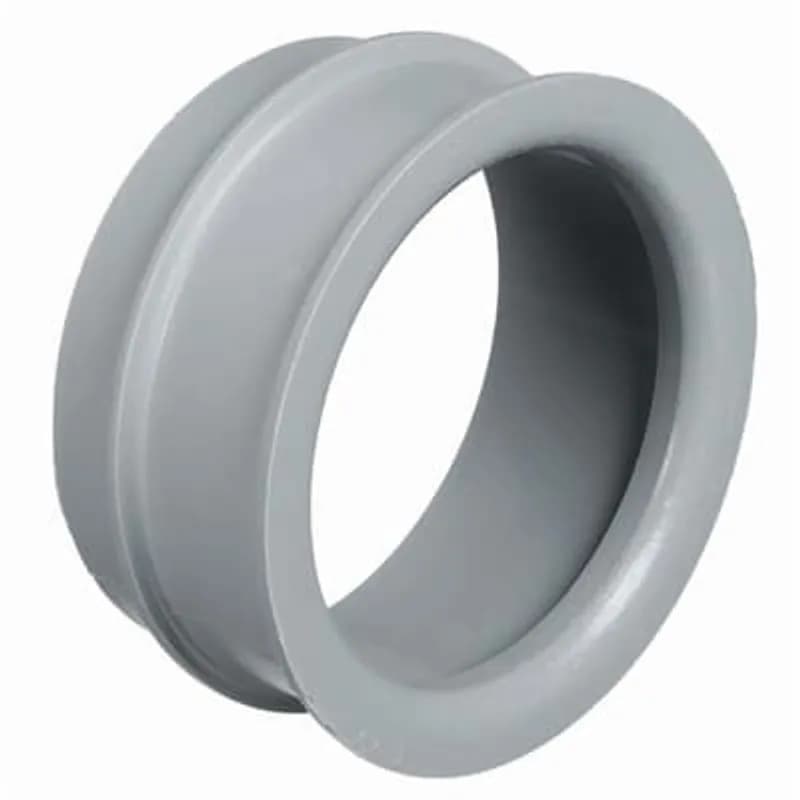

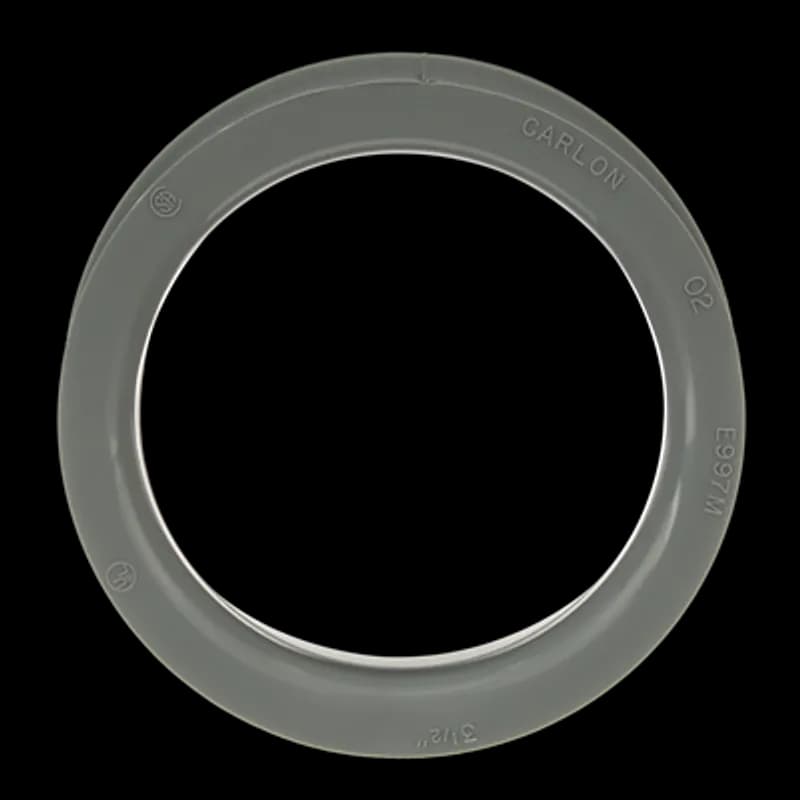

ABB - Installation Products E997M - Bell End, Size 3-1/2 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit
More images
ABB - Installation Products

E997M

UPC: 034481061496

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 40

Multiplier: 40

*Contact for lower quantities*

Overview

The ABB E997M Bell End is a robust PVC fitting engineered for secure conduit terminations. Designed for use with both Schedule 40 and Schedule 80 conduit systems, this 3-1/2 inch bell end ensures reliable performance in demanding industrial and commercial electrical applications. Its durable PVC construction in a neutral gray color provides excellent corrosion resistance and longevity. The precise design of the E997M facilitates a watertight and secure connection, crucial for protecting electrical systems from environmental ingress. This fitting is an essential component for electrical contractors and maintenance professionals seeking dependable solutions for conduit entry points and transitions. Compatible with a wide range of conduit types, the ABB E997M offers a cost-effective and efficient method for completing conduit runs, ensuring compliance with industry standards and maintaining the integrity of electrical installations. Its straightforward installation process minimizes labor time and complexity.
  • 3-1/2 Inch Bell End fitting for conduit termination
  • Constructed from durable PVC material
  • Gray color for standard industrial applications
  • Compatible with Schedule 40 and Schedule 80 conduit
  • Ensures secure and reliable conduit connections

Specifications

Color
Gray
Length
2.135 in
Length
54.229 mm
Material
PVC
Material Quality
Polyvinyl Chloride (PVC)
Size
3-1/2 in
Type
Rigid Non-Metallic Conduit Fittings & Accessories
Width
4.598 in
Width
116.7892 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.240 L
Package Weight (Metric)
0.109 kg
Bell End, Size 3 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit, Pack of 10

E997L-CAR

Bell End, Size 3 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit, Pack of 10
100mm PVC wiring duct cover (grey color)

1SET411205R0000

100mm PVC wiring duct cover (grey color)
Panduct solid wall raceway type FS and type D wiring duct wire retainer, 1.00", 1.50", 2.00" duct width, PVC, silver, 100 pc. package quantity.

WRS-A-C10

Panduct solid wall raceway type FS and type D wiring duct wire retainer, 1.00", 1.50", 2.00" duct width, PVC, silver, 100 pc. package quantity.
Box Adapter, Size 1/2 Inch, Length 2-7/32 Inches, Outer Diameter 0.840 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80

E996D

Box Adapter, Size 1/2 Inch, Length 2-7/32 Inches, Outer Diameter 0.840 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80
End Bell, Size 8 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit

E997T

End Bell, Size 8 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit
Offset, Size 3/4 Inch, Offset 0.250 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit, Pack of 14

E994ER-CTN

Offset, Size 3/4 Inch, Offset 0.250 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit, Pack of 14
Offset, Size 3/4 Inch, Offset 0.250 Inches, Material PVC, Color Grey, For use with Schedule 40 and 80 Conduit, Pack of 14

E994ERL

Offset, Size 3/4 Inch, Offset 0.250 Inches, Material PVC, Color Grey, For use with Schedule 40 and 80 Conduit, Pack of 14
Bell End, Size 6 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit

E997R

Bell End, Size 6 Inches, Material PVC, Color Gray, For use with Schedule 40 and 80 Conduit

Frequently Asked Questions

What is the size of the E997M bell end?

The E997M bell end is 3 1/2 inches in size.

What standards does the E997M conform to?

The E997M conforms to NEMA TC-9 standards.

What are the installation requirements for the E997M?

The E997M must be installed in accordance with applicable national and local electrical codes.

What is the outer diameter of the E997M?

The outer diameter of the E997M is 4.598 inches.

What materials are used in the E997M product?

The E997M is made of rigid PVC with a gray finish.

Is the E997M UL Listed or CSA Certified?

The E997M is not UL Listed or CSA Certified.

What precautions should be taken during installation?

Ensure installation complies with applicable national and local electrical codes.

What is the purpose of the E997M bell end?

The E997M is used to provide smoother, safer cable entrance to PVC conduits.

What is the maximum temperature rating for the E997M?

The document does not specify a maximum temperature rating for the E997M.

What is the weight of the E997M bell end?

The document does not provide the weight of the E997M bell end.
